Overview

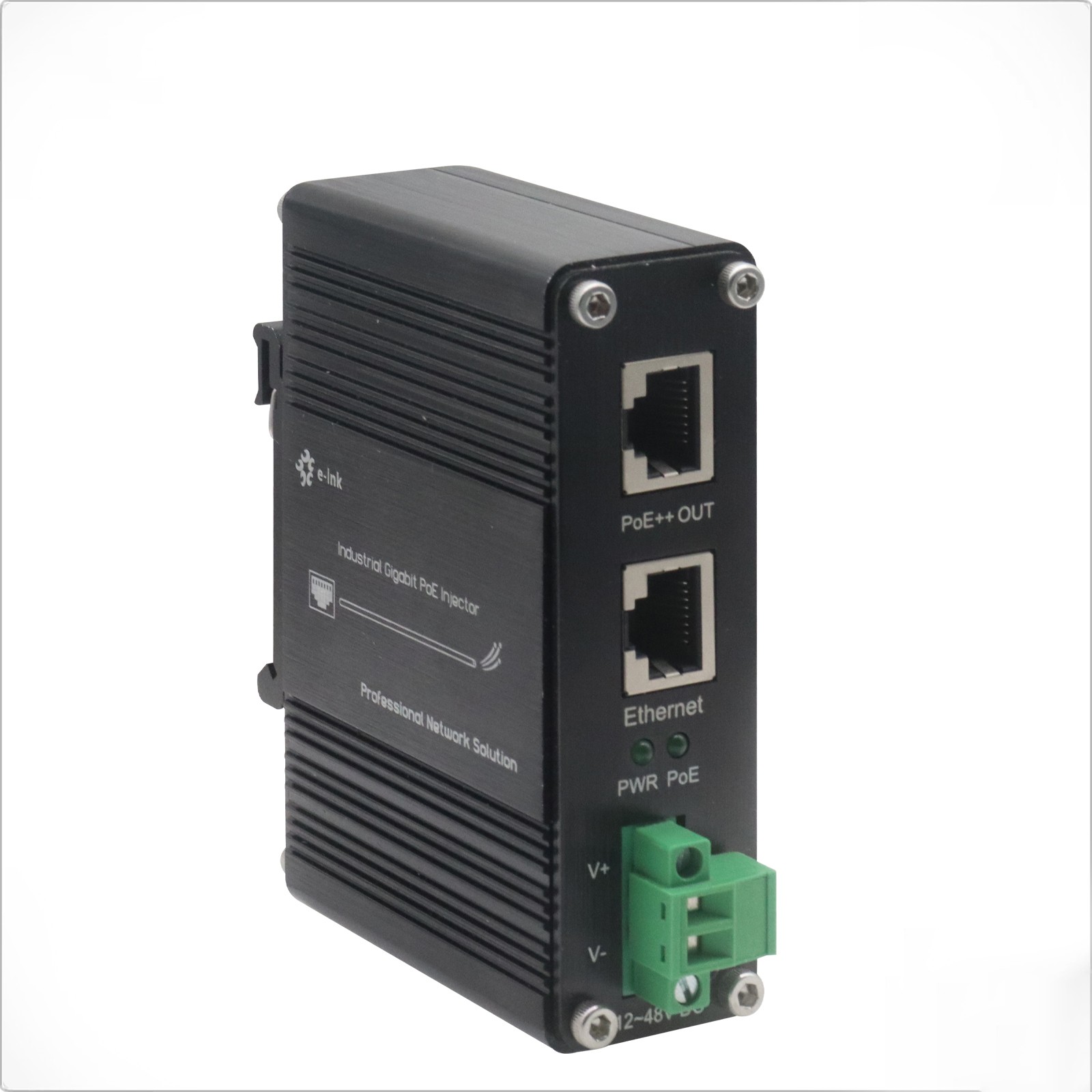

The LNK-INJ301-90 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Features

►1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

►Support 95W LTPoE++ Power Sourcing Equipment

►Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

►Support 10/100/1000Base-TX

►Extensive LED indicators for PoE diagnostics

►12~48V DC wide range power input with power booster function

►Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

►Supports DIN-Rail and Wall-mount installation

►Environmentally Hardened -40°C to 80°C

Package PoE Injector
