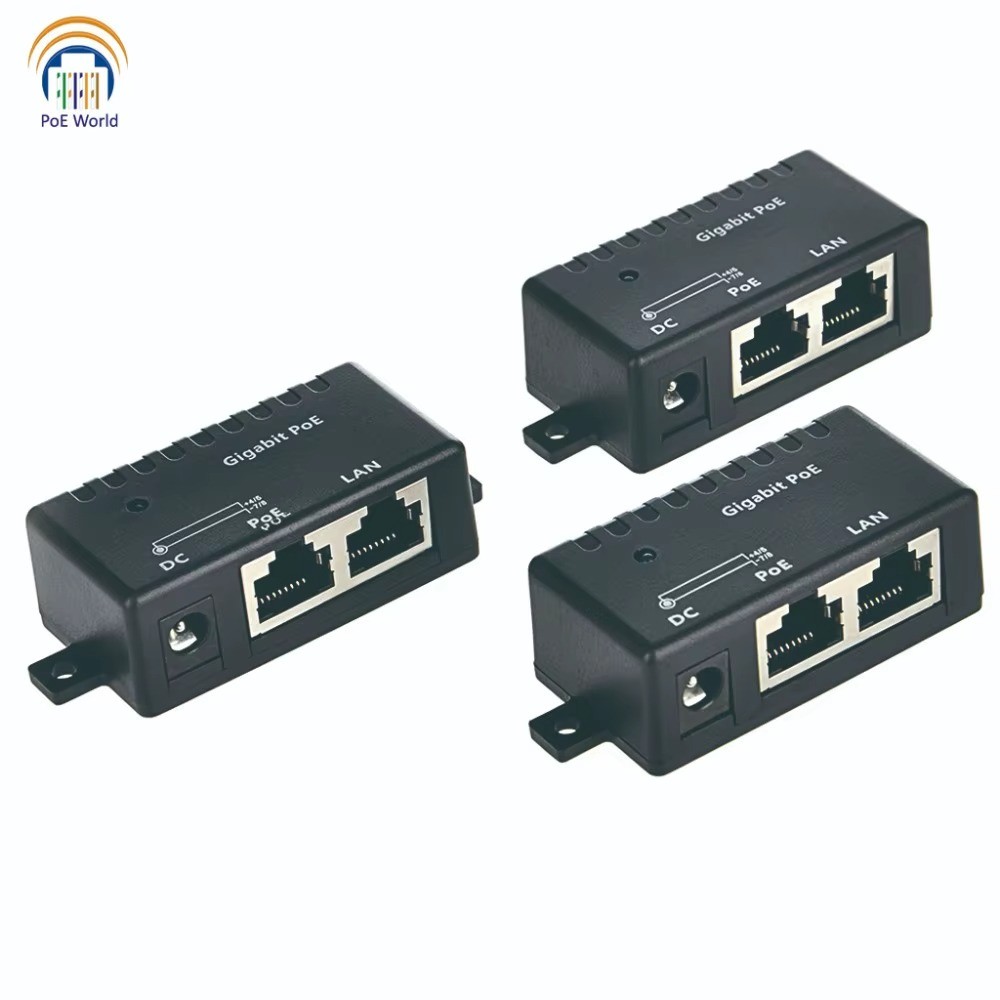

PoE World Gigabit Passive PoE Injector & Splitter

Wall Mount Network Patch Panel with 2.1 x 5.5mm DC Connector

⚠️ This listing is for the injector/splitter unit only. The DC power supply and Ethernet cables are not included.⚡ Overview

This Gigabit Power over Ethernet injector lets you power IP cameras, VOIP phones, wireless access points and other PoE devices remotely, removing the need for a local 110V transformer at the far end. It uses 802.3af Mode B wiring (pins 4/5 positive, 7/8 ground shared with data), the same method used by many popular networking brands to centralize power at one location.

Connect the DC power supply that matches your device's voltage requirement (commonly 24V or 48V) and run power over the same cable as your data, reducing cable clutter and allowing you to reboot connected devices from one central point.

🔧 FeaturesGigabit Data Rate

Supports full 10/100/1000Mbps Ethernet speeds with no bandwidth loss through the injector.

Mode B Wiring

802.3af Mode B operation: pins 4-5 (+) and pins 7-8 (-), compatible with standard PoE and non-PoE switches.

Wide Voltage Range

Works with a 12V to 56V DC power supply (sold separately) via a standard 2.1 x 5.5mm connector.

Wall-Mountable Design

Compact 76 x 29 x 22mm housing with shielded RJ-45 ports, ideal for discreet installation near cameras or access points.

📐 SpecificationsBrandPoE WorldModelGPOE-1-WMData Rate10/100/1000Mbps (Gigabit)PoE Standard802.3af Mode BPower Connector2.1 x 5.5mm DCInput Voltage Range12V to 56V DC (power supply not included)Ports1x Shielded RJ-45 LAN, 1x Shielded RJ-45 LAN+PoEMountingWall MountDimensions76 x 29 x 22mmColorBlackOperating Temperature0 to 65°CApplicationIP Cameras, VOIP Phones, Wireless Access Points📷 Product Images❓ FAQDoes this include the power adapter?

No. This listing includes only the PoE injector/splitter unit. A compatible 12-56V DC power supply with a 2.1 x 5.5mm connector must be purchased separately based on your device's voltage requirement.

What PoE standard does this support?

It operates using 802.3af Mode B wiring, compatible with most PoE and non-PoE Ethernet switches.

What devices can I power with this?

It's ideal for IP cameras, VOIP phones, and wireless access points that accept passive PoE power.

Does it support Gigabit speeds?

Yes, data runs at full 10/100/1000Mbps through the injector.
