Pre-Configured Ubiquiti airMAX NanoStation 5AC Loco Wireless Bridge Kit (Complete Pair)
True Plug-and-Play Point-to-Point Network Extension — Pre-Paired, Tested, and Ready to Deploy
Extend your home or business network to a detached garage, workshop, barn, guest house, or remote camera location without trenching ethernet cables. This complete kit includes two (2) Ubiquiti airMAX NanoStation 5AC Loco radios that have been fully bench-tested, updated to the latest stable airOS firmware, and pre-configured to communicate instantly out of the box.
Pre-Configuration Details (Plug & Play)
Pre-Paired Link: Unit A is set as Access Point (PtP); Unit B is set as Station (PtP).
Transparent Layer-2 Bridge: Operates as a virtual wireless ethernet cable. Passes DHCP, VLANs, and local subnets seamlessly from your main router.
Pre-Set Security: Secured out of the box with a unique WPA2-AES pre-shared key (provided on documentation card).
Management Access: Static management fallback IPs assigned (192.168.1.21 for Unit A; 192.168.1.22 for Unit B) to allow future configuration without losing device access.
Firmware: Flashed to the latest official Ubiquiti airOS release (v8.7.12) with management Wi-Fi enabled for easy mobile alignment via the UISP app.

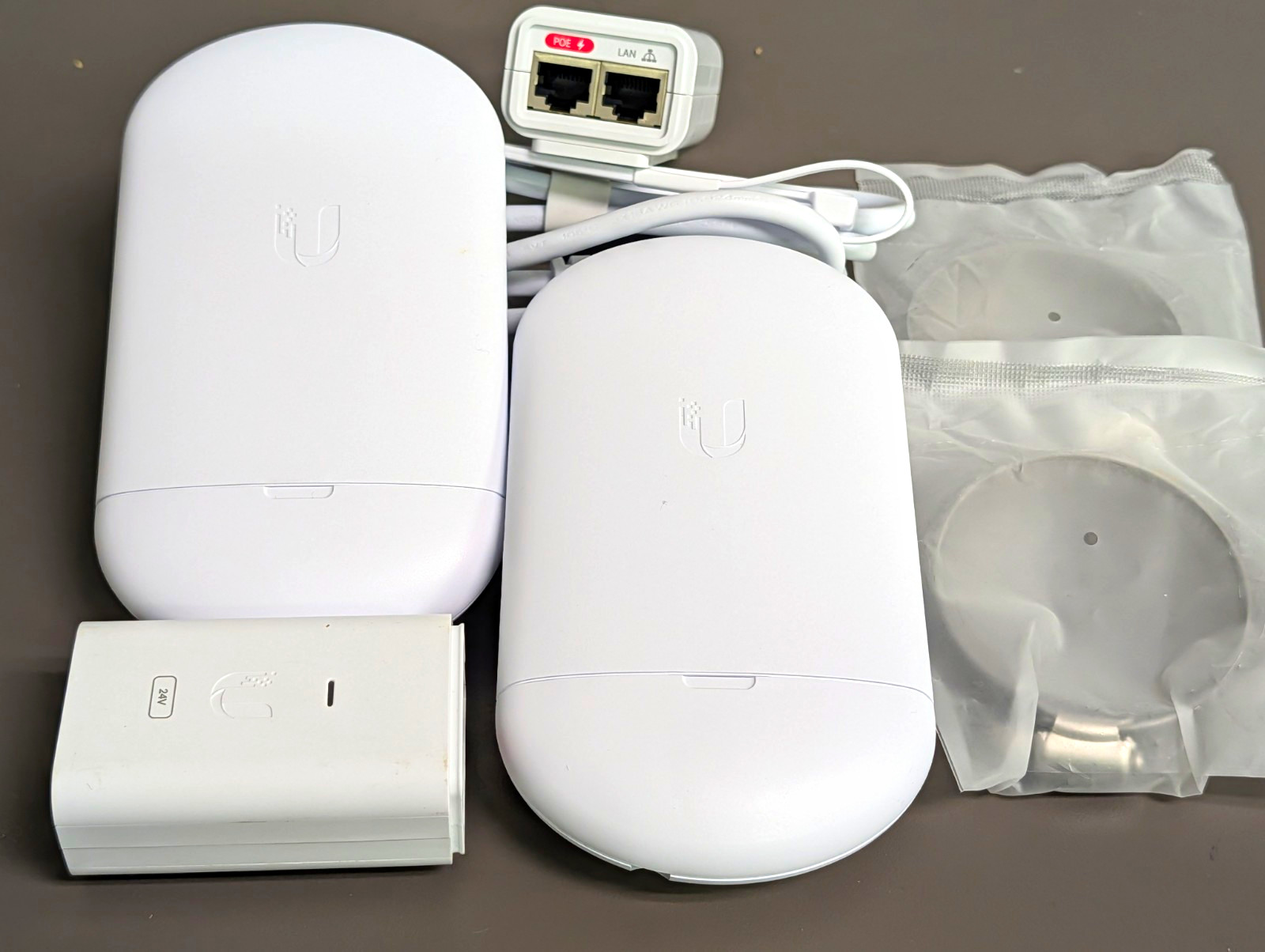

What’s Included
2x Ubiquiti airMAX NanoStation 5AC Loco (Loco5AC) Radios
2x 24V 0.5A Gigabit Passive PoE Injectors (Pairs 4, 5+; 7, 8-)
2x AC Power Cords (Standard US 3-Prong)
4x Heavy-Duty UV-Resistant Zip Ties for mast/pole mounting
2x Pipe Clamp
1x Quick Setup Guide & Port-by-Port Wiring Diagram
(Note: Outdoor-rated shielded Cat5e/Cat6 patch cables from your network devices to the PoE injectors are required and not included).
Technical Specifications
Operating Frequency: 5 GHz UNII-1 / UNII-3 (Clean, low-interference spectrum)
Throughput: 450+ Mbps real TCP/IP throughput
Antenna Gain: Integrated 13 dBi directional antenna with dual-polarity isolation
Network Interface: 1x 10/100/1000 Mbps Gigabit Ethernet RJ45 port per radio
Power Method: 24V Passive Gigabit PoE (Included injectors)
