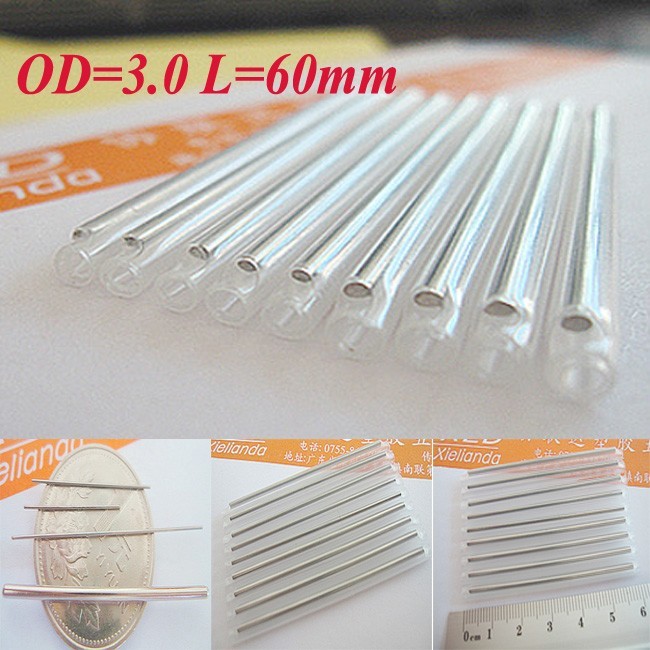

GT - Fiber optic fusion splice sleeve OD3.0mm 60mm - 5,000pcs.
On this sale we offer you Premium Quality fiber optic fusion splice protection sleeves, diameter after shrinkage 3.0mm , length: 60mm,The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assembly are the basic advantages of this solution.
We offer a good product in very good price for 5,000pcs on this sale the sleeve GT-60A. Don't hesitate to order one pack 5,000pcs. We guarantee, next time you order more.
Insure every shipment!
After buying send us information what type you need.
Product features
1. Keep optical transmission performance of optical fiber
2. Provide safe protection to optical fiber splicing
3. Airproof configuration keeping the splice point's good resistance of humidity and temperature
4. Clear sleeve make it easy to detect splice before shrinkage
5. Easily use and avoid any damages to the optical fiber during installation
6. Operating temperature ranging from -45°C to 100°C
7. Minimum fully recovery temperature : 120 °C
8. Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
9. Hot melt adhesive tube made from polyolefin Ethyl Vinyl Acetate copolymer bonds both to the fiber and heat shrinkable outer tube to effectively encapsulate fusion splice.
10. Long term proven performance, exceeds industry standards with satisfied customer
Product specifications
Outer diameter after recovery: OD3.0 mm +/- 0,1mm
Hole diameter before recovery: OD1,2 mm
Pin diameter: OD 1.5 mm
Minimum installation temperature: 110°C
Max installation time: 60 seconds
Standard color: Clear
Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
RoHS compliant
Packing: 100 pcs per bag (Others for special order)
Series GT
Code:GT-XX
Fiber Optic Fusion Splice Protection Sleeves
Series GT
Fiber size: 250/900
Part No.
L
Lp
D
Dp
d
Stock
GT-60A
60
54
3.0+/-0.1
1.5
1.3
√
GT-60a
60
54
2.8+/-0.1
1.5
1.3
GT-55A
55
50
3.0+/-0.1
1.5
1.3
GT-50A
50
45
3.0+/-0.1
1.5
1.3
GT-45A
45
40
3.0+/-0.1
1.5
1.3
GT-40A
40
35
3.0+/-0.1
1.5
1.3
GT-60B
60
54
2.5+/-0.1
1.2
1.5
√
GT-60b
60
54
2.7+/-0.1
1.2
1.5
GT-55B
55
50
2.5+/-0.1
1.2
1.5
GT-50B
50
45
2.5+/-0.1
1.2
1.5
GT-45B
45
40
2.5+/-0.1
1.2
1.5
√
T-40B
40
35
2.5+/-0.1
1.2
1.5
√
*Other size on special order. All dimensions in mm.
L - Length after recovery
Lp - Pin length
D - Outer diameter after recovery
Dp - Pin diameter
d - Hole diameter before recovery
XX - Color
√- Stock
- Production
