RAM X-Grip Large Phone Mount with ATV/UTV RAM Products!

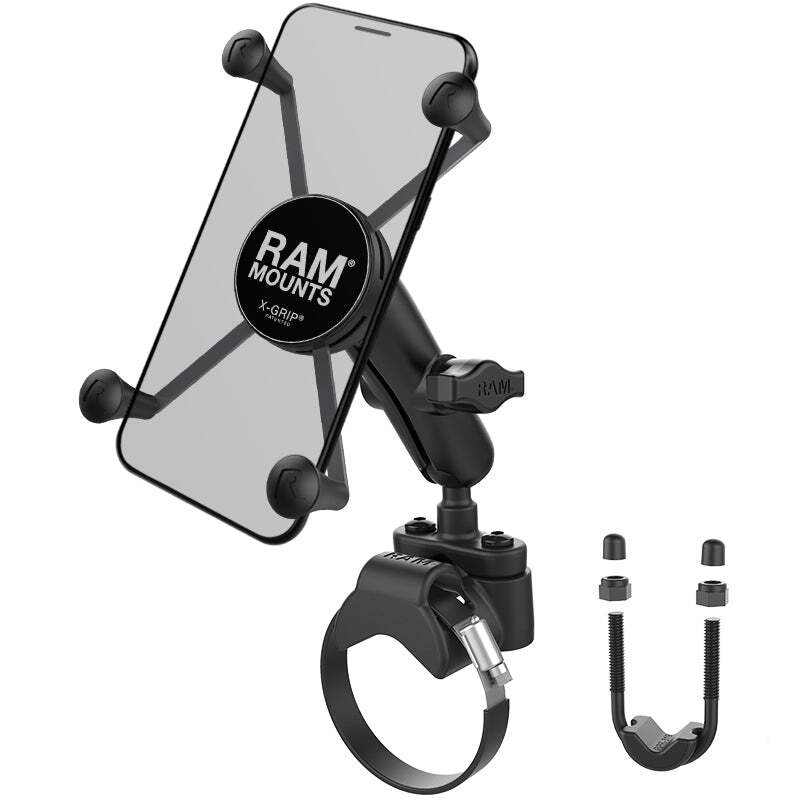

The RAM-B-231-2-UN10 consists of a steel strap base, stainless steel u-bolt base, double socket arm and universal spring loaded X-Grip cradle for large phones and phablets. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.hardware included (1) Optional Tether(1) Glue Tube for Rubber Caps(1) Strap Clamp Adapter(2) 1/4 INCHES -20 x 1 INCHES Machine Screws(2) 1/4 INCHES -20 Nylock Nuts(1) Zinc Worm Drive Strap Clamp(1) 6 INCHES Rubber Strip(1) 1/4 INCHES -20 U-Bolt for .5 INCHES - 1 INCHES Rails(2) Rubber Caps(1) U-Bolt Spacerholder dimensions Width Range: 1.75 INCHES - 4.5 INCHES Depth Range: .875 INCHES maxclamp range U-Bolt: .5 INCHES - 1 INCHES diameterStrap Clamp: 1.57 INCHES - 3.15 INCHES diametersocket to socket length 3 INCHES ball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumHigh strength compositeStainless steelpackaging type Retail BoxWeight 1.22 lb Additional Information Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone camerashardware included
(1) Optional Tether(1) Glue Tube for Rubber Caps(1) Strap Clamp Adapter(2) 1/4 INCHES -20 x 1 INCHES Machine Screws(2) 1/4 INCHES -20 Nylock Nuts(1) Zinc Worm Drive Strap Clamp(1) 6 INCHES Rubber Strip(1) 1/4 INCHES -20 U-Bolt for .5 INCHES - 1 INCHES Rails(2) Rubber Caps(1) U-Bolt Spacerholder dimensions
Width Range: 1.75 INCHES - 4.5 INCHES Depth Range: .875 INCHES maxclamp range
U-Bolt: .5 INCHES - 1 INCHES diameterStrap Clamp: 1.57 INCHES - 3.15 INCHES diametersocket to socket length
3 INCHES ball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumHigh strength compositeStainless steelpackaging type
Retail BoxWeight
1.22 lb
