RAM-GDS-DOCK-SAM62CDU RAM Mounts GDS® Tough-Dock™ + Single USB-A for Samsung Tab Active5 & 3
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.
BALL FOR BACK OF CRADLE IS SOLD SEPARATELY
SAMSUNG DEVICE IS NOT INCLUDED
* INTELLISKIN NEXT GEN REQUIRED AND SOLD SEPARATELY *
OVERVIEW:

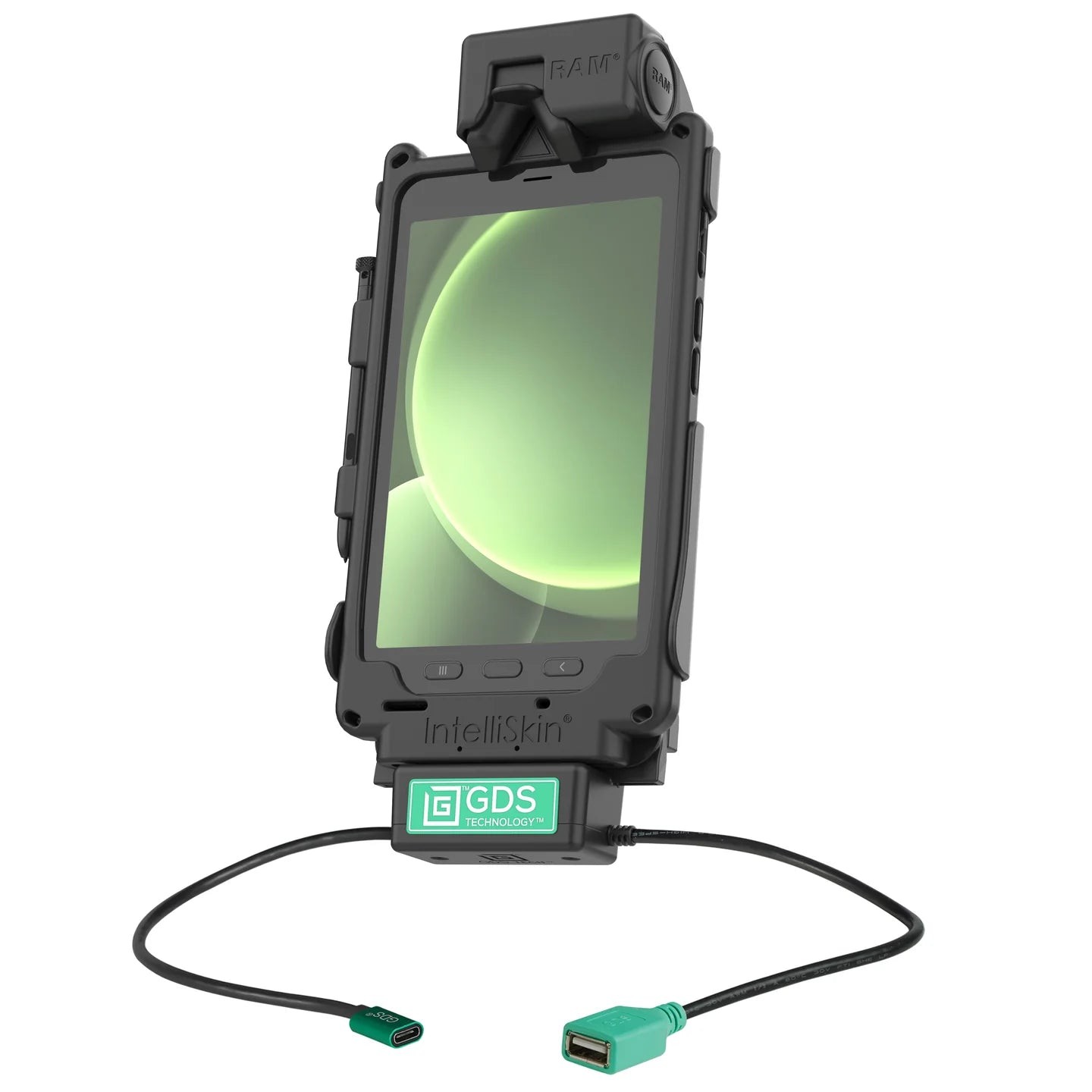

This GDS ® Tough-Dock ™ vehicle dock is designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin ® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS ® Tough-Dock ™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS ® Tough-Dock ™ is compatible with RAM ® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS ® Tough-Dock ™ is backed by a 3-year warranty. Always Protected. Always Connected. ®
FEATURES:
-
Spring-loaded vehicle dock featuring GDS ® Technology ™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
-
Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin ® Next Gen protective sleeve
-
Power delivered via USB-C connector; connect a single input device via USB-A connector
-
RAM ® Mounts Compatible ™ and compatible with the GDS ® Hand-Stand ™ Hand Strap and Kickstand attachment
-
Backed by a 3-year warranty
HARDWARE INCLUDED: (4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) USB Type-C to Type-A Cable
HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496" materials: High strength composite
PACKAGING TYPE: Poly Bag
OUTPUT VOLTAGE: 5V - 12V @ 3A max
Peripheral: 5V @ 900mA max
POWER OUTPUT: 15W
INPUT CONNECTOR: USB Type-C
USB Type A for 1 Peripheral
OUTPUT CABLE LENGTH: 215mm
PERIPHERAL OUTPUT" 500mA
WARRANTY:
3 year warranty
WEIGHT:
1.3 lb
ADDITIONAL INFORMATION:
IntelliSkin ® not included. This product will not support the "No Battery Mode" function of the Tab Active3.
