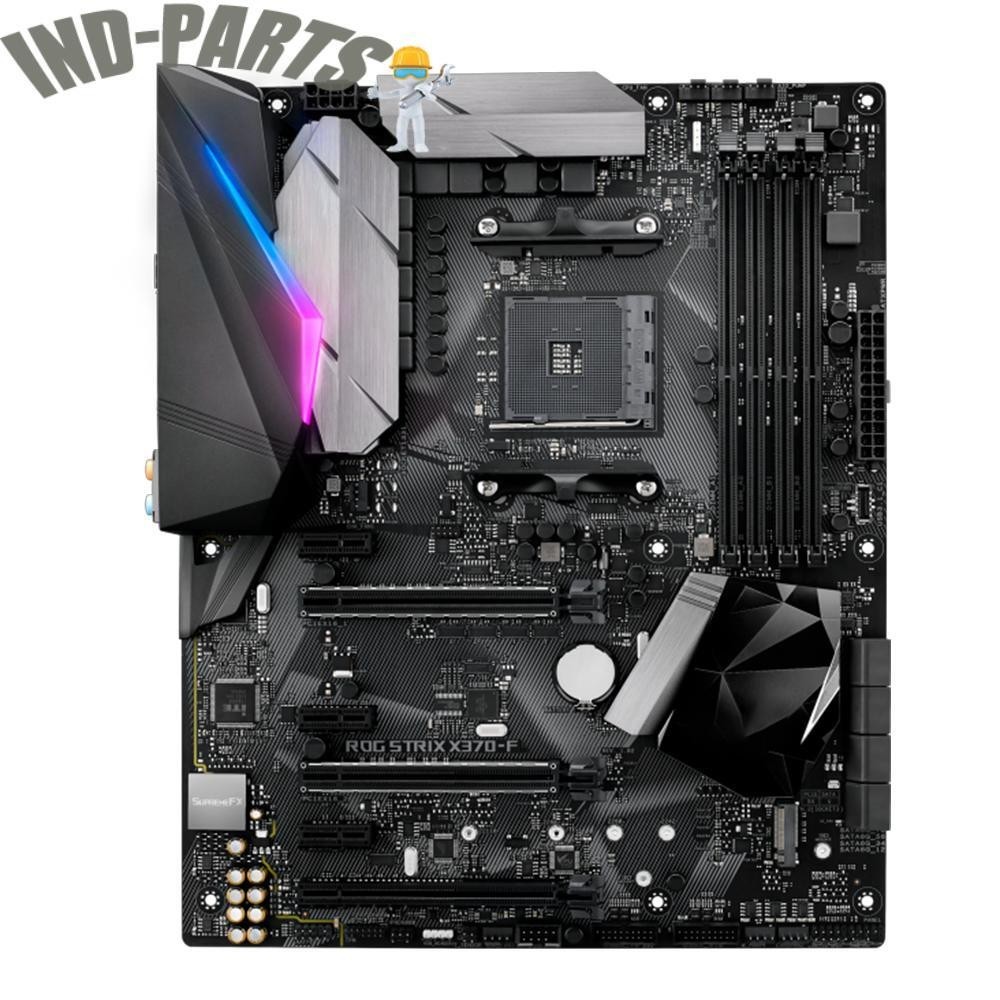

Product Description Computer Motherboard for ASUS ROG Strix X370-F AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors

Supports AM4 Socket 14nm CPU

Supports CPU up to 8 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU

Multi-VGA output support : HDMI/DisplayPort ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Maximum shared memory of 2048 MB (for iGPU Support：

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 3-Way CrossFireX™ Slots：

AMD X370 chipset

1 x PCIe 2.0 x16 (max at x4 mode) *1

3 x PCIe 2.0 x1

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors

1 x PCIe 3.0/2.0 x16 (x8 X370 chipset :

AMD 7th Generation A-series/Athlon™ Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

8 x SATA 6Gb/s port(s),

Support Raid 0, 1, I211-AT, 1 x Gigabit LAN LANGuard

ROG GameFirst Sonic Studio III

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

- Dual Headphone Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- SupremeFX Shielding Technology

- Supports up to 32-Bit/192kHz playback *2

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- Sonic Radar Ports：

2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A + USB X370 chipset :

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :

6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)

1 x USB 3.1 Gen 2 front panel connector port(s)

ASMedia® USB 3.1 Gen 2 controller :

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

4 x USB 2.0 port(s) (2 at back panel, black, 2 at Exclusive Features：

ROG RAMCache II

ROG CloneDrive

GameFirst IV

ROG Features：

- ASUS Q-LED (CPU, DRAM, Boot Device LED)

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports

5-Way Optimization by Dual Intelligent Processors 5

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app Auto Tuning, TurboV, GPU Boost

Gamer´s Guardian:

- DRAM Overcurrent Protection

- Stainless Steel Back I/O

- Highly Durable components

- Digi+ VRM

- SafeSlot

ASUS EPU :

- EPU

AURA :

- Aura Lighting Control

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design :

- ASUS Q-Shield

- ASUS Q-Slot

- ASUS Q-DIMM

Gaming Aesthetics :

- 3D printing friendly

- AURA-RGB I/O x USB 3.1 Gen 1 ,

2 x USB 3.1 Gen 2 Type-A + USB Type-CTM,

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio I/O x RGB Header(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x USB 3.1 Gen 2 front panel connector

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x TPM connector(s)

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x W_PUMP+ connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

1 x System panel Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory 2.0, DMI 3.0, WOL by PME, Utilities

Anti-virus software (OEM 10 Form Factor：

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm PCIEX16_3 Socket shares bandwidth witch PCIEX1_2 and PCIEX1_3

*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

*3 ROG GameFirst IV is only available for Windows® 10 About Us
