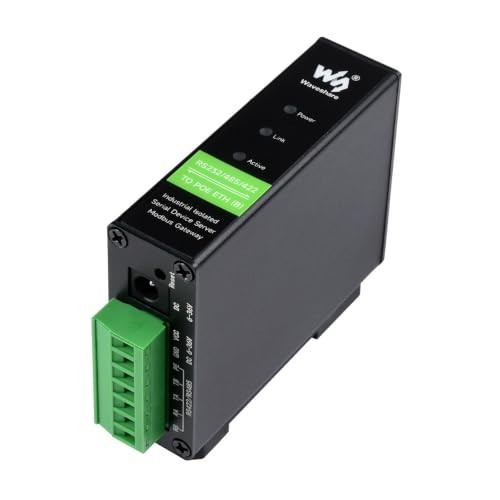

RS232/485/422 to RJ45 Ethernet Module

Transform Your Industrial Connectivity

Features at a Glance:

• Multi-functional device serving as a serial server, Modbus gateway, MQTT gateway, and RS485 to JSON converter.
• Incorporates RS232/485/422 and Ethernet port with optional Power over Ethernet (PoE) functionality.
• Utilizes a DC power port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminals ensuring power input flexibility.
• Compact design with rail-mount support, making installation effortless and space-efficient.
• Supports IEEE 802.3af PoE standard; wide voltage range input from 6-36V DC for maximum compatibility.

Versatile Communication Options:

• Flexible operation modes: TCP server, TCP client, UDP mode, and UDP multicast ensure adaptability to various network architectures.
• Facilitates seamless communication between MQTT/JSON and Modbus protocols.
• Multi-host roll polling supports individual identification and response of different network devices eliminating crosstalk issues.

User-Friendly Features:

• Customizable heartbeat and registration packets simplify cloud communication and device identification.
• Supports NTP protocol for accurate network time synchronization, enhancing data reliability.
• Ideal for applications in data acquisition, IoT gateways, safety and security IoT, and intelligent instrument monitoring.

Why Choose Our RS232/485/422 to RJ45 Ethernet Module?

Elevate your industrial communication with a device designed for efficiency and versatility. This RS232/485/422 to Ethernet Module is not just an ordinary gateway—it's a robust solution for your data acquisition needs. With its compact design and multi-functional capabilities, you can effortlessly upgrade your industrial network.

Don't settle for less in your industrial applications. Choose our top-tier module for reliable and efficient communication, and transform the way you connect and control your devices!

Type: Server
