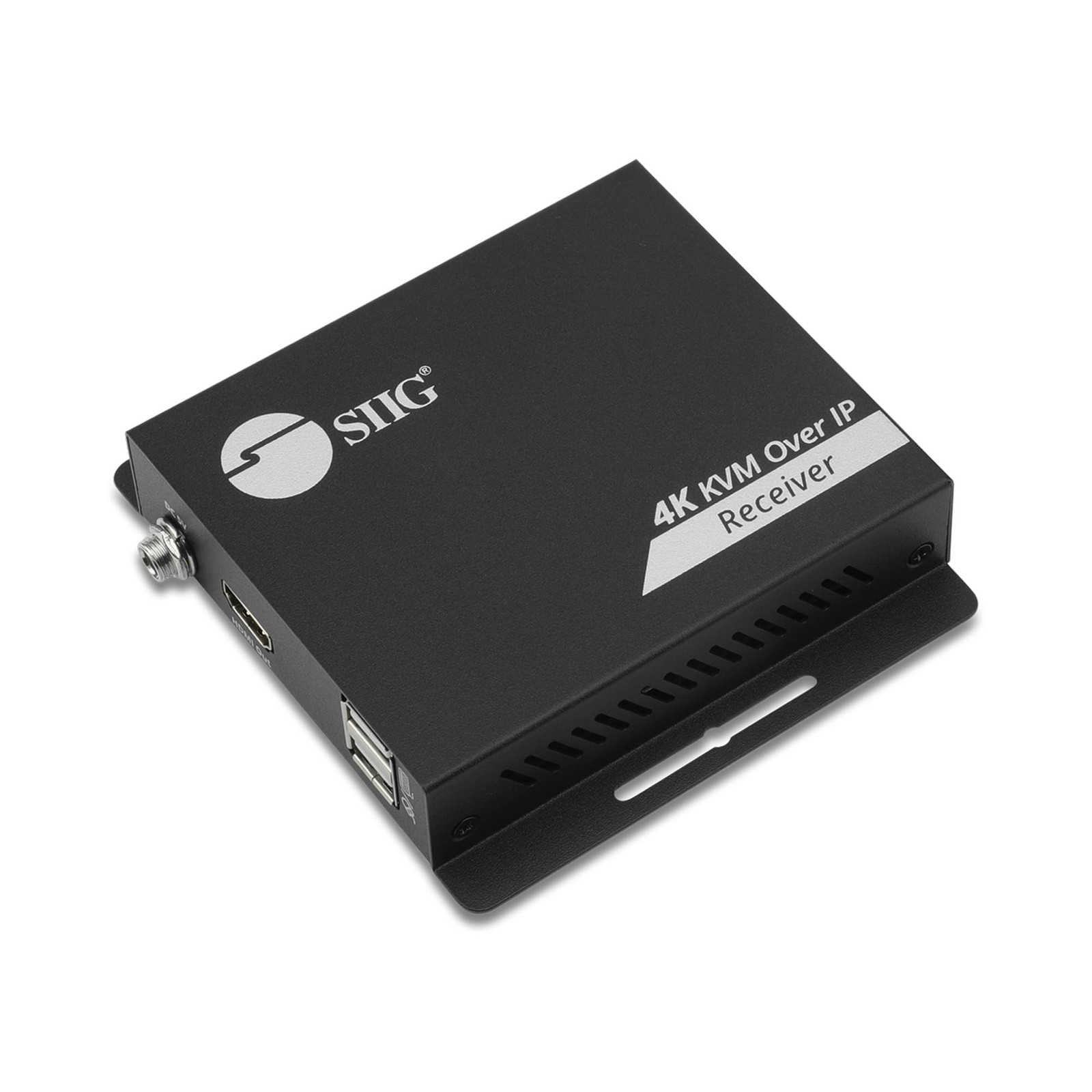

SIIG HDMI 4K30Hz KVM Over IP Extender - RX (CEH3KE01S1) SIIG HDMI 4K30Hz KVM Over IP Extender - RX (CEH3KE01S1)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: HDMI 4K30Hz KVM Over IP Extender - RX Power Adapter DC 5V/1A User Manual
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
SIIG 120M HDMI 4K30Hz KVM Over IP Extender RX
Receiver unit for CE-H27R11-S1 extends 4K at 30Hz HDMI, audio, and USB signals up to 394ft over Cat6/7. Features HDCP 1.4, downscaler, low-latency transmission, and plug-and-play setup. Ideal for one-to-many applications in AV, control, and remote access environments.
Flexible Distribution with Built-In Downscaling
Supports direct one-to-one HDMI extension or scalable one-to-many distribution through a standard Gigabit network switch for flexible multi-display setups. The built-in downscaler converts 4K signals to 1080p at the receiver end, ensuring seamless compatibility with mixed-resolution displays. Additional receiver unit (part CE-H3KE01-S1) sold separately.
Remote KVM Control
Supports remote KVM access for servers, learning stations, surveillance systems, and meeting rooms. Enables HDMI extension, multi-user control, and real-time operation-ideal for IT, education, command centers, and corporate environments.Video
HDMI
1x output
Bandwidth
3.4Gbps / 340MHz (10.2Gbps all channels)
Standard
HDCP 1.4 compliant
Resolution
4K30Hz, 1080p, 1080i, 720p, 576p, 480p
Transmission Distance
Up to 120m for 4K 30HzAudio
Audio Format
PCM 2 / 5.1 / 7.1chPower Adapter
Input
100-240V AC, 50/60 Hz
Output
DC 5V/1A
UL Listed
E470034 / Level: VIInterface
1x 19-pin HDMI, Type A, female, output
1x 8-pin RJ45, input
2x 4-pin USB Type-A, female, connect to Keyboard / Mouse
1x K/M switch button
1x Reset button
1x Power jackPackage Contents
1x HDMI 4K30Hz KVM Over IP Extender - RX
1x Power adapter DC 5V/1A
1x User manualCertifications/Standards
FCC, CE, RoHSCountry of Origin
ChinaProduct
Color
Black
Housing Material
MetalEnvironmental Conditions
Operating Temperature
32o to 122o F
Storage Temperature
14o to 158o F
Relative Humidity
5 to 90% RH (non-condensing)Item Dimension (L"xW"xH")
9 x 3 x 8
Weight
2 lbs
Warranty Information
2 years limited SpecificationPower DescriptionInput Voltage Range100-240V ACFrequency
Input Voltage
Physical CharacteristicsReceiver Width4.09"Receiver Height0.91"Product ColorBlackReceiver Depth4.41"Receiver Weight (Approximate)7.52 ozColor FamilyBlackWarrantyLimited Warranty2 YearInterfaces/PortsNumber of USB Ports2Network (RJ-45)YesNumber of HDMI Ports1Host InterfaceHDMIUSBYesHDMIYesNumber of Network (RJ-45) Ports1VideoMaximum Video Resolution3840 x 2160Graphic Mode4K UHDGeneral InformationBrand NameSIIGMarketing Information HDMI 4K30Hz KVM over IP Extender - RX is designed to receive high-definition video, audio and USB signals over long distances via standard Cat 6 / 7 network cable. It allows seamless remote control of computers, servers, and media devices with a maximum range of 394 feet (120 meters). HDCP 1.4, Downscaler, Low-latency signal transmission, plug-and-play installation, additional receiver for CE-H27R11-S1 kit More from the Manufacturer Product TypeKVM Extender ReceiverProduct NameHDMI 4K30Hz KVM Over IP Extender - RX - One to Many - Downscaler - Low-latencyManufacturerSIIG, IncManufacturer Part NumberCE-H3KE01-S1TitleProduct TitleSIIG HDMI 4K30Hz KVM Over IP Extender - RX (CEH3KE01S1)Technical InformationMaximum Operating Distance394 ftData Link ProtocolsTCP/IPDevice TypeKVM ExtenderConnectivity TechnologyWired Shipping
