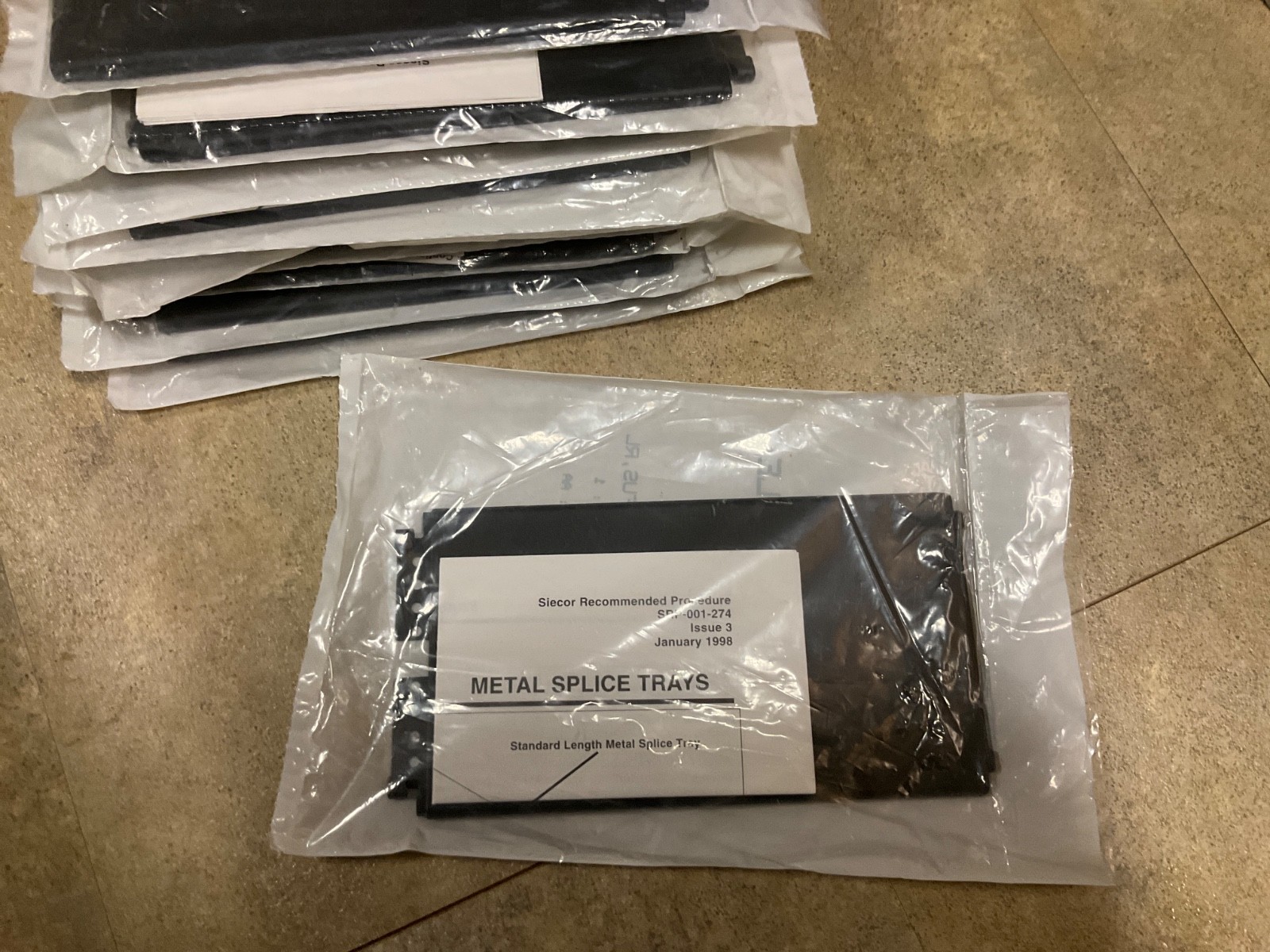

Siecor Corning Fusion Fiber Optic Small Splice Tray M67-068 6 fiber NOS sold ea.
Price: US $39.99
The Siecor Corning Fusion Fiber Optic Small Splice Tray M67-068 is a high-quality patch panel designed for enterprise networking and server applications. This splice tray, made by the reputable brand Corning, is specifically designed for small splicing applications with 6 fibers. It is ideal for maintaining and organizing optical fibers in a professional networking environment, ensuring reliable and efficient data transmission. The tray is compatible with both SM and MM fusion splices, providing versatile options for various networking needs.
This Corning Cable Systems M67-068 Type 2R metallic splice tray is designed for use with CCS interconnection hardware and splice closures. It is designed to hold 6 heat-shrink fusion splice sleeves and consists of a rugged aluminum base and cover. This tray has crimpable metal tabs that provide buffer tube strain-relief. Additional strain-relief points are available for securing buffer tubes or pigtails to the trays using cable ties. Features:
Craft-friendly design
Used for multimode or single-mode systems
Black powder coating for ease of fiber identification and protection
Comes standard with aluminum top
No stress placed on completed splices within tray
Accepts six 60 mm single-fiber heat-shrink fusion splice protection sleeves
Size: 7.3(L) x 3.5(W) x 0.2(D) inch
Metal trays powder coated
Ruggedness and durability
Fibre loop retention
Controls the bend radius
Positive holding action
Maximum splice protection
Applications:
For use with Corning Cable Systems indoor or outdoor splice hardware
Protects and manages fibers and fiber splices
Used at field splice, transition splice, and end splice locations
Product Type (FOH): Splice Trays
Technology: Fusion Splice
Splice Protectors Type: Heat-shrink
Splice Tray Capacity Single Fiber: 6 Splices
Splice Tray Category: 2R
Splice Tray Type: Standard with organizers for heat-shrink fusion splice protectors
