PCIe CLKREQ function (V2.0)

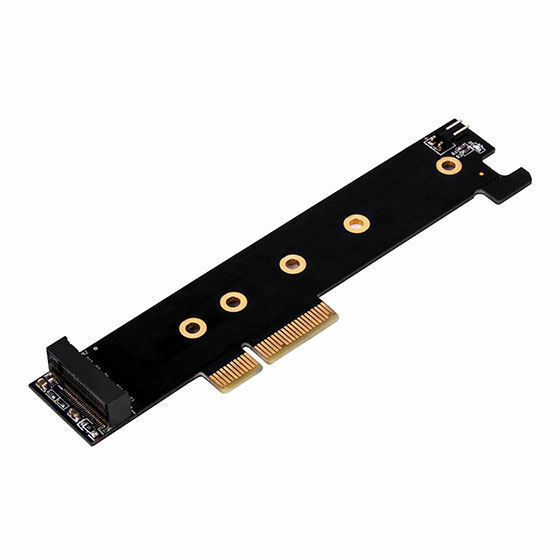

Converts one M.2 port (M key) into one PCIe x 4 interface

? Only 31mm tall when installed, easily fits in 1U chassis

? Built-in LED indicator for showing PCIe NVMe status

? Supports 2230, 2242, 2260, 2280, 22110 length M.2 SSD

? No driver installation required

Model No.SST-ECM26
LED indicatorPCIe M.2 SSD Read / Write LED: Blue blinking
InterfacePCI Express x4
SSD InterfaceM.2 (NGFF)
Module KeyPCIe x 4 NVMe-based M key
Operating system supportMicrosoft Windows 10 (32bit/64bit)/8.1/8/7 (32bit/64bit) or future release version
Mac OS 10.2.8 or above
Linux
Net weight34.15g
Support Length of M.2 SSD30mm, 42mm, 60mm, 80mm, 110mm
Dimension31mm (W) x 10.2mm (H) x 130mm (D)
1.22" (W) x 0.4" (H) x 5.12" Weight and dimensionHeatsink : 22mm (W) x 4.65mm (H) x 100mm (D), 17 gThermal Pad
Thermal conductivity1.5W/m.k
Operating temperature-40 °C ~ 180 °C
Thermal pad thickness0.75mm, 1.5mm
Net Weight and dimensionBlue Pad:20mm (W) x 1.5mm (H) x 700mm (D), 6g
Gray Pad:20mm (W) x 0.75mm (H) x 700mm (D), 2g
