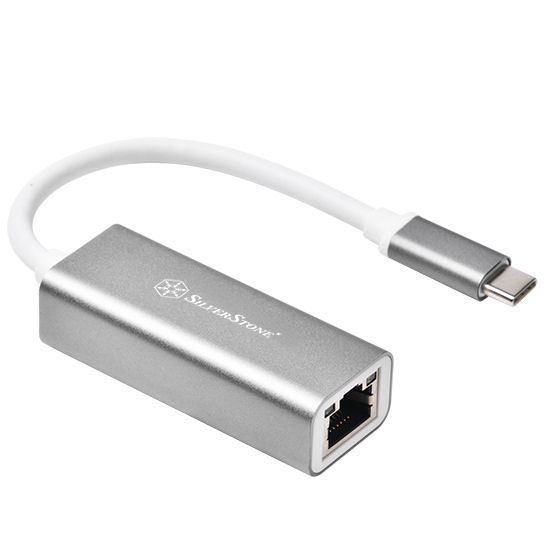

SilverStone’s EP13 is a compact Gigabit Ethernet network adapter in chic and qualified design. It adheres to the latest USB 3.1 Type-C Gen1 specification in providing conversion from USB to a RJ45 network socket that supports 1000Mbps Gigabit high speed transfer capability. EP13 is a great addition to notebook computers such as MacBooks that do not have network socket but needs a physical network connection.

? Latest USB 3.1 Type-C Gen1 interface, compatible with USB 3.0 / 2.0 / 1.1

? Converts to a RJ45 network socket with support for 10/100/1000Mbps

? Supports twisted pair crossover detection and auto-correction (HP Auto-MDIX) technology

? Supports Wake-on-LAN and ”RealWoW” (Wake-on-LAN) technology

Model + AluminumUSB interfaceUSB 3.1 Type-C Gen1 MaleChipsetRealtek RTL8153IEEE StandardSupports full duplex flow control (IEEE 802.3x)
Fully compliant with IEEE 802.3 and IEEE 802.3u
Supports IEEE 802.1P layer 2 priority encoding
Supports IEEE 802.1Q VLAN Tagging
Supports IEEE 802.3az (Energy Efficient Ethernet: EEE)Ethernet portRJ45TOE (TCP Offload Engine)Microsoft NDIS5, NDIS6 checksum offload (IPv4, IPv6, TCP, UDP) and segmentation task-offload (large send v1 and large send v2) support Supports jumbo frame to 9K bytesOperating temperature0? ~ 45?Microsoft AOAC
(Always On Always Connected)Supports 16-set 128-byte Wake-Up frame pattern exact matching
Supports link change wake up
Supports Microsoft WPD (Wake Packet Detection)
Supports protocol offload (ARP & NS)Intel CPPM
(Converged Platform Power Management)Supports L1 with 3ms BESL (USB 2.0)
Dynamic LTM messaging (USB 3.0)
Supports U1/U2 (USB 3.0)
Supports selective suspendOperation Humidity10%RH ~ 85%RHCable length100mmOperating system supportMicrosoft Windows XP / Vista / 7 / 8 /10 (32-bits, 64-bits), or future release versions
Mac OS 10.5 or aboveNet weight25gDimension24mm (W) x 16.5mm (H) x 60.3mm (D)
0.94" (W) x 0.65" (H) x 2.37" (D)
