StarTech 15U 19 Server Rack Cabinet - 4 Post Adjustable Depth [6-32"] Locking Knock Down Enclosure - Mobile w/Glass Door & Casters (241164)" StarTech 15U 19 Server Rack Cabinet - 4 Post Adjustable Depth [6-32"] Locking Knock Down Enclosure - Mobile w/Glass Door & Casters (241164)"End of Life Manual Availability: Yes

EU RoHS Declaration URL: Contents: 15U Server Rack Cabinet - Includes Casters and Leveling feet - 32 in. Deep 2 x Side Panel and Frame 4 x Upper and Lower Beams 1 x Top Panel 2 x Bottom Panel with Cable Management Slot 1 x Bottom Panel (Solid) 1 x Front Door 1 x Rear Door 8 x Plastic Corner Caps 8 x M8-20 Hex Screw 8 x M8 Spring Washer 8 x M4-10 Flat Head Screw 4 x M6-12 Hex Screw 6 x M5-12 Screw 1 - M6 Hex Key 1 x M8 Hex Key 24 x M6-12 Philips Screws 24 x M6 Cage Nuts 24 x M6 Plastic Cup Washers 2 x Caster 2 x Caster with Brake 16 x M6-10 Philips Bolt 4 x Leveling Feet 2 x Door Key 2 x Side Panel Key 2 x Door Hinge Pin 1 x Philips Screwdriver

Environmental Certification: EU RoHS

REACH Declaration URL: Friendly: Yes

REACH free of SVHC: Yes

Assembly Required: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

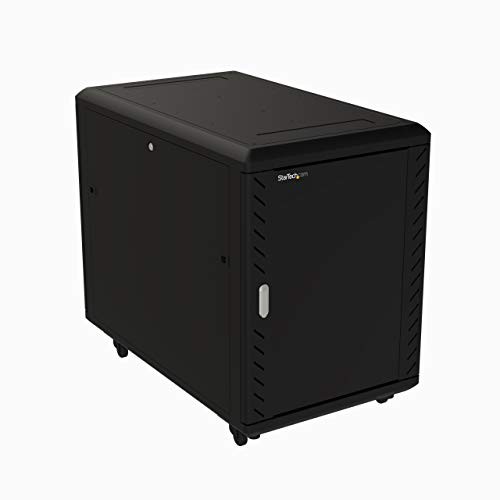

15U 4-POST CABINET: Server rack cabinet features all metal 4 post design with 15U, adjustable depth, casters & levelling feet, removable locking sides/doors & top/bottom/front/rear cable access

STRAIGHT FORWARD ASSEMBLY: Knock down network data equipment enclosure comes in an easy ship flat pack, with clear assembly instructions & supporting videos; includes tools needed for assembly

SERVER READY: EIA/ECA 310-E standard server rack cabinet with internal depth of 39" and an adjustable mounting depth of 6-32" in a compact 39" tall design
This 15U server rack cabinet provides plenty of storage space in a sleek secure cabinet for storing EIA-310 compliant 19 inch rackmount devices such as Dell, HP and IBM servers along with telecommunication, A/V and IT equipment.

Hassle-Free Equipment Installation

This knock down server rack has been engineered with different features that enable you to easily incorporate plenty of equipment. With adjustable mounting rails you can easily change the rail depth to up to 32 in. (813 mm).

Securely Protect Your Equipment

To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The server rack with glass door also has removable side panels with independent lock with quick-release mechanisms that enable you to easily access your network equipment.

Maximum Maneuverability

The server rack with wheels ensures hassle-free access to the rear mounted equipment, while providing ease of mobility around your office or server room. Once the network equipment enclosure is at the intended location you can stabilize it using the built-in leveling feet in floor standing applications. HARDWARE
Frame Type
Enclosed CabinetFront Door Construction
Steel with Glass WindowFront Door Features
Secure Key Lock with Reversible and Removable Front DoorIndustry Standards
EIA/ECA-310-EMounting Hole Types
Square (For Cage Nut)Mounting Rail Profile
G-ShapeRack Type
4-PostRear Door Construction
Steel MeshRear Door Features
Secure Key Lock with Reversible and Removable Back DoorSide Panel Construction
SteelSide Panel Features
Secure Key Lock with Removable Side PanelsSpecial Features
Casters (Included)
Easy Assembly
Grounding Lug(s)
Leveling Feet
U-Markings
Adjustable Mounting RailsU Capacity (Stationary)
1768 lb (800 kg)PHYSICAL Material
SteelPRODUCT MEASUREMENTS
Internal Depth
39.1 in (99.2 cm)Internal Width
23.5 in (59.6 cm)Maximum Mounting Depth
32 in (81.3 cm)Package Contents:

• 15U Server Rack Cabinet - Includes Casters and Leveling feet - 32 in. Deep
• 2 x Side Panel and Frame
• 4 x Upper and Lower Beams
• 1 x Top Panel
• 2 x Bottom Panel with Cable Management Slot
• 1 x Bottom Panel (Solid)
• 1 x Front Door
• 1 x Rear Door
• 8 x Plastic Corner Caps
• 8 x M8-20 Hex Screw
• 8 x M8 Spring Washer
• 8 x M4-10 Flat Head Screw
• 4 x M6-12 Hex Screw
• 6 x M5-12 Screw 1 - M6 Hex Key
• 1 x M8 Hex Key
• 24 x M6-12 Philips Screws
• 24 x M6 Cage Nuts
• 24 x M6 Plastic Cup Washers
• 2 x Caster
• 2 x Caster with Brake
• 16 x M6-10 Philips Bolt
• 4 x Leveling Feet
• 2 x Door Key
• 2 x Side Panel Key
• 2 x Door Hinge Pin
• 1 x Philips Screwdriver

SpecificationPhysical CharacteristicsProduct Material

Form FactorFloor StandingWeight (Approximate)127.87 lbRack Width19"Length39.4"Product ColorBlackRack Depth32"Static/Stationary Weight Capacity1763.70 lbHeight31.4"Color FamilyBlackWidth23.6"Rack Height15UWarrantyLimited WarrantyLifetimeGeneral InformationBrand Name
