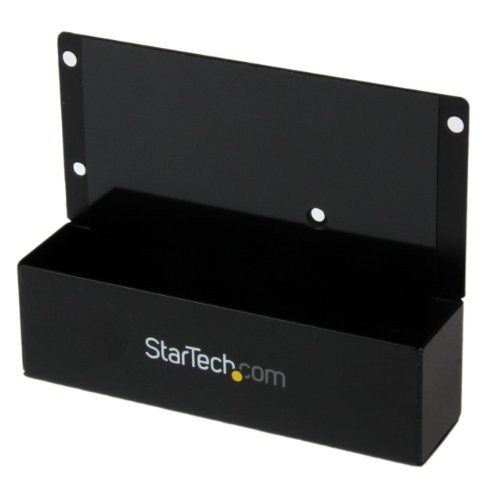

StarTech SAT2IDEADP SATA to IDE Hard Drive Adapter
Price: US $47.11
StarTech SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks - Storage Bay Adapter - 1 x 3.5 - Internal - IDE StarTech SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks - Storage Bay Adapter - 1 x 3.5 - Internal - IDE

International Customers: All electronic products are packaged for sale in the US with US voltage.

End of Life Manual Availability: Yes

WEEE Statement: RoHS Declaration URL: Contents: SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks 1 x 40-pin IDE Cable 1 x 40-pin to 44-pin IDE Cable with Power 1 x SP4 to LP4 Power Cable 1 x Package of Mounting Screws 1 x Installation Guide

Certifications & Standards: FCC CE

Environmental Certification: EU RoHS

Additional Information: Connector Type(s): 1 - SP4 (4 pin, Small Drive Power) Drive Connectors: 1 - LP4 (4 pin; Large Drive Power); 1 - IDE (40 Pin, EIDE/PATA); 1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Host Connectors: 1 - SATA Power (15 pin); 1 - SATA (7 pin, Data) Number of Drives: 1 Drive Size: 2.5in & 3.5in Compatible Drive Types: IDE (ATA) Drive Installation: Fixed Fan(s): No Chipset ID: JMicron - JM20330 LBA support: 48-bit

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station. The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most SATA HDD Docking Stations and Duplicators, including:

  • SATADOCK22UE
  • SATDOCK2UEGB
  • SATDOCK22RE
  • SATDOCK22R
  • SATDOCKU3S
  • SATADOCKU2
  • SATADOCKU2E
  • SATDOCK4U2E
  • SATDOCK4U3E
  • SATDOCKCRH
  • SATDOCKU3E
  • SATDOCKU2EGB
  • SATDOCKU2GB

Backed by 2-year warranty and free, lifetime technical support.Package Contents:
  • SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
  • 1 x 40-pin IDE cable
  • 1 x 40-pin to 44-pin IDE cable with power
  • 1 x SP4 to LP4 Power cable
  • 1 x Package of mounting screws
  • 1 x Installation Guide
SpecificationPhysical CharacteristicsProduct MaterialSteelWeight (Approximate)3.67 ozLength4"Product ColorBlackHeight1"Color Warranty2 YearGeneral InformationBrand Name
