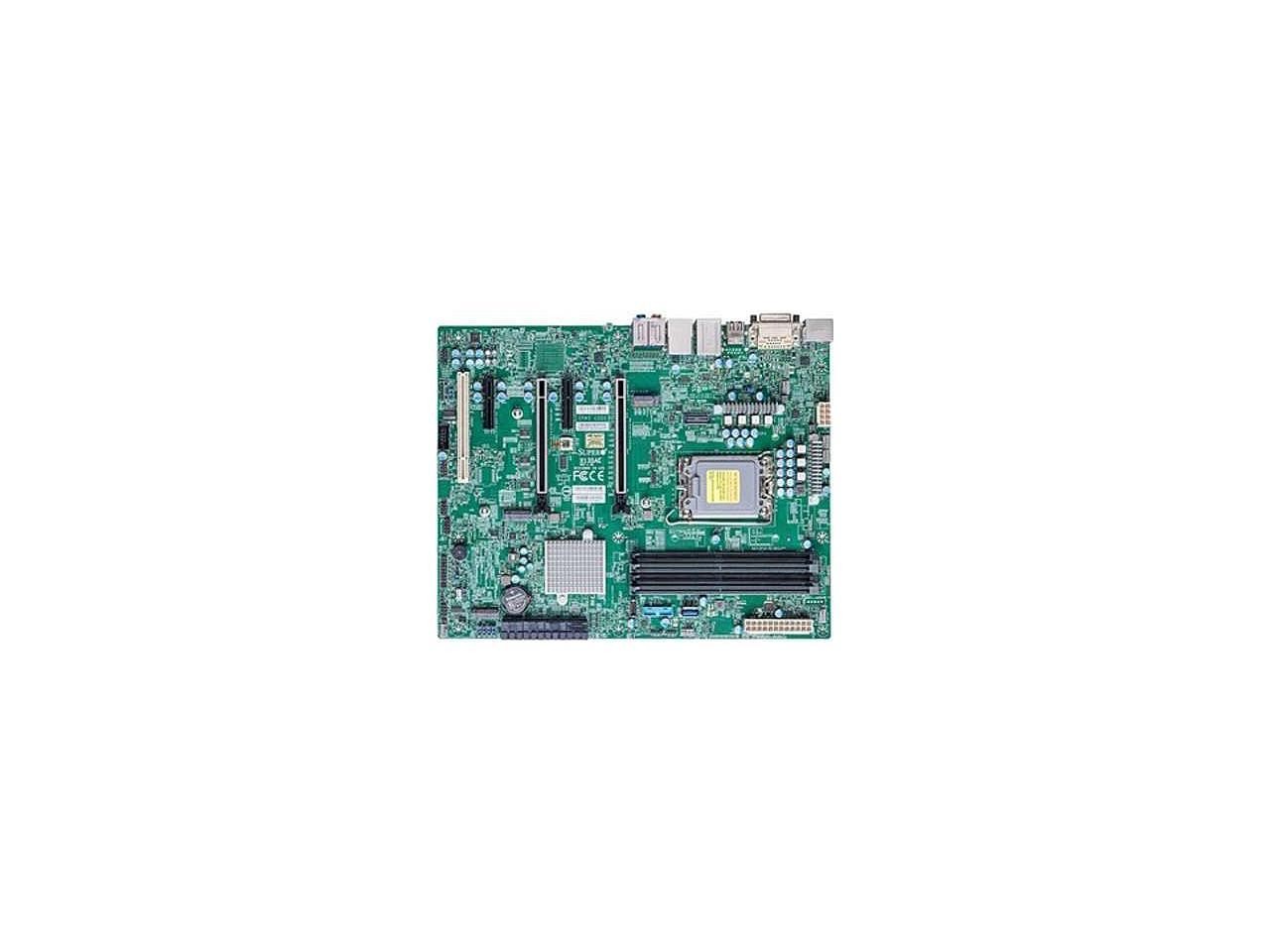

Supermicro X13SAE Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - ATX (261602) Supermicro X13SAE Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - ATX (261602)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Compatibility: Chassis Mid/Mini-Tower: SC732D4-903B SC735D4-1K26B SC735D4-668B SCGS5A-754K Server: SYS-531A-IL

Product Description

This item is brand-new, factory sealed.

Key Features
12th Generation Intel Core i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
Single LAN with Intel Ethernet i225V
Single LAN with Intel PHY I219LM LAN controller
for AMT/vPro
Intel W680
2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4
1 - 5V PCI 32bit
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0,1,5
M.2 Form Factor: 2280
M.2 Key: M-Key
128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
Intel W680 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D portPhysical Stats
Form Factor
ATXProcessor
CPU
12th Generation Intel Core i3/i5/i7/i9 Processors
Single Socket LGA-1700 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
Up to 16(8+8) coresSystem Memory
Memory Capacity
4 DIMM slots
128GB ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type
128GB
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1VOn-Board Devices
Chipset
Intel W680
SATA
Intel W680 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet i225VInput / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
3 USB 3.2 Gen1 port(s) (2 via header 1 Vertical)
3 USB 3.2 Gen2 port(s) (3 rear type A)
2 USB 3.2 Gen2x2 port(s) (1 rear type C 1 via header)
4 USB 2 port(s) (4 via header)
Video Output
1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.1 port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM HeaderExpansion Slots
PCI-E
2 PCI-E 3.0 x4,
2 PCI-E 5.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-KeySystem BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or laterManagement
Software
SuperDoctor 5, SUM, SSM, AMT, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LANPC Health Monitoring
Voltage
VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
Power LED
Catastrophic Error LED
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Overheat LED indication
Other Features
CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connectorOperating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-20oC - 60oC (-4oF - 140oF)Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 Year SpecificationPhysical CharacteristicsForm FactorATXWidth12"Depth9.6"I/O ExpansionsNumber of PCI Express x4 Slots2Total Number of Expansion Slots5Number of PCI Express x16 Slots2Total Number of PCI Express Slots4MemoryMemory TechnologyDDR5 SDRAMNumber of Memory Slots4Memory Speed Supported4400 MHzMemory Form Factor

• Core i3
• Core i5
• Core i7
• Core i9

Total Processor Supported1Processor SocketSocket LGA-1700Chipset ModelW680Onboard InterfacesNumber of SATA Interfaces8Total Number of Onboard USB Ports8Number of Onboard USB 3.2 Ports4Number of M.2 Interfaces1Number of Onboard USB 2.0 of USB 3.2 Ports4HDMIYesTotal Number of USB Ports4Number of Network (RJ-45) Ports2I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
