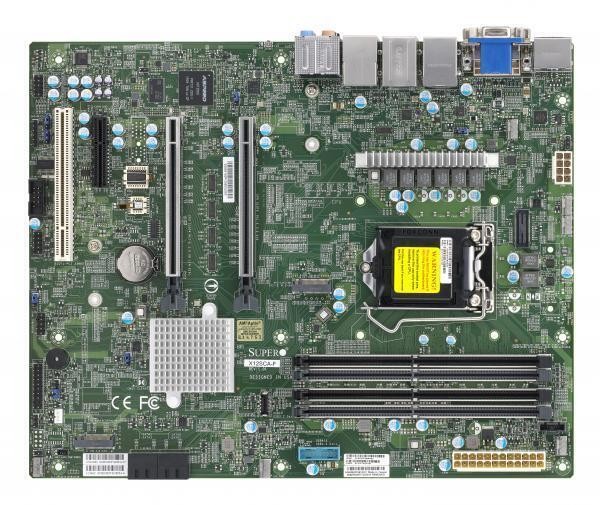

Product SKUsMBD-X12SCA-FPhysical StatsForm Factor

• ATX

Dimension

• 12" x 9.6" (30.48cm x 24.38cm)

ProcessorCPU

• Intel® Xeon® W-1200 Processors, 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
• Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

Core

• Up to 10 cores

System MemoryMemory Capacity

• 4 DIMM slots
• 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz

Memory Type

• Up to 128GB of ered memory with speeds of up to 2933MHz (2DPC)

DIMM Sizes

• 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage

• 1.2V

On-Board DevicesChipset

• Intel® W480/ W480E

SATA

• Intel® W480/ W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• ASPEED AST2500

Audio

• ALC 888S HD Audio

Graphics

• VGA port is dedicated for IPMI

Network Controllers

• Single LAN with Intel® Ethernet i225LM
• Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro

Input / OutputLAN

• 1 RJ45 Dedicated IPMI LAN port
• 1 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 2.5 Gigabit Ethernet LAN port

USB

• 4 USB 3.2 Gen1 port(s) (2 via header; 2 type A)
• 5 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C; 1 via header)
• 2 USB 2.0 port(s) (2 via header)

Video Output

• 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)

Serial Port

• 1 COM Port(s) (1 header)

TPM

• 1 TPM Header

Expansion SlotsPCIe

• 1 PCIe 3.0 x4,
• 2 PCIe 3.0 x16 slots (16/NA or 8/8)

M.2

• M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
• Form Factor: 2280/22110
• Key: M-Key

System BIOSBIOS Type

• 256MB SPI Flash with AMI BIOS

BIOS Features

• ACPI 6.0
• Plug and Play (PnP)
• BIOS rescue hot keys
• Riser card auto-detection support
• SMBIOS 3.0 or later

ManagementSoftware

• Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),SuperDoctor® 5,Super Diagnostics Offline,KVM with dedicated LAN,IPMI 2.0

System Management Software

• SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, *** OOB Bios refresh is not supported on X12SCA-F

Power Configurations

• Power-on mode for AC power recovery, ACPI Power Management, Power supply monitoring, Power button override mechanism, class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Trusted Platform Module (TPM) 2.0

PC Health MonitoringVoltage

• VBAT, System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, VRM temperature, LAN temperature, CPU thermal trip support, +1.8V PCH, +1.0V PCH

LED

• UID/Remote UID
• Power LED
• BMC/IPMI Heartbeat LED
• Catastrophic Error LED

FAN

• 5x 4-pin fan headers (up to 5 fans)
• Fan speed control
• Overheat LED indication

Other Features

• WOL, UID, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector

Operating EnvironmentOperating Temperature Range

• 0°C - 50°C (32°F - 122°F)
