Supermicro X13SWA-TF LGA-4677 DDR5 ECC R VGA IPMI BMC M.2 U2 10G LAN Motherboard For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

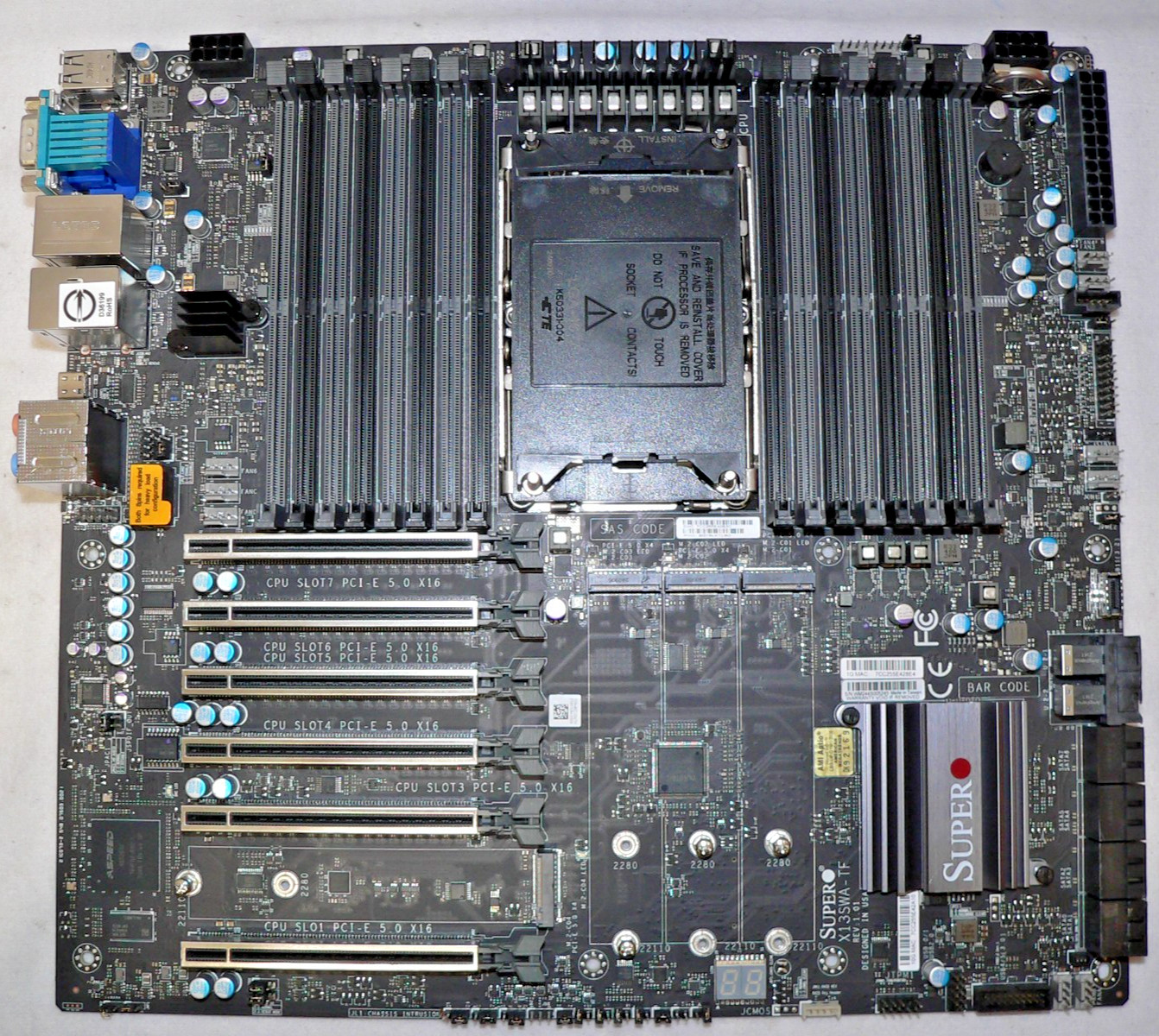

Supermicro X13SWA-TF LGA-4677 DDR5 ECC R VGA IPMI BMC M.2 U2 10G LAN Motherboard
Price: US $599.95
Supermicro X13SWA-TF LGA-4677 DDR5 ECC Registered DIMM VGA IPMI BMC M.2 U.2 10GBb LAN USB 3.2 Server Workstation Motherboard PLEASE READ! Pulled from working server. Fully Tested. There is a few minor scratches on the back as we examined. NO DEEP SCRATCHES OR CUT THAT DAMAGE THE TRACE OR COMPONENTS. THE BOARD IS FULLY FUNCTIONING. Motherboard only. No I/O shield (can purchase online or ), no other accessories. Perfect for a W-3400, W-2400, W-3500 and W-2500 Series Processors. Please check Supermicro website for compatible processor. Product SKUsMBD-X13SWA-TFPhysical StatsForm Factor
13" x 12" (33.02cm x 30.48cm)
ProcessorCPU
Single Socket E (LGA-4677)
Intel®Xeon® W-3400, W-2400, W-3500 and W-2500 Series Processors
Core Count
Up to 60C
Note
Supports up to 385W TDP CPUs
System MemoryMemory
Slot Count: 16 DIMM Slots
Max Memory (2DPC): Up to 2TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
1.1V
On-Board DevicesSATA
8 SATA (6Gbps) via Intel® W790; RAID 0/ 1/ 5/ 10 support
Network Controller
Single LAN with Marvell AQC113C, 1x 10GbE RJ45 LAN port with AQC113C
Single LAN with Intel® Ethernet Controller I210-AT, 1x 1GbE LAN Port with Intel i210AT, share with IPMI
