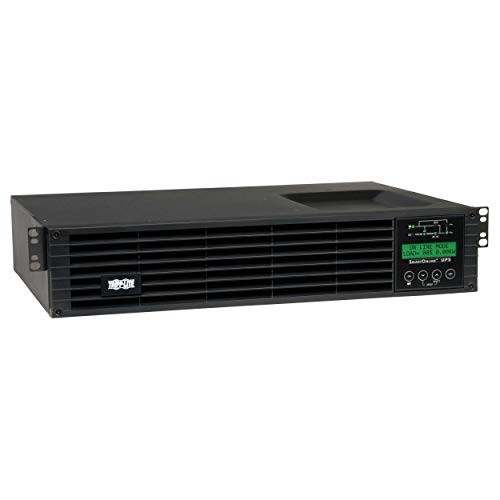

Tripp Lite UPS Smart Online 1000VA 900W 120V LCD USB DB9 WEBCARDLX 2URM (SU1000RTXLCD2UN) Tripp Lite UPS Smart Online 1000VA 900W 120V LCD USB DB9 WEBCARDLX 2URM (SU1000RTXLCD2UN)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS WEBCARDLX Network Interface Card USB Cable RS-232 Cable EPO Cable 4-post Rack-mounting Hardware Owner's Manual
Environmentally Friendly: Yes
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Philippines
Product Description
This item is brand-new, factory sealed.
Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
This 100/110/120/127V 50/60 Hz UPS system with IGBT technology maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 900W capacity, high 0.9 power factor, 570 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time to battery mode in on-line double-conversion mode, the SmartOnline® SU1000RTXLCD2UN double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Two NEMA 5-15R outlets are split into two switchable single-outlet load banks, allowing you to reboot select components or shed loads remotely. In addition to those two outlets, this UPS provides four more 5-15R outlets for powering critical components.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 14 minutes of support at half load (450W) and 4.8 minutes at full load (900W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP24V15RT2U (sold separately). The intelligent battery management system with temperature-compensated charging extends battery life.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features nine selectable screens of UPS data (including load, voltage and battery data) and 16 screens of configuration and setup options. LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, ECO mode operation, bypass mode operation and AC output status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are included.
WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The SU1000RTXLCD2UN includes the Java-free HTML5-based WEBCARDLX that enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.
Package Contents:
- SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS
- WEBCARDLX Network Interface Card
- USB Cable
- RS-232 Cable
- EPO Cable
- 4-post Rack-mounting Hardware
- Owner's Manual
SpecificationPower DescriptionLoad Capacity (Watt)900 WSurge Energy Rating570 JInput Voltage120 V ACOutput Voltage
- 100 V AC
- 110 V AC
- 115 V AC
- 127 V AC
Load Capacity (VA)1000 VAWaveform TypePure Sine WaveOutput Frequency60 HzPhysical CharacteristicsForm FactorRack-mountableWeight (Approximate)28.99 Height2UWarrantyLimited Warranty2 YearControls/IndicatorsStatus Indicators 7 Front Panel LEDs Indicator: AC To DC Conversion Battery Mode Operation Inverter Mode ECO Mode Operation Bypass Mode Operation AC Output Status Front Panel LCD Display:<Interfaces/PortsEPO PortYesSerial PortYesUSB (HID Compliant) PortYesBattery InformationBackup/Run Time (Full Load)4.80 MinuteDC System Voltage24 V DCReplaceable BatteryYesHot SwappableYesBackup/Run Time (Half Load)14 MinuteTypical Battery Recharge Time3 HourGeneral InformationBrand NameTripp Lite seriesMarketing Information Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU1000RTXLCD2UN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP36RT, sold separately). Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7 The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA Outlets Protect Your Connected Components Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Clear LCD Interface Keeps You Informed at a Glance The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment. Product TypeDouble Conversion Online UPSProduct NameSmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPSManufacturerEaton CorporationManufacturer Part NumberSU1000RTXLCD2UNProduct ModelSU1000RTXLCD2UNProduct LineSmartOnlineTitleProduct TitleTripp Lite by Eaton UPS SmartOnline 120V 1000VA 900W Double-Conversion UPS - 6 Outlets Extended Run Network Interface LCD USB DB9 2U Rack/Tower (SU1000RTXLCD2UN)Technical InformationReceptacle TypeNEMA 5-15RReceptacle Detail6 x NEMA 5-15REnergy SavingGreen Energy-SavingOverload ProtectionYesPhaseSingle PhasePlug/Connector TypeNEMA 5-15PDataline Protection
- Mission Critical Equipment
- Data Center
- Computer Room
- Network Closet
- Server
Transfer Time0 nsManagementNetwork ManagementSNMP/HTTP Remote MonitoringAlarm
- UPS StartUp
- Power Failure
- Low Battery
- Overload
- UPS Fault
- Remote Shutdown
Environmental ConditionsSound Emission (A-Weighted)50 dB(A)Maximum Operating Temperature104°F (40°C)Storage Temperature5°F (-15°C) - 122°F (50°C)Maximum Operating Elevation10000 ft Shipping
