Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA (pdumv20hvnetlx) Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA (pdumv20hvnetlx)Package Contents: PDUMV20HVNETLX 24-Outlet PDU Built-in LX Platform Interface Detachable NEMA L6-20P to C19 power cord, 10 ft. Configuration Cable 24 x Plug-lock Inserts Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

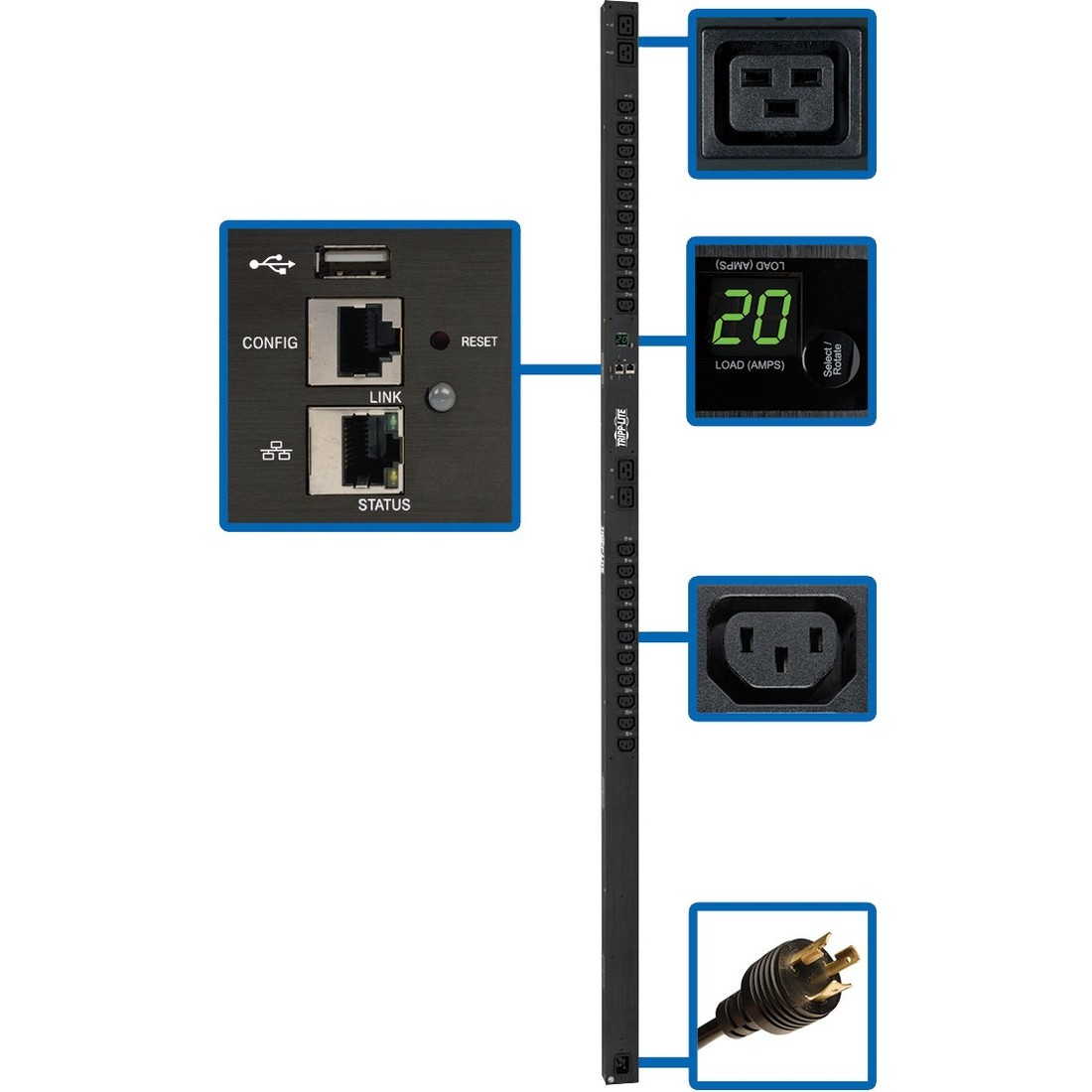

The PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.Package Contents:
- PDUMV20HVNETLX 24-Outlet PDU
- Built-in LX Platform Interface
- Detachable NEMA L6-20P to C19 power cord, 10 ft.
- Configuration Cable
- 24 x Plug-lock Inserts
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
SpecificationPower DescriptionPower Rating (Watt)3800 WInput Voltage Range200 V AC - 240 V ACInput Voltage230 V ACOutput Voltage230 V ACInput Current20 APhysical CharacteristicsWeight (Approximate)8.50 lbMount OrientationVerticalWidth2.2"Rack Height0UDepth2.6"WarrantyLimited Warranty2 YearGeneral InformationBrand NameEatonMarketing InformationThe PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer Product TypePDUProduct NamePDUMV20HVNETLX 24-Outlet PDUManufacturerEaton CorporationManufacturer Part NumberPDUMV20HVNETLXProduct ModelPDUMV20HVNETLXTitleProduct TitleTripp Lite by Eaton PDU 3.7kW Single-Phase Switched PDU - LX Interface 208/230V Outlets [20 C13 & 4 C19] C20/L6-20P 0U TAA (PDUMV20HVNETLX)Technical InformationReceptacle Type
- IEC 60320 C19
- IEC 60320 C13
Receptacle Detail
- 4 x IEC 60320 C19
- 20 x IEC 60320 C13
PhaseSingle PhasePlug/Connector Type
PDU TypeSwitchedManagementManagement Protocols: HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP Shipping
