About this item

• [TP513] 17dBi Yagi Antenna / 2.4Ghz / High-Gain / Long-Range / Outdoor / Directional / N-Female pigtail connector
• [WIRELESS] designed to collects the signal and increase reception from a remote location or bridge WiFi networks between two points or objects that are far apart
• [2.4Ghz BAND] the most widely used WiFi frequency with a furthermost distance coverage
• [DIRECTIONAL] focus the signal in one direction to increase reception leading to greater gain figures.
• [OUTDOOR] compact, light-weight, rugged weatherproof housing and corrosion-resistant materials for outside pole mount (mounting hardware included; mounting pole not included).

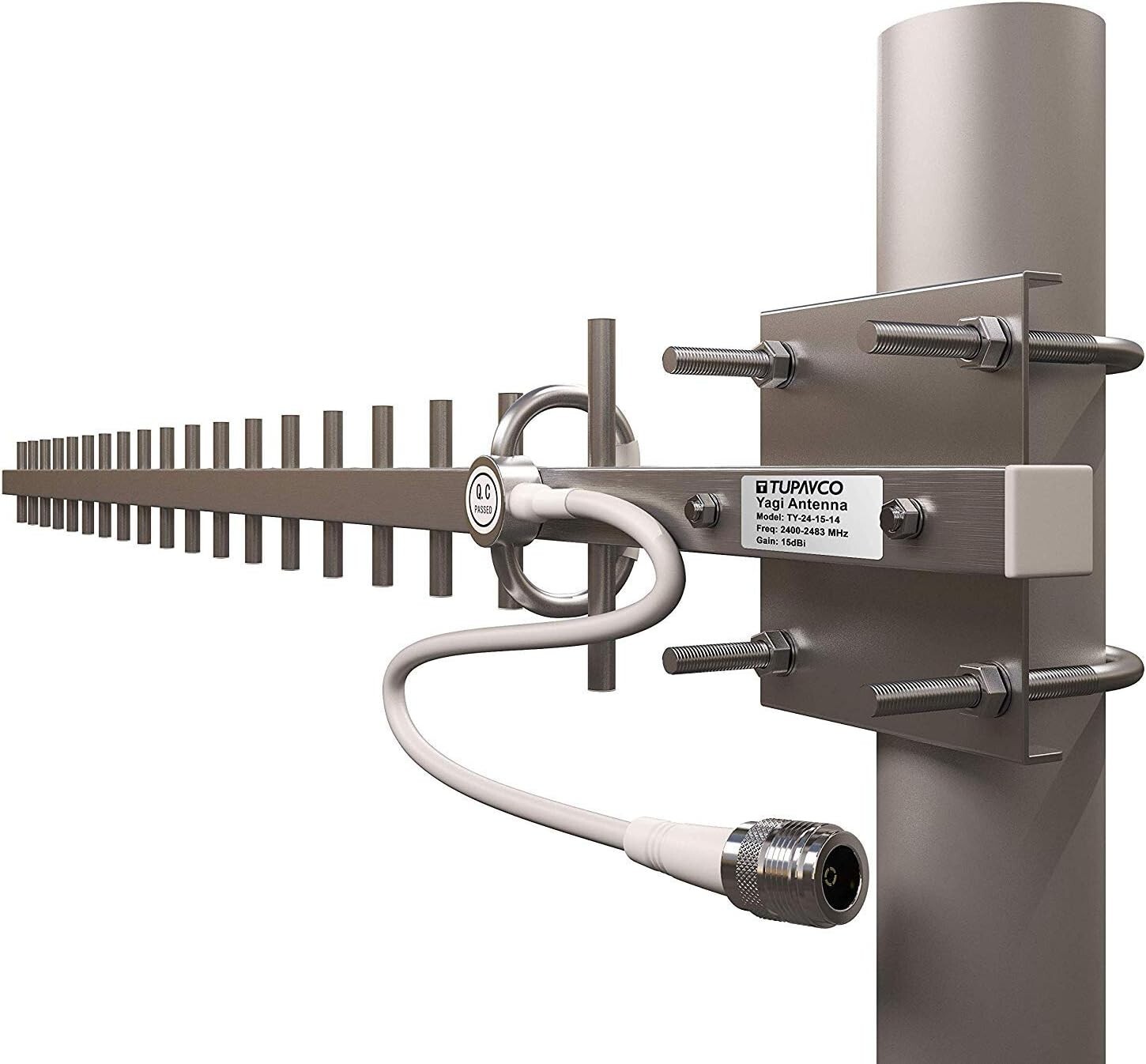

Tupavco TP513 Yagi WiFi Antenna 2.4GHz (17dBi) Outdoor Directional Signal High GProduct Description

Yagi antenna is used to radiate the signal into the forward space. The primary purpose is to reach places where a device with a default antenna would not reach. It is designed for use on stationary objects such as buildings or houses, but it is widely used for remote connection at campgrounds, RV motorhomes, boats, or remote devices like WiFi cameras.

Antenna collects the signal and sends it through the cable to a networking device. It is equipped with a pigtail N-Female connector and it is ready to connect to a device with a proper extension cable. The device needs to have a detachable external antenna connector. It may require a 50 Ohm RF coax expansion cable with N-Male connector on the antenna side and connector type that fits the device on the other side. As a rule of thumb, always use the shortest line and thickest cable to avoid signal loss. Do not use RG59/RG6 coax (75 Ohm TV cable) – signal will be seriously degraded.

Directional Long Range Point-To-Point

This directional antenna is designed for point to point directional wireless applications. To maximize the benefits of this antenna type, point the signal beam to a remote WiFi node. It provides the most focused 17dBi signal in a narrow horizontal and vertical beamwidth of ~25°.

The distance this antenna can reach may vary based on obstacles on the antenna path to the remote WiFi node like walls, trees, and other objects. The best signal gain is when a “direct line of sight” between the antenna and the remote location is possible.

Electrical Data

• Frequency: 2400-2483 MHz
• Gain: 17 dBi
• VSWR: <1.5:1
• Polarization: Horizontal or Vertical
• Horizontal Beamwidth: 25°
• Vertical Beamwidth: 24°
• Nominal Impedance: 50 Ohms
• F/B Ratio: >18 dB
• Max Input Power: 100 W

Mechanical Data

• Connector: N Female
• Dimensions: 35.04 inch
• Weight: 1.01 lb
• Cable Length: 9.45in
• Reflector Material: Aluminum Alloy
• Mount: Mast Ø1.5-Ø2 inch (not included)
• Rated Wind Velocity: 210km/h
• Operating temperature: -40~+150F

Mounting hardware included

• 2x U-Bolts
• 2x mounting bracket
• 4x screw nuts
• 8x washers

To mount this antenna, insert U-bolts around mast pole and put them in the mounting bracket. Secure it with washers and screw nuts.
