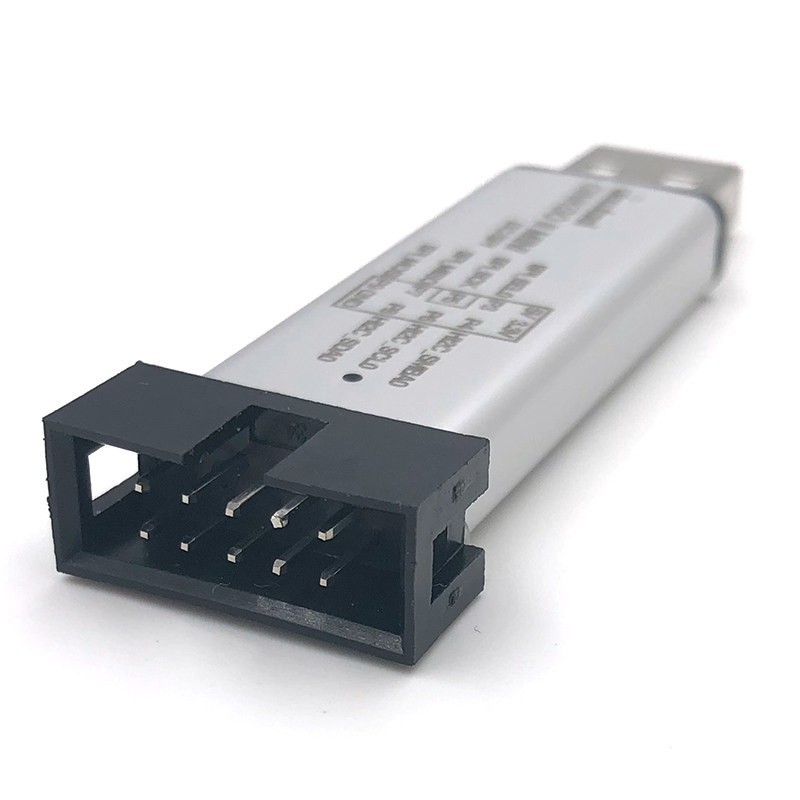

USB to I2C/GPIO/PWM/ADC Mini Adapter Module Compatible withAndroid Raspberry Pi
- I2C busdevices: chip control and debugging
- Testing ofI2C-interface sensors
- Reading andwriting data to I2C EEPROM memory
- Faultdetection and repair of I2C bus devices
- Control ofPMBus and SMBus interface chips
- Assistancewith the development of I2C master programmes
- Pulse counter
- Analoguevoltage measurement, GPI0 input/output control
- PWM signaloutput
- USB to dualserial port/TTL conversion (compatible with RS485 bus mode)
- Supports thefour major operating systems: Linux, macOS, Windows and Android, as well as theRaspberry Pi;
- USBbus-powered, requiring no external power supply; provides 5V and 3.3V poweroutputs with a maximum current of 500mA and short-circuit protection;
- Can functionas an I2C bus host (Host/Master) or slave (Slave), enabling offerirectionaladaptation between USB and I2C buses;
- Software I2C(GPIO mode), hardware I2C frequency up to 400 kHz, software I2C frequency up to400 kHz; frequency is freely adjustable;
- SupportsJiyuang Optoelectronics USB-12C;
- Supports PMBusand SMBus, providing dedicated interface libraries for both buses;
- Multiple setsof free host software to meet the practical needs of different users, withseamless integration with LabVIEW;
- A single PCcan connect to multiple 12C adapters for simultaneous operation (supporting upto 100);
- SupportsUSB-RS485, outputting RS485 bus control signals (DE), with a maximum baud rateof 2.25 Mbps;
- Users canupdate and upgrade the software free of charge; the same hardware can beconfigured to perform different functions via software updates (e.g. updatingan I2C adapter to an SPI or CAN adapter);
- Fully openlow-level interface functions enable secondary development, with detailedfunction documentation and application examples for various programminglanguages (LabVIEW, C#, VC++,T, Python, LabWindows/CVI, C++Builder, VB, VB.NET,Delphi, LabVIEW) including secondary development application templates, samplecode and documentation;
- Customisationof hardware, silk-screen printing, drivers and application software isavailable; hardware customisation is available from a minimum order of 100units, whilst software customisation is available from a minimum order of 10units;
- USBbus-powered, USB 2.0 communication interface;
- 1 hardware I2Cchannel (Standard Mode), 2 software I2C channels (GPI0 Mode); hardware I2C datarate: 400 Kbps, software I2C data rate: 400 Kbps; bus speed freely adjustable;
- 4-channel ADC(12-bit) for measuring analogue voltage signals (0~3.3 V), with a maximumsampling rate of 1 MHz;
- 5 GPIO pins,configurable as input or output pins; all pins are TTL-level compatible;
- 1 pulsecounter input channel, capable of counting both rising and falling edges ofpulses
- 1 UARTchannel, capable of outputting RS485 bus control signals (DE), with a maximumbaud rate of 2.25 Mbps;
- 2 PWM signaloutputs, with adjustable duty cycle (0%~100%) and adjustable output frequency(1 Hz~20 MHz);
- 1 EasyScalebus signal output, allowing adjustment of bus timing;
- 1 SDI12 busoutput (requires an external transceiver), with dedicated command transmissionand reception functions for SDI12;
- Safe voltagerange: 0~5 V;
- Item size:66.5mm×20.5mm×8.5mm; Weight: 9g;
- Operatingtemperature range: -40 °C~85 °C;
