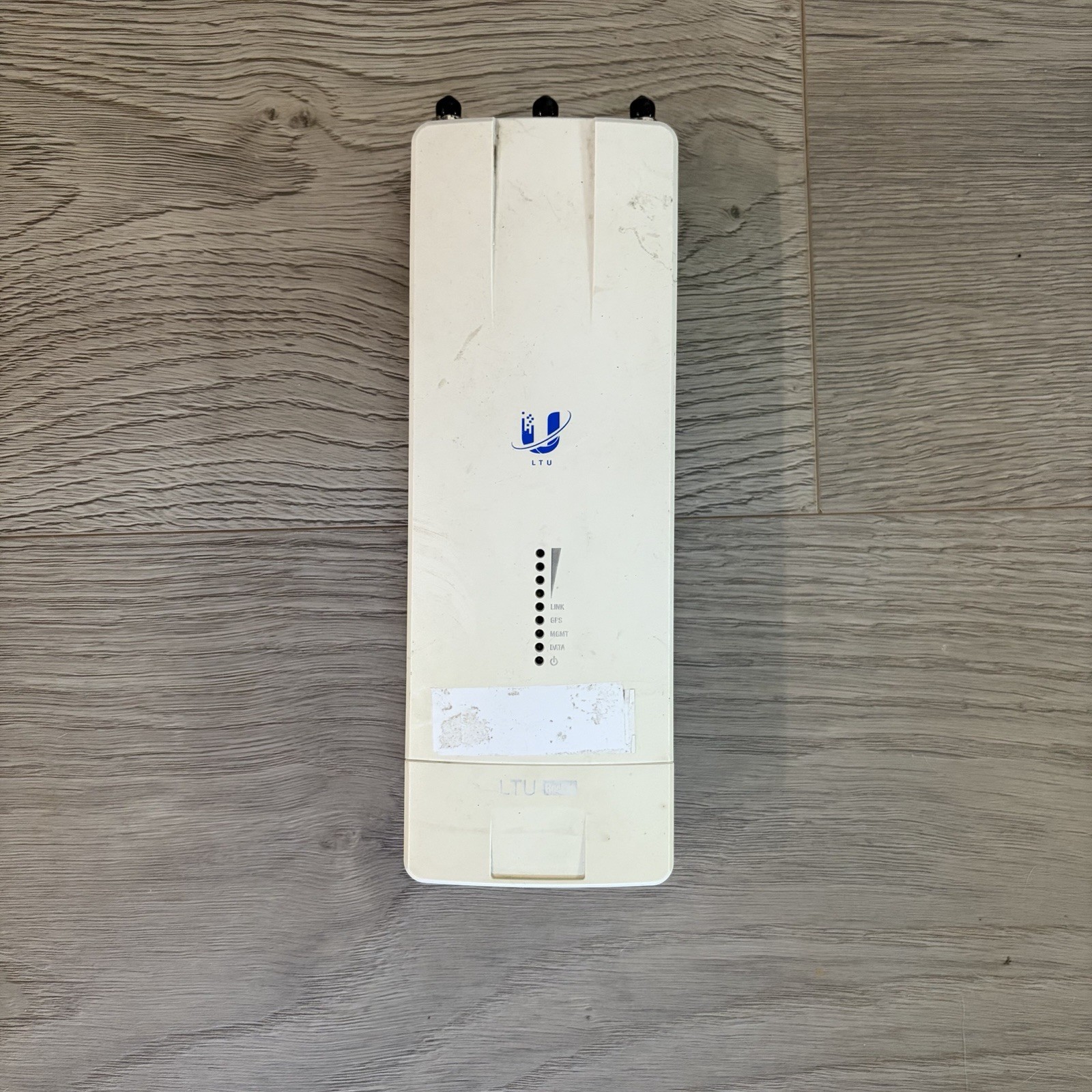

Condition Notes:These radios are in used condition and will show typical signs of outdoor use. They will contain blemishes and imperfections to exterior from being mounted and may show signs of fading from being mounted in the sun. All units have been engineer tested and reset to factory default settings to ensure easy adoption into existing deployments. No additional accessories are included in this sale and only what you see in the pictures is included.
MechanicalDimensions244 x 82 x 48 mm (9.6 x 3.2 x 1.9")Weight468 g (1 lb)Enclosure materialDiecast aluminum, polycarbonateMount pole mount (Kit not included)
GPS pole mount (Kit not included)
Rocket mount interface(2) GbE RJ45 portsPower methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-)Power supply24V, 1A gigabit PoE adapter (Not Included)Supported voltage range18—54V DCMax. power consumption24WRF connections(2) RP-SMA weatherproof (CH0, CH1)
(1) SMA weatherproof (GPS)GPSYesGPS antennaExternal magnetic baseButtonFactory resetAmbient operating temperature-40° to 55° C (-40° to 131° F)CertificationsCE, FCC, ICNDAA CompliantYesSoftwareModePtMP BaseStation radioServicesSNMP, SSH, dynamic DNS, webserver, remote log, ping watchdogUtilitiesairView®, speed test, alignment, discovery, ping, traceroute, cable test, constellationAuto distance adjustmentYesAuto power adjustmentYesSecurityYesStatical reportingYesManagement interfaceBluetooth management for easy setup over UISP App
WEB UIMinimum software requirementsAny modern web browser
iOS™ or Android™ based smartphoneSystemMaximum throughput900+ Mbps*
*FW version 2.3.0 and later.Packets per second2+ millionSupported clients count100+Maximum range100+ km*
* Throughput and range values may vary depending on the environmental conditions.EncryptionWPA2-PSK (AES)Uplink/Downlink ratio25/75, 33/67, 50/50RFOperating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
Worldwide
5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz
4800 - 6200 MHz
*Depends on regulatory region.Max. conducted TX power29 dBmChannel bandwidth10/20/30/40/50/60/80/100* MHz
*FW version 2.3.0 and later.Management radio2400 - 2483.5 MHz
