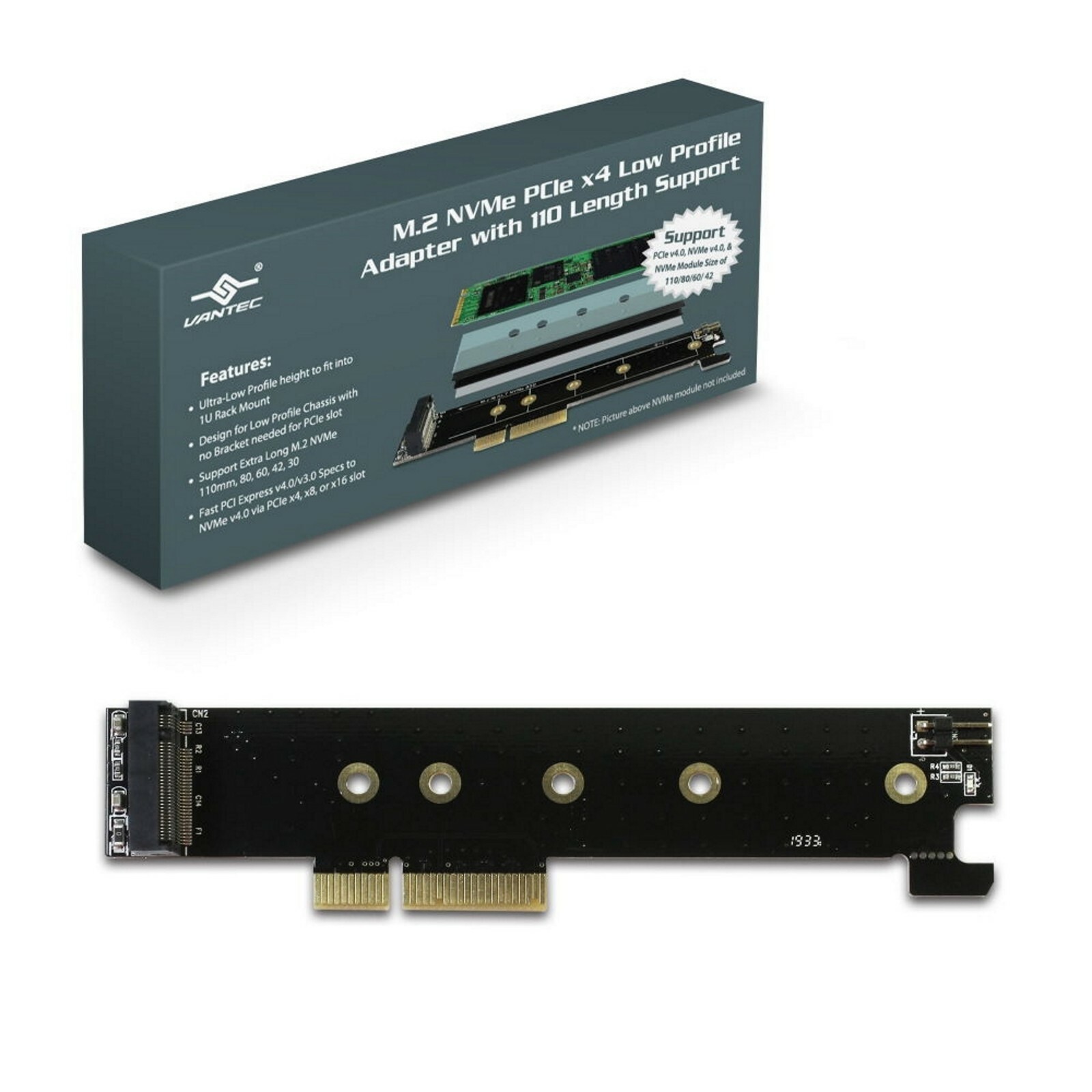

VantecM.2 NVMe PCIe X4 Low Profile Adapter With 110 Length Support
This M.2 NVMe PCIe x4 Low Profile Adapter is very small in size and can fit into a 1U rackmount vertically. It is only 130x31x10mm in size and when seated in the PCIe slot it only stands up by 23mm. With the small size, it is capable of holding the longest (110mm) M.2 NVMe available. It comes with Heat Sink and Heat Pad for Thermal Management. This adapter will also support other shorter NVMe length like 80, 60, 42, 30mm in length. With this adapter, your NVMe is linked to the PCIe x4 lanes using PCI Express v4.0/v3.0 specifications for super-fast booting or data access. This M.2 NVMe adapter will give you the best performance possible for your Profile height to fit into 1U Rack Mount
• Design for Low Profile Chassis with no Bracket needed for PCIe slot
• Support Extra Long M.2 NVMe 110mm, 80, 60, 42, 30
• Fast PCI Express v4.0/v3.0 Specs to NVMe v4.0 via PCIe x4, x8, or x16 slot
• Full-Length heat sink and heat management for NVMe module
• Support Booting with Latest UEFI System Boards and OS
• Support backward compatible with PCI Express v2.0 / v1.0
• Supports system boards with PCIe x4,x8,x16 slots
• Uses minimum power from PCIe 3.3V for better power management

Model: UGT-M2PC130M.2 Type Support: NVMe SSD using M Key onlyM.2 size: Length support 22x110, 22x80, 22x60, 22x42mmInternal Interface: 1 x M.2 (NGFF), M KeyPCIe Interface: PCIe v4.0/v3.0/v2.0/v1.0 x4 (4 lanes)Power: PCIe Bus powered (3.3V)Dimensions: 5.1 x 1.2 x 0.4 inches / 130 x 31 x 10 mmWeight: 4 oz. / 113 gSystem Requirements:

Available system board PCIe x4 or x8 or x16 slot, preferred x16 with card slot lock

OS support like Windows® 7/8/8.1/10, or Linux

For booting, requires UEFI System Board and latest OS

What's Included: M.2 NVMe PCIe x4 Low Profile Adapter, Quick Installation Guide, Mount and Screws set, Heat Sink and Heat pad
