Description

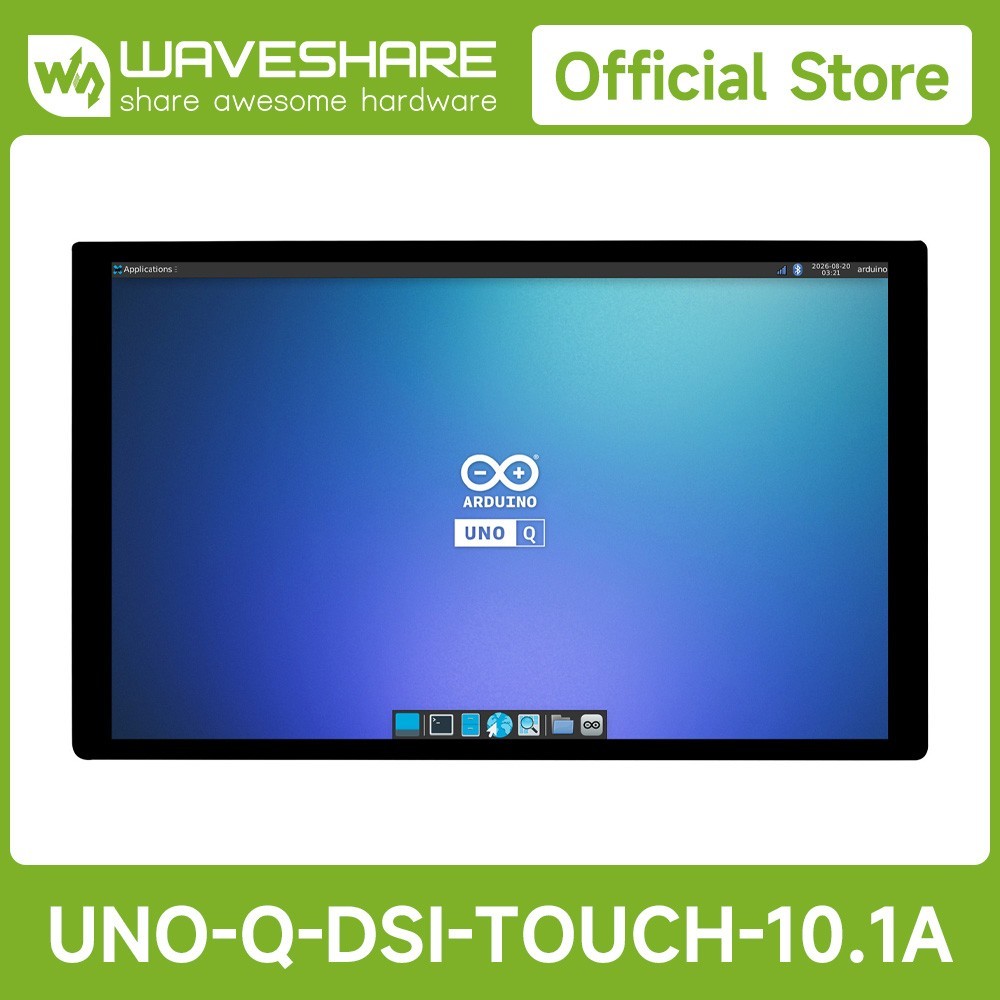

10.1inch DSI capacitive touch screen, 800 × 1280 resolution, IPS panel, compatible with Arduino UNO Q, supports Board-to-Board connection10.1inch DSI touch screen

Compatible with Arduino UNO Q, supports Board-to-Board Connection

• Size10.1″
• Resolution800 × 1280
• Display PanelIPS
• Viewing Angle178°
• Brightness300cd/m²
• Touch TypeCapacitive
• Touch interfaceI2C
• Touch PointsMulti-Touch
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Compatible BoardArduino UNO Q
• CameraDual Camera Interfaces
• AudioDual 3.5mm Audio Jacks
• SoundDual Speakers

The display orientation is portrait by default, 800 × 1280 resolution (H×V).
Change the software config for landscape display.

Supports board-to-board connection without additional wiring

Features the standard UNO form factor, supporting direct stacking onto the UNO Q board via the JMEDIA and JMISC connectors for compact integration

Connection Examples

* for reference only, the Arduino UNO Q board is NOT included

IPS Display Panel

Excellent Display Performance, 178° wide viewing angle

Capacitive Multi-Touch

1. Supports multi-touch, depending on the operating system
2. Up to 6H hardness toughened glass panel
3. Optical bonding, display well and dust-resistant

Dual camera interfaces

Equipped with dual 22PIN CSI camera interfaces, compatible with IMX219 camera modules, supporting vision applications such as stereo vision, multi-angle capture, and object tracking

* for reference only, the camera modules and Arduino UNO Q board are NOT included, please refer to the package content for detailed part list.

Cameras Pin DefinitionInterface IntroductionOutline DimensionsPackage Content

Weight: 0.104 kg

1. UNO-Q-DSI-TOUCH-10.1A x1
2. USB Type-A male port to Type-C male port cable ~1m x1
