Waveshare ESP32-P4 Dev Board WiFi 6 BT5 MIPI-CSI RJ45 Ethernet Camera
Price: CN $71.36
Waveshare ESP32-P4 Development Board

⚡ Dual-Core RISC-V, MIPI-CSI/DSI, Wi-Fi 6 & Bluetooth 5 Multimedia Platform

Choosing Your Option

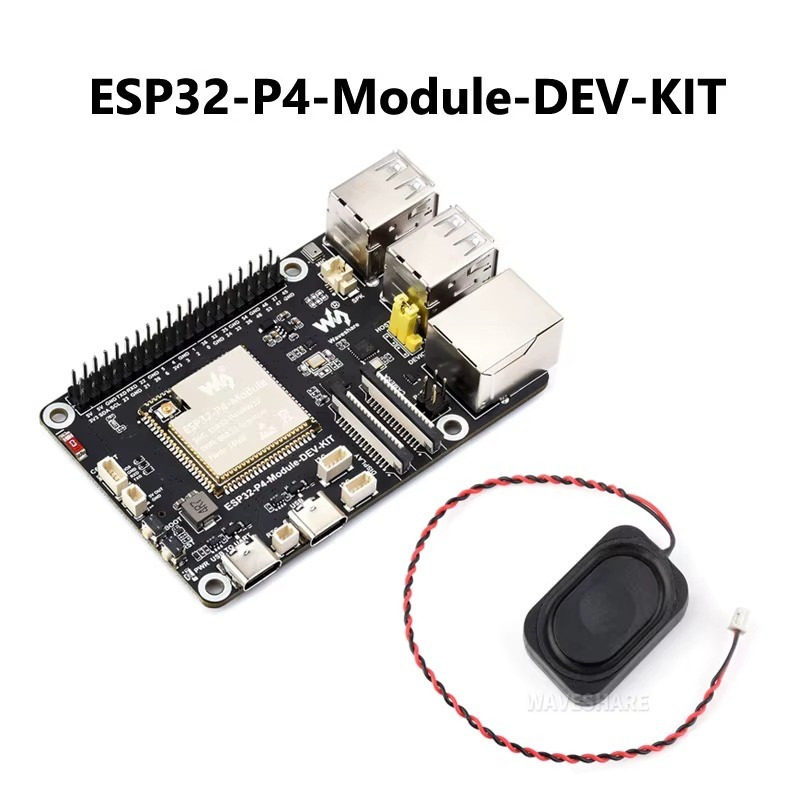

  • ESP32-P4-Module: Dev board + 8Ω 2W speaker only.
  • Camera-KIT-A: Dev board + speaker + FFC 15PIN cable + Raspberry Pi Camera (B).
  • 7inch LCD-KIT-B: Full kit with 7-inch DSI capacitive touch display, dev board, cables, screws, speaker and camera.
  • 10.1inch LCD-KIT-C: Full kit with 10.1-inch DSI capacitive touch display, dev board, cables, screws, speaker and camera.
🚀 Key FeaturesHigh-Performance Processing

ESP32-P4 400MHz dual-core RISC-V with built-in ESP32-C6 for Wi-Fi 6 and Bluetooth 5/BLE connectivity via SDIO.

Rich Multimedia Interfaces

MIPI-CSI camera input with integrated ISP, MIPI-DSI display output, H.264 encoder, and USB 2.0 OTG HS.

Networking & Expansion

Onboard RJ45 Ethernet port with reserved PoE header, plus a 40-pin GPIO header compatible with select Raspberry Pi HATs.

Secure & Reliable

Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, and a dedicated Key Management Unit for secure multimedia applications.

📐 SpecificationsProcessorESP32-P4, 400MHz Dual-Core RISC-VWireless ModuleBuilt-in ESP32-C6 (Wi-Fi 6, Bluetooth 5/BLE)Memory32MB PSRAM, 16MB Nor Flash onboardCamera InterfaceMIPI-CSI with integrated Image Signal ProcessorDisplay InterfaceMIPI-DSI, supports 7in / 10.1in capacitive touch panelsNetworkingOnboard RJ45 Ethernet, reserved PoE header (module not included)USBUSB 2.0 OTG HSAudioI2S, microphone and speaker headers (8Ω 2W speaker included)Expansion40-pin GPIO header, partial Raspberry Pi HAT compatibilitySecuritySecure Boot, Flash Encryption, TRNG, Key Management UnitCompatible ModelESP32-P4-Module-DEV-KIT📷 Product Images❓ FAQDoes this board include Wi-Fi and Bluetooth?

Yes, a built-in ESP32-C6 module provides Wi-Fi 6 and Bluetooth 5/BLE connectivity.

Is the PoE module included?

No, the board has a reserved PoE header but the PoE module itself is not included.

Which camera is compatible?

The board supports a Raspberry Pi Camera (B), 5MP with manual focus, via the MIPI-CSI interface.

Can I use a 7 inch or 10.1 inch display?

Yes, select the matching kit option to receive a DSI capacitive touch display with cables and screws included.
