Waveshare ESP32-S3 1.43inch AMOLED Display Development Board 466x466
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare ESP32-S3 1.43inch AMOLED Display Development Board 466x466
Price: CN $40.01
Description

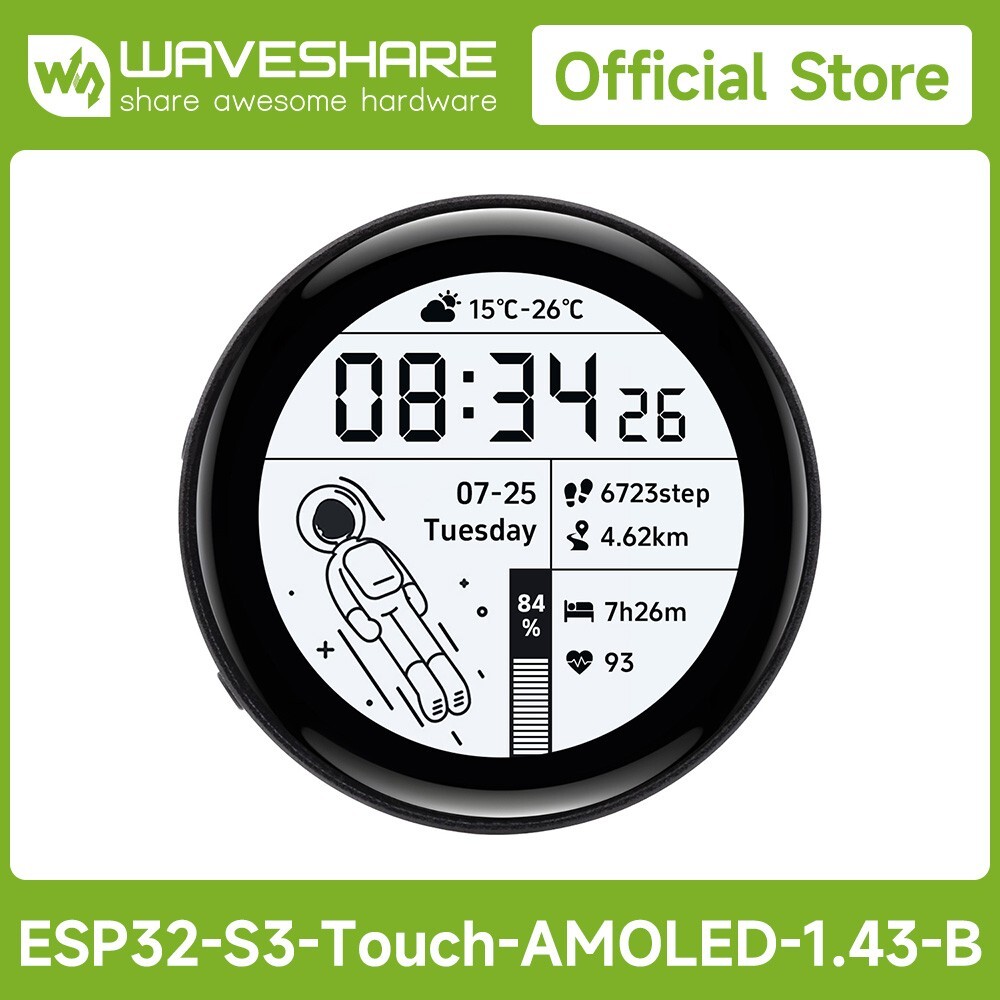

ESP32-S3 1.43inch AMOLED Display Development Board, 466×466, QSPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip, Optional For CNC Metal Case, ESP32 With DisplayESP32-S3 1.43inch AMOLED
Development Board

466 × 466 Resolution, AMOLED Round Display, Onboard Multiple Interfaces

Version options

ESP32-S3-Touch-AMOLED-1.43
standard version, without case

ESP32-S3-Touch-AMOLED-1.43-B
with CNC metal case, better protection


Product Features

This product adoptsESP32-S3R8chip with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.43inch AMOLED display which can smoothly run GUI programs such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong compatibility and expandability. It is suitable for the quick development of the HMI and other ESP32-S3 applications.

  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
  • Onboard 1.43inch AMOLED display, QSPI interface, 466 × 466 resolution, 16.7M color
  • Supports capacitive touch function controlled via I2C interface, with interrupt support
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
  • Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
  • Onboard RST button and programmable BOOT button for easy custom function development
  • Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
  • Onboard TF card slot for external TF card storage of pictures or files
  • Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
  • Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces
  • Optional for CNC metal case, with clear and colorful label on the back, nice looking and easy to carry


AMOLED parametersDisplay PanelAMOLEDDisplay Size1.43 inchResolution466×466Display Colors16.7MBrightness350 cd/㎡Contrast Ratio60000:1Communication InterfaceQSPIDriver ICSH8601/C05300TouchSupportedTouch ICFT3168
Application ScenariosAdopts AMOLED screen

The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle


Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, tutorials to help you easily get started


Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

interface definition

adapting multiple GPIO interfaces, offers strong compatibility and expandability

ESP32-S3 AMOLED definitionAMOLED pinESP32-S3 pinDescriptionQSPI_CSGPIO9QSPI chip selectionQSPI_CLKGPIO10QSPI clock pinQSPI_D0GPIO11QSPI D0 dataQSPI_D1GPIO12QSPI D1 dataQSPI_D2GPIO13QSPI D2 dataQSPI_D3GPIO14QSPI D3 dataAMOLED_RESETGPIO21AMOLED reset pinAMOLED_ENGPIO42AMOLED enable pinTP_SDAGPIO47TP I2C data pinTP_SCLGPIO48TP I2C clock pin
What's On Board
  1. ESP32-S3R8
  2. 16MB Flash
  3. QMI8658 attitude sensor
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
  4. PCF85063
    RTC chip
  5. 3.7V Lithium battery header
  6. TF card slot
    on the back side of the PCB
  7. RTC battery header
  8. I2C 4PIN connector
  1. Charge indicator
  2. USB Type-C port
  3. Power indicator
  4. UART 4PIN connector
  5. BOOT button
  6. Reset button
  7. IPEX1 connector
    Switching to use external antenna via resoldering a onboard resistor
  8. Onboard ceramic antenna


outline dimensions

ESP32-S3-Touch-AMOLED-1.43


Weight:0.037 kg

ESP32-S3-Touch-AMOLED-1.43
  1. ESP32-S3-Touch-AMOLED-1.43 x1
  2. SH1.0 4PIN cable ~100mm style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
  3. ESP32-S3-Touch-AMOLED-1.43-B x1
  4. SH1.0 4PIN cable ~100mm x2
