Please note: The buyer is responsible for customs clearance and payment of duties.
If you have other configuration needs, you can contact us and we will customize it for you.

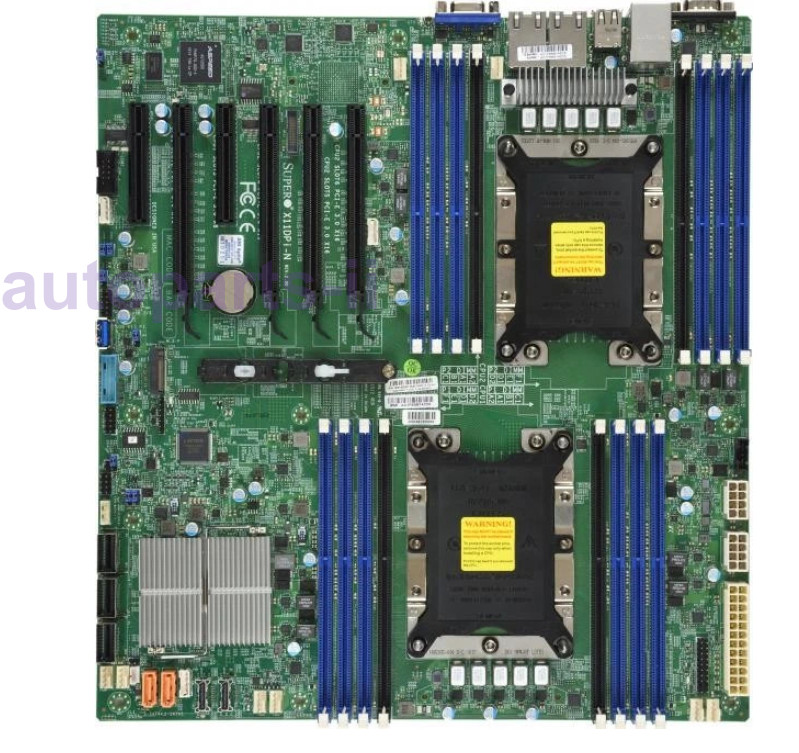

FOR Supermicro X11DPI-NT Motherboard With Intel Xeon Gold 6230 20 Core 2.10GHz CPU
Package include:
1XSupermicroX11DPI-NT
2xINTEL XEON GOLD 6230
Mainboard
Product SKUs
MBD-X11DPI-NT
Physical Stats
Form Factor
·E-ATX
Dimension
·12" x 13" (30.48cm x 33.02cm)
Processor
CPU
·2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
·Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Core
·Up to 28 cores
Note
·BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
System Memory
Memory Capacity
·16 DIMM slots
·Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
·Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
·Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
·2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
·LRDIMM: 128GB
·RDIMM: 64GB
Memory Voltage
·1.2V
Error Detection
·Corrects single-bit errors
·Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
·Intel® C622
SATA
·Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
·ASPEED AST2500
Graphics
·1 ASPEED AST2500 BMC port(s)
Network Controllers
·Dual LAN with 10GBase-T with Intel® X722 + X557
Input / Output
SATA
·14 SATA3 (6Gbps) port(s)
USB
·4 USB 2.0 port(s) (2 via header; 2 rear)
·3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
·2 USB 3.0 port(s) (2 rear)
Video Output
·1 VGA port(s)
Serial Port
·2 COM Port(s) (1 header; 1 rear)
DOM
·2 SuperDOM(Disk on Module) ports
TPM
·1 TPM Header
Expansion Slots
PCIe
·4 PCIe 3.0 x16,
·2 PCIe 3.0 x8
M.2
·M.2 Interface: PCIe 3.0 x4
·Form Factor: 22110, 2280, 2260
·Key: M-Key
