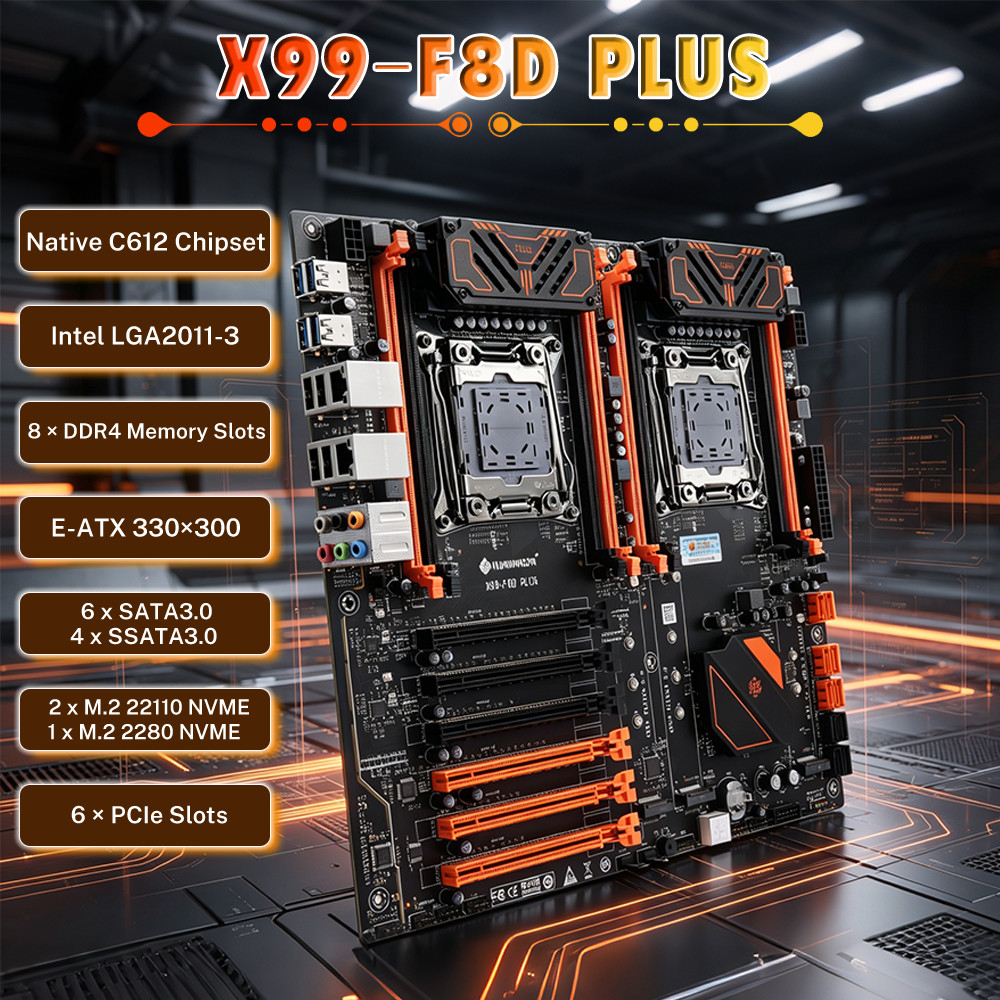

X99-F8D PLUS Dual CPU LGA2011-3 Motherboard, Xeon E5 V3 V4, 2.5G LAN, DDR4 x8
Price: US $259.25
X99-F8D PLUS V1.2supports dual CPU Intel LGA2011-3 processorDDR4 8 memory slots, single CPU quad-channel, supports DDR4 1866/2133/2400MHz, max support 512GB memoryECC server/desktop universal memory2 x M.2 22110 NVME PCIE X4 3.0, 1 x M.2 2280 NVME PCIE X4 2.0&NGFF SSATA3.0 6Gbps(when in use will occupy one SSATA signal)onboard debug card, power/reset buttonsupports 7.1 -channel audio ALC897 chip12 Layer PCB baseboard 8+8 -phase power supplyUSB3.04 USB2.04 externally connectable 1 Groups USB3.0 2 Groups USB2.06 x SATA3.0 6Gbps HDD port, 4 x SSATA3.0 6Gbps HDD port3 x PCI Express 3.0 x16 slot; 3 x PCI Express 3.0 x8 slotdual 2.5G NIC RTL8125BG

Motherboard Model

X99-F8D PLUS V1.2

CPU compatibility

supports Intel LGA2011-3 platform processor

CPU slot

Intel LGA2011-3 -pin

chipset

C612

memory Channel

single processor quad-channel

memory slot(s)

8*DDR4, DDR4 2400/2133/1866MHz specification memory

max memory (GB)

64G*8(depends on CPU, memory The larger the capacity grand,

requires Power Supply 3.3V output out current More and More grand, Otherwise with Not Working)

M.2 port

2 x M.2 22110 NVME PCIE X4 3.0, 1 x M.2 2280 NVME PCIE X4 2.0&NGFF SSATA3.0 Gbps

(when in use will occupy one SSATA signal)

storage port

6 x SATA3.0 6Gbps port, 4 x SSATA3.0 6Gbps port

Expansion Slots

3 x PCI Express 3.0 x16 slot, 3 x PCI Express 3.0 x8 slot

Onboard Audio

7.1 -channel audio

Onboard LAN

dual 2.5G NIC RTL8125BG

Power Connector

24pin+8pin+8pin

Fan port

2 x CPU_FAN header,4 x SYS_FAN header

PCB Layers

8+8 -phase power supply, 12 Layer PCB

Motherboard

Specifications

305*330MM E-ATX form factor

Rear Panel Ports

4 x USB2.0 port, 4 x USB3.0 port, 2 x LAN port, 1 x 6 -hole audio port

Front Panel Ports

2 Groups USB2.0 header, 1 Groups USB3.0 header, 1 Groups front audio header, 1 Groups COM header,

1 Groups boot/power on header, 1 x motherboard buzzer, 1 x motherboard debug card, 1 Groups power/reset button

Supported OS

Windows7 Windows10 Windows11

BIOS

AMI UEFI BIOS

Package Contents

2 Piece SATA SATA data cable, 1 Piece IO I/O shield, 1 warranty card, one Unit Manual
