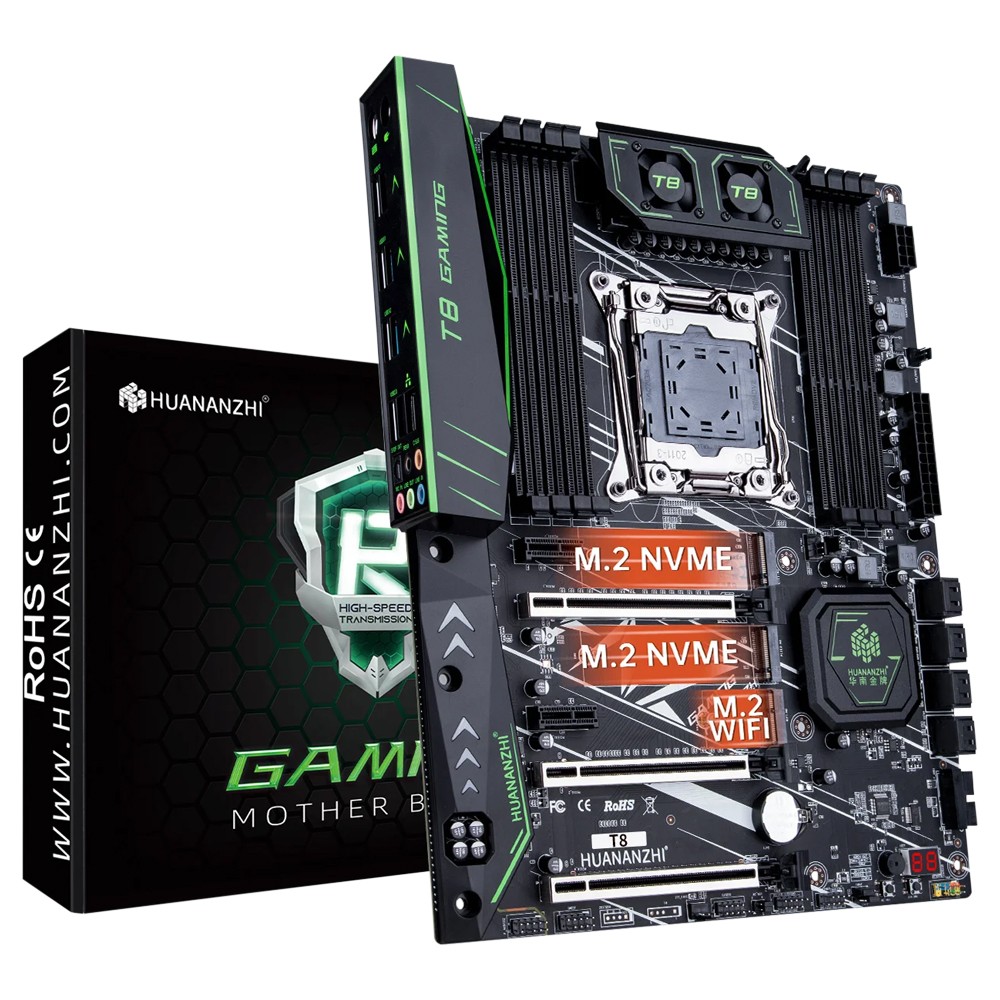

Motherboard Model
X99-T8
chipset
C612
CPU Socket
supportsIntel LGA 2011-3socket processor(limitedsupports DDR3 processor, such asE5-2629 v3/ E5-2649 v3/
E5-2669 v3/E5-2673 v3/ E5-2676 v3/E5-2678 v3/E5-2696 v3/E5-2666 v3/E5-2686v4/E5-2696v4))
memory slot(s)
8 x DDR3 RAM stick slot
Memory Standard
supports quad-channel DDR3 1866/1600/1333MHz specification memory, max support 8*32G
storage port
4 x SATA3.0 port,4 x sSATA3.0 port
Expansion Interface
IO: 1 x PS/2 Keyboard/Mouse Pass-through using Port, 4 x USB2.0 port, 2 x USB3.0 port,
1 x digital optical audio port, 1 x LAN port, 5 x 3.5MM audio port;
expansion header: 2 Groups 9pin USB2.0 header, 1 Groups 19pin USB3.0 header,
1 x front audio output out header
Expansion Slots
2 x PCI Express3.0x16 slot, 2 x PCI Express x1 slot,
1 x PCI Express x4 slot, 1 x M.2 WIFI port (NGFF protocol),
2 x M.2 NVMe port (1x PCIE 3.0x4 speed, 1x PCIE 2.0x4 speed)
Onboard Audio
7.1 -channel audio
Onboard LAN
Gigabit LAN
Power Connector
24pin+8pin
Fan port
4 x
PCB Layers
10 Layer, 6 -phase power supply
Motherboard
Specifications
300*244MMATX
Package Contents
2 Strip SATA cable, 1 x I/O I/O shield, 1 Warranty card
