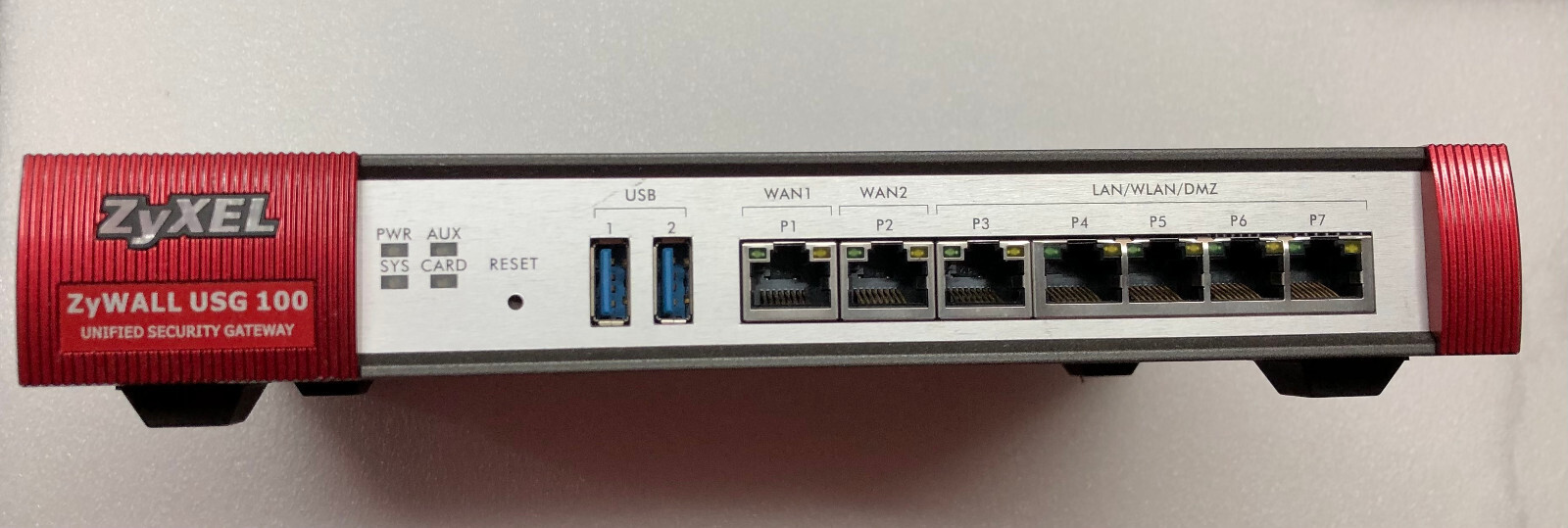

ZYXEL ZyWALL USG 100General

• Device TypeSecurity appliance
• Authentication MethodActive Directory, LDAP, RADIUS, Secure Shell (SSH), X.509 certificates
• ManufacturerZyXEL Communications Corp.

Power Device

• Nominal VoltageAC 120/230 V
• Frequency Required50/60 Hz

Memory

• Installed Size256 MB

Networking

• Remote Management ProtocolHTTP, HTTPS, SNMP 2c, SSH, Telnet
• Status Indicatorsport status, power, system
• Network / Transport ProtocolIPSec, L2TP, PPPoE, PPTP
• FeaturesALG support, Access Control List (ACL) support, Intrusion Prevention System (IPS), LDAP support, NAT support, SSH support, Stateful Packet Inspection (SPI), Syslog support, URL filtering, VLAN support, VPN support, anti-spam protection, DDos attack prevention, antivirus analysis, auto-negotiation, auto-uplink (auto MDI/MDI-X), content filtering, dynamic DNS server, firewall protection, firmware upgradable, load balancing, manageable, packet filtering, DHCP support, routing, traffic shaping, DMZ port, DoS attack prevention, E-mail alert, High Availability, IPSec passthrough, Intrusion Detection System (IDS)
• Routing ProtocolIGMP, IGMPv2, OSPF, RIP-1, RIP-2
• Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
• Compliant StandardsIEEE 802.1Q, X.509
• PerformanceFirewall throughput : 225 Mbps
  VPN throughput (AES) : 90 Mbps
• CapacityUser licenses : unlimited
  Connection / user qty : 25
  Concurrent sessions : 10,000
  Max. concurrent IPsec VPN tunnels : 50
  Max. concurrent SSL VPN users : 10

• Connectivity Technologywired

Interface Provided

• 2 x USB 2.0
• 2 x Standard Gigabit Ethernet WANs
• 5 x Gigabit Ethernet AlgorithmAES, DES, WPA2, DH, IKE, MD5, PKI, SHA-1, SSL, Triple DES, WPA

Environmental Parameters

• Min Operating Temperature32 °F
• Max Operating Temperature122 °F
• Humidity Range Operating5 - LineZyXEL & Weight
  • Depth6.9 in
  • Width9.5 in
  • Height1.4 in
  • Weight2.65 lbs
