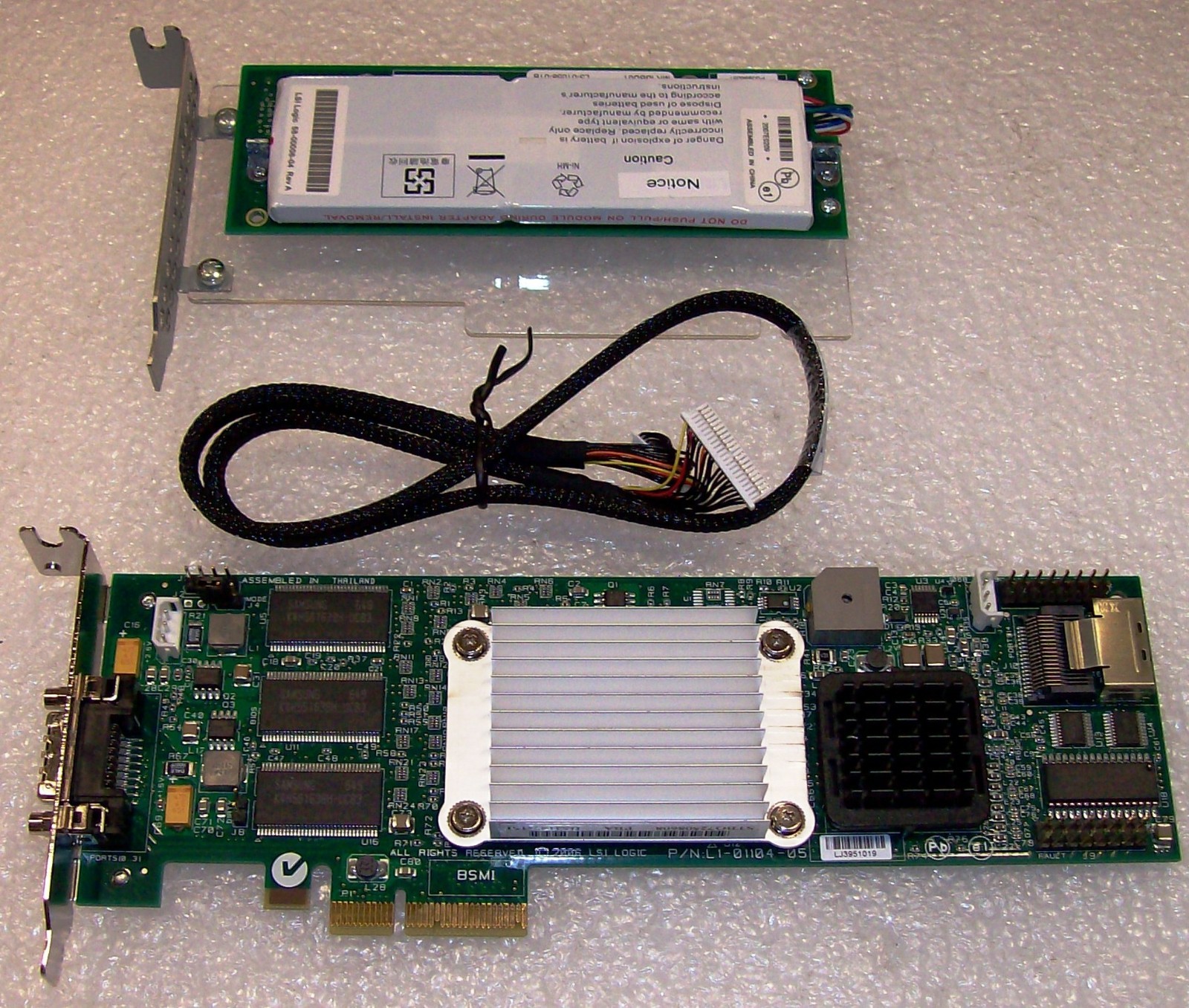

With AXXRIBBU1 Battery Backup

Note:These have half height brackets only and come with battery cable. Hard drive cables and resource guide or CD not included.

OEMXS # End of Life

Expected Discontinuance: Q2'10

Description: Mainstream 3Gb SAS RAID controller with 4 internal and 4 external ports for SAS/SATA drives.

Board Form Factor: Low-Profile with Half height bracket

Supported Devices: SAS/SATA Devices

Compatible Battery Backup Options: AXXRSBBU3
RAID Level Supported: 0,1,10,5,50

# of Ports Internal: 4

# of Ports External: 4

# of Devices Supported: 32

Embedded Memory: 128MB

PCIe Host Interface: PCI Express x4

IO Processor Model: Intel IOP333

Compatible Products:
RAID (Products: 2)

Intel RAID Smart Battery AXXRIBBU1
Intel RAID Smart Battery AXXRSBBU3
Intel RAID Smart Battery AXXRPCM2

AXXRIBBU1 End of Life

Launch Date: Q1'10

Description: Optional RAID Smart battery back up provides up to 48 hours battery retention time for use with Intle RAID Controller SRCS28X and SRCSAS144E. RoHS compliant

Target Market: Mainstream

Board Form Factor: Battery
