EFFLUVIALTECH® – 110V 3D Printing Plastic Filament Winder EFFLUVIALTECH®

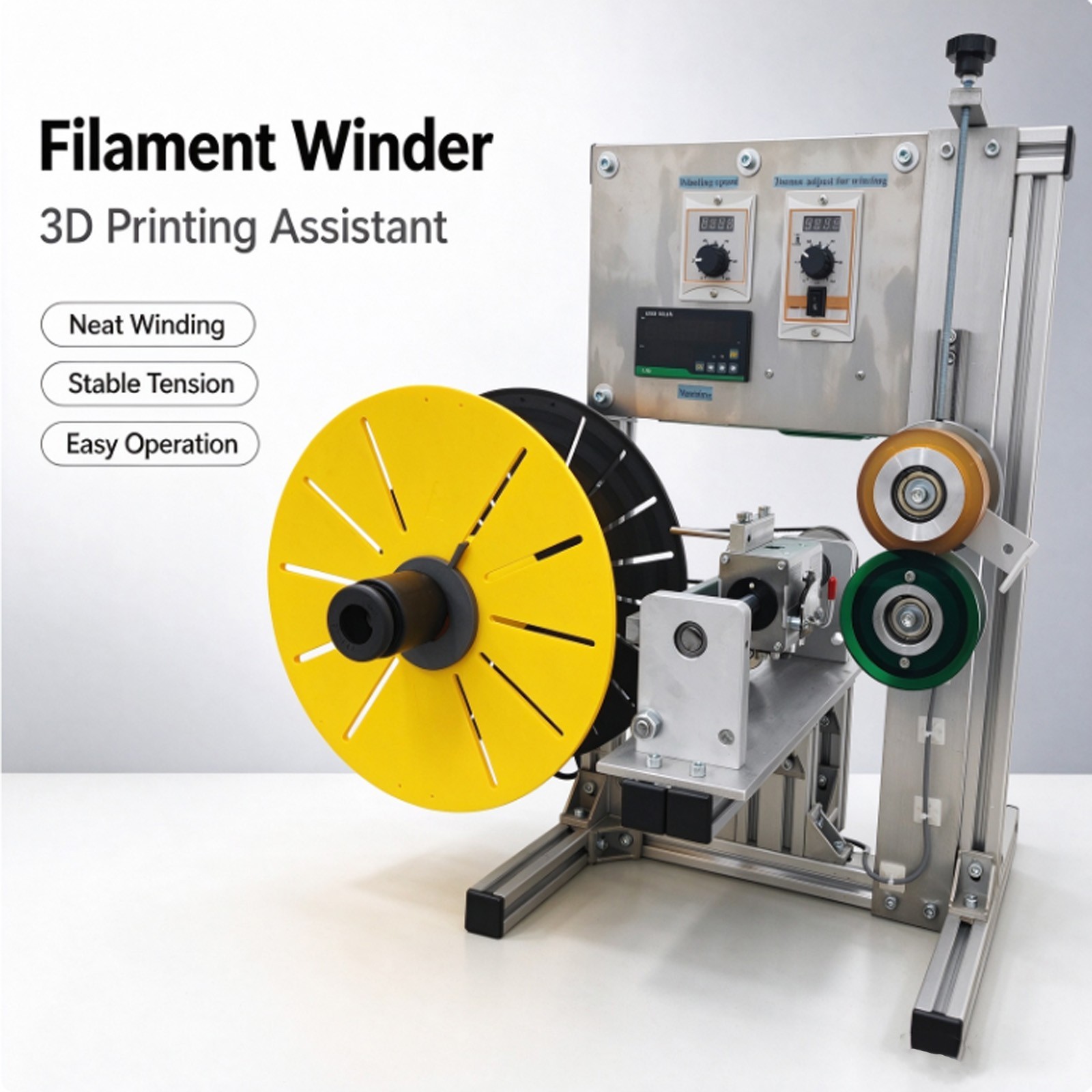

110V 3D Printing Plastic Filament Winder

This machine is specially designed for the 3D printing material production line and is used in conjunction with the extruder. It is used to uniformly and neatly roll the extruded PLA/ABS/PETG and other plastic filaments onto standard material trays, avoiding problems such as wire knotting, loose winding, skew winding, and stretching deformation of different thicknesses.

Product Parameters Rated Voltage110V Rated Power120 W Cable Arrangement MethodReciprocating automatic optical cable arrangement Speed Control MethodVariable resistor speed control, synchronized with the extruder speed Appropriate Loading TrayInner diameter 52 mm (2.05 in) Reeling Speed0 - 18 m/min, adjustable continuously Precautions Safety Guidelines

• After using the machine, be sure to turn off the power and air supply, and perform cleaning and maintenance.
• Do not place tools or other items inside or on top of the machine.
• Always turn off the power and air supply when inspecting the machine.
• If a sealing button malfunctions, to help users check whether the left and right sealing buttons are working properly, you may disable the left or right sealing button in the settings page. After troubleshooting, be sure to restore the settings. During normal operation, disabling either the left or right sealing button is strictly prohibited — the machine must not be operated with only one button active!
• Do not place hands or any part of the body into the machine or near any moving area while the machine is running or before it has come to a complete stop.
• In case of any abnormal condition such as material jamming, press the emergency stop immediately. Only after the machine has come to a complete stop and the power is disconnected may you use proper tools to clear the jam. Never attempt to handle it with bare hands.

Product Details and Advantages Compatibility with Reels of Different Specifications

Equipped with an adjustable reel holder, it adapts to reels with various inner diameters and widths, flexibly meeting the winding demands of different specifications.

Precise Length Counting Function

Built with a meter counting system, it can accurately measure and set the winding length, and will automatically stop when the set value is reached, facilitating standardized packaging and inventory management.

Wide Compatibility with Various Wires

It is compatible with multiple common 3D printing consumables such as PLA, ABS, PETG, TPU and TPE, satisfying different printing demands.

Easy Operation with One-Touch Start

Fitted with an intelligent control system, it has a simple and intuitive operation interface. After parameter setting, it can be started with one key to automatically complete the whole winding process, reducing manual intervention.

Stable and Controllable Tension

It features a constant tension control function, which automatically adjusts the rotating speed during the winding process to maintain balanced wire tension, preventing the wire from being thinned due to excessive tension or getting loose due to insufficient tension.

Operating Instructions Step-by-Step Guide

1. Turn on the main power switch, and the power indicator light on the control panel will light up.
2. Slowly rotate the speed adjustment knob, gradually increasing from low speed.
3. Match the discharge speed of the front extruder, and keep the winding speed and the discharge speed in sync.
4. The equipment will automatically unwind the wire, and no manual intervention is required throughout the process.
5. When stopping, first set the speed adjustment knob to the 0 position, then turn off the power switch. After the equipment completely stops, cut the wire and remove the finished material tray.

Items Included (021069)

1 × 110V 3D Printing Plastic Filament Winder
