Product description ANMBEST IP67 Level Waterproof and Dustproof RJ45 CAT6 Female to Female Coupler Stable Connection High Speed Transmission
- Plug and connect to join two Ethernet patch cables. No tools are required to connect cables. Plug and play.
- Cat6 specification supports maximum 1Gbps（1000Mbps）Bandwidth 250MHZ signal transmission speed, Compatible with Cat5E/Cat5 ethernet cable.
- It is injection molded from PA66 nylon material, flame retardant, UV resistant, anti-aging, and has a longer service life.
- Perfect solution for outdoor equipment like IP camera, CCTV to prevent water penetration.
Stable Connection
The copper needles uses brass solid terminals and the surface is gold-plated. Stabilize the current and reduce signal loss.
Durable
The RJ45 connector is made of PA66 nylon material, flame retardant, UV resistant, and anti-aging.
IP67 Waterproof
IP67 Waterproof at one ends, Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
Specifications Pins 8P8C Connection Type RJ45 Transmission Category CAT6 Transfer Speed 10 Mbps, 100 Mbps, 1000 Mbps network Rated Current 1.5A Rated Voltage 125VAC, 75VDC Insulation Resistance greater than 500MΩ Withstand Voltage(AC.V)1min 1000V Durability more than 500 mating&unmating cycles Shell Material nylon PA66 Socket Contact Pin Material 0.5mm diameter phosphor copper wire Contact Pin Plating 6FU gold Waterproof Rubber Ring silicone Working Temperature -40℃~120℃ Relative Humidity less than 90% Flame Retardant Rating UL94V-0 Installation Method STEP1
Disassemble the connector and prepare the network cable
STEP2
Put the female seat into the mounting hole and put on the waterproof cover rubber ring
STEP3
The crystal heads of the network cable pass through the waterproof components in sequence
STEP4
Tighten. The installation is complete
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 188 4.4 out of 5 stars 131 4.4 out of 5 stars 73 4.5 out of 5 stars 149 4.2 out of 5 stars 15 Price $19.99$19.99 $22.99$22.99 $16.99$16.99 $36.99$36.99 $40.99$40.99 Ingress Protection IP67 IP67 IP67 IP67(with cap) IP67 Size M22 M20 M20 M24 M20

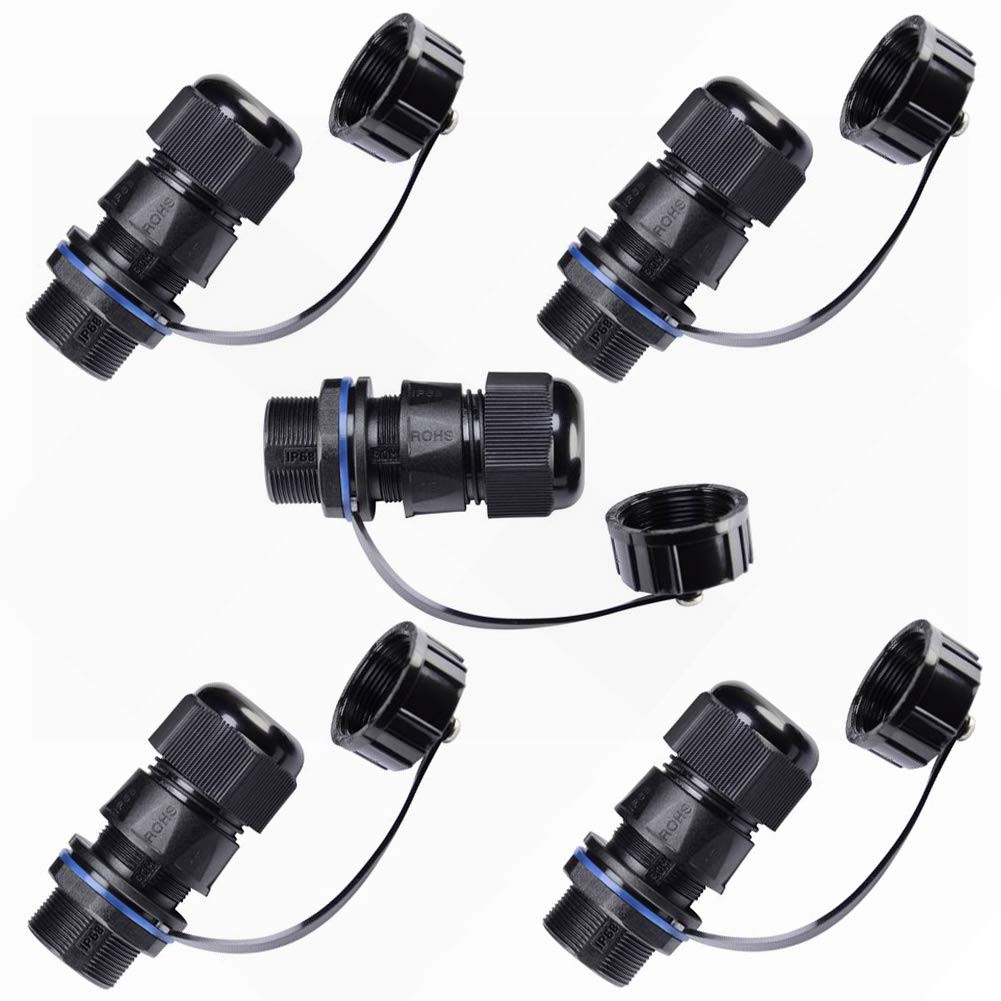

- A panel-mounted RJ45 connector with a waterproof cap is a type of connector designed to provide secure and protected Ethernet connectivity in harsh or outdoor environments. It features a standard RJ45 interface for connecting Ethernet cables and a mounting mechanism that allows it to be securely installed on a panel or enclosure.
- IP67 WATERPROOF: The Waterproof RJ45 Connector are IP 67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- DURABLE: This RJ45 connector is made of PA66 nylon native environmentally friendly injection molding material, flame retardant, UV resistant, and anti-aging.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
