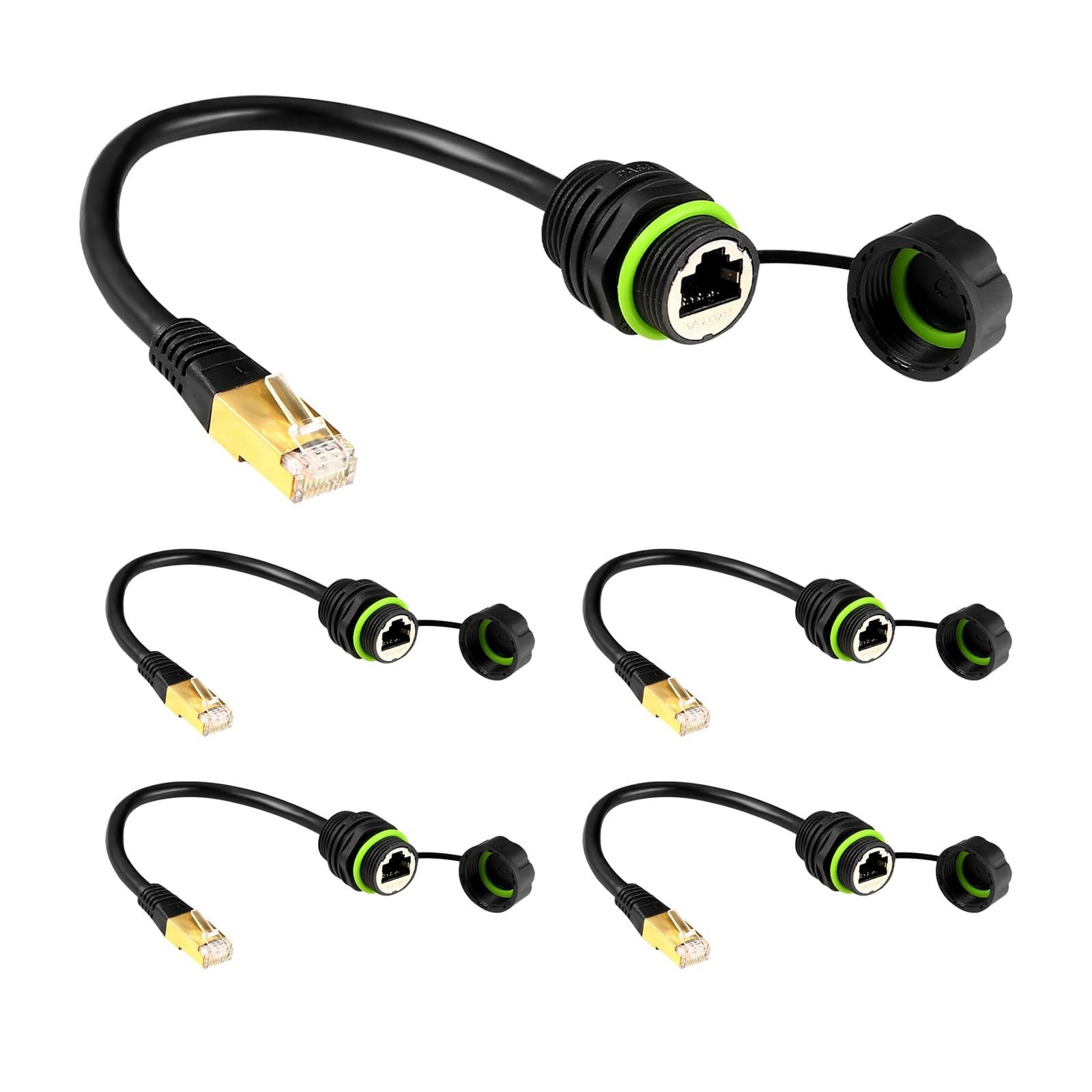

5PCS Panel Mounting RJ45 Waterproof Connector M20 Cat5/5e/6 Ethernet LAN Cable Coupler IP67 Waterproof with Dust Cap Cover 25cm Network Cable for Outdoor Network

Specifications: Number of cores: 8 PIN Waterproof rating: IP67 Connection type: RJ45 Network cable length: 25cm/9.84inch Flame retardant rating: UL94V-0 Connection method: plug type + thread pressure lock Mounting hole size: 20.8mm x 19.8mm, Case wall thickness: Threaded type: >3mm, through-hole type: 0.3~5mm Connector transmission classification: CAT6 Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network Electrical parameters: Rated current: 1.5A Rated voltage: 125V Insulation resistance: 1000 M Min. @ 500 VDC Compressive strength: 1000V AC or 1500V DC @ 0.5mA 50Hz or 60Hz one minute Contact resistance: 20 m Max Material: Main Body: Nylon PA66 (UL94V-0) Socket contact pin: 0.5mm diameter phosphor copper wire CAT6 Module: Zinc Alloy Contact pin: Copper with Gold plated 3 Waterproof Ring: Silicone Environmental conditions: Working temperature: -40105Celsius Atmospheric pressure: 86106kPa Relative humidity: 90% RH Package Included: 5x Waterproof RJ45 Connector

Features

• RJ45 ConnectorThis is an RJ45 male to female panel mount connector which can either be connected to an RJ45 JACK or used as a network extension cable.It is ideal for extending an ethernet connection by connecting 2 short network cables together.
• Faster Speed and Better ShieldingThe bandwidth of CAT6 (backward compatible with any Cat5 and Cat6 networks) is 250MHz, and the maximum transmission rate is 10Gb/s. Zinc Alloy shielding module can better prevent the environment from interfering with the network cable and ensure the network speed.
• IP67 Waterproof and DustproofThe grade of waterproof and dust-proof both meet the requirements of IP67 standard. Silicon rings and clamping nuts prevent the network parts from moisture and dirt for quality connections.
• Easy InstallationRJ45 male to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
• Widely UseIt is suitable for most outdoor or Chassis network cable. Such as home network, industrial network, stage credit connection, IP camera, ADSL LAN cable, LED equipment, underground engineering, communication field, etc.
