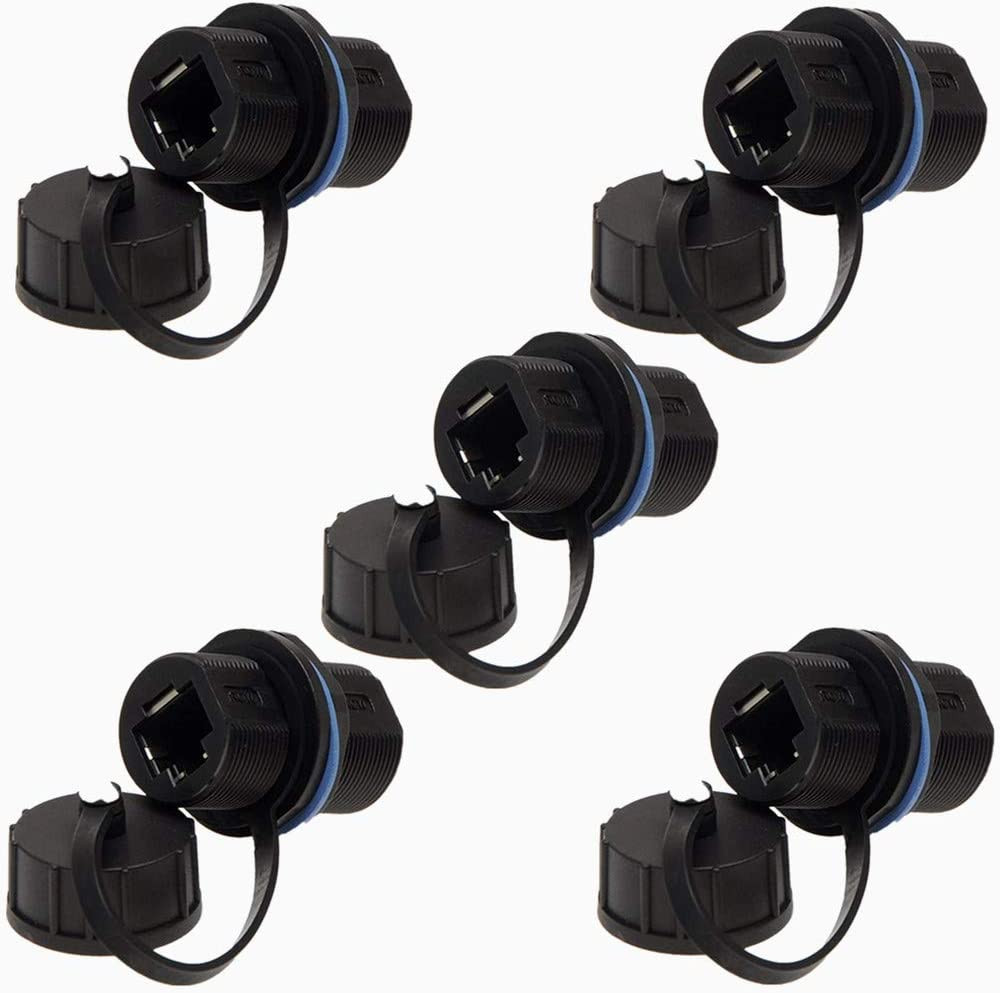

• Shielded RJ45 female to female field installable connector. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
• NO ATTENUATION:The socket contacts are nickel-plated phosphor bronze alloy plugs, and the socket does not need to break or interrupt any connection, so there is no signal attenuation.
• EASY INSTALLATION:No soldering, no installation tools, just plug the standard crystal head directly for quick installation.
• WATERPROOF:The shielded industrial panel mount bulkhead includes a water/dust cap that meets IP67 Water Protection. It is not waterproof Without water/dust cap.
• Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us and we will provide a full refund.

Product Description Stable Connection High Speed Transmission

• The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.
• Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps.
• It is injection molded from PA66 nylon material, flame retardant, UV resistant, anti-aging, and has a longer service life.

Specifications Pins 8P8C Connection Type RJ45 Transmission Category CAT6 Transfer Sspeed 10BASE-T、100 BASE-T、1000 BASE-T、10000BASE-T Rated Current 1.5A Rated Voltage 125VAC, 75VDC Insulation Resistance greater than 500MΩ Withstand Voltage(AC.V)1min 1000V Durability more than 500 mating&unmating cycles Shell Material nylon PA66 Socket Contact Pin Material phosphor copper C5210 Contact Pin Plating 6FU gold Waterproof Rubber Ring silicone Working Temperature -40℃~120℃ Relative Humidity less than 90% Flame Retardant Rating UL94V-0 Installation Method STEP1

Disassemble the connector and prepare the network cable

STEP2

Put the female seat into the mounting hole and put on the waterproof cover rubber ring

STEP3

Put on the nut and tighten

STEP4

Insert the crystal head in the equipment chassis and the network cable outside the chassis. The installation is complete
