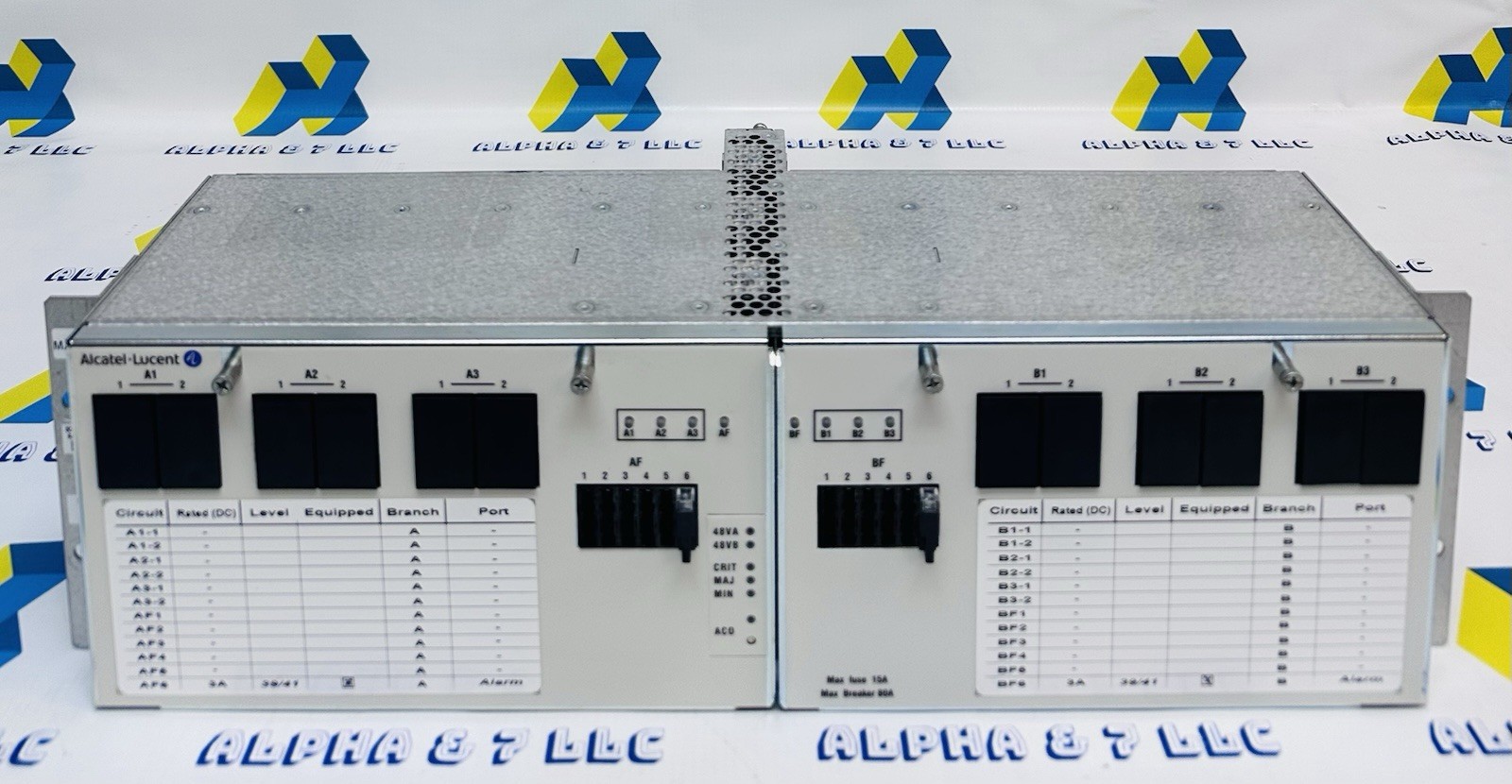

Alcatel-Lucent SAPDUAA DC Power Distribution Panel with RALARMAA Alarm Module

CONDITION

New old stock, unused, removed from an electrical enclosure. No original box. May show minor mounting marks, scuffs, or storage wear from installation and removal. Plastic wrapping is shown in some photographs.

PRODUCT DETAILS

• Brand: Alcatel-Lucent

• Model: SAPDUAA

• Base part number: 3CM02902AA

• Full chassis label: 3CM02902AAAE01

• Nominal voltage: -48VDC / -60VDC

• Assembly label marking: 8 × 100A DC maximum

• Front-panel markings: Maximum fuse 15A; maximum breaker 80A

• Separate A and B distribution sections

• Installed RALARMAA alarm module, labeled 3CM02949AAAC01

• Rear alarm connector and ports labeled Eth A and Eth B

• Rack-mount ears and rear terminal blocks included

• Production-tracking label dated December 2011

SUPPLIED CONFIGURATION

Main breaker positions are fitted with blank covers; no main circuit breakers are included. Fuse holders are shown in positions AF6 and BF6, with the circuit charts identifying these as 3A alarm circuits. Individual fuse contents have not been verified.

INCLUDED

One assembly with the installed alarm module, terminal blocks, fuse holders, and covers shown.

No external cables, manuals, or original box included. Functional testing has not been performed by the seller.

Please verify compatibility and any additional breakers, fuses, or installation components required for your application. You will receive the actual item shown in the photographs.
