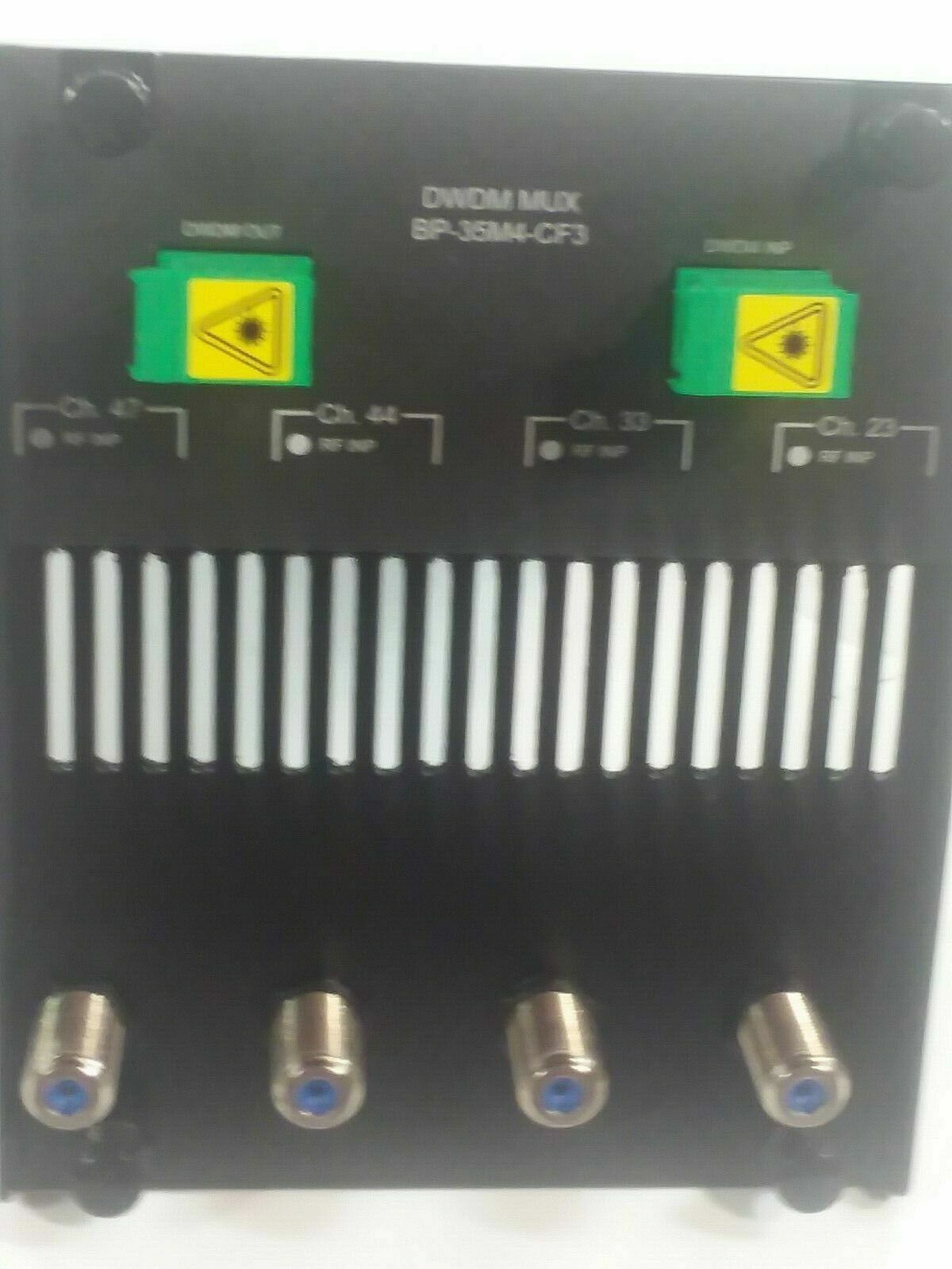

Description: Arris CH3000 BP35M4 CFX Series Optical DWDM Mux Back Plate.ARRIS’ BP‐35M4‐CFx series Optical Mux Back Plates facilitate implementation of Dense Wave Division Multiplexing (DWDM)architectures. DWDM technology can dramatically increase network capacity without requiring that additional fiber be deployed forsuper‐trunking or narrowcasting applications.PRODUCT OVERVIEW• Unique 4‐module‐wide back plates provide multiplexingfunction without need for internal chassis slot• Two model types:– BP‐35M4‐CFx‐1‐00‐AS series for AT3545G Full SpectrumDWDM Transmitters in CH3000 chassis– BP‐35M4‐CFx‐1‐02‐AS series for AT3552 ExternallyModulated Full Spectrum Transmitters in CH3000 chassis• Eliminates four patch cords• 4 channels spaced on standard 100 GHz DWDM ITU grid(4 channel plans available)• Mux optimized for minimum combined insertion loss across allchannels• Flat‐top passband• High optical isolation• SC/APC connectors ensure performance repeatability,compatibility and easy installation and maintenanceFEATURESAsk us about the complete Access Technologies Solutions portfolio:DOCSIS Node Segmentation ® Fiber‐Deep HPON 3.1 ™/RFoG FTTxHeadend Optics‐BP‐35M4‐CFxThe BP‐35M4‐CFx‐1‐00‐AS series back plates provide multiplexing capabilities for ARRIS’s AT3545G series Full Spectrum DWDMTransmitters. One RF input connector per transmitter is provided on these back plates.The BP‐35M4‐CFx‐1‐02‐AS series back plates provide multiplexing capabilities for ARRIS’s AT3552 series Externally Modulated FullSpectrum Transmitters. Dual RF connectors (for separate broadcast and narrowcast inputs) are provided on these back plates.ARRIS’s unique packaging of these 4‐channel multiplexers as back plates that can be easily attached to the rear of the CH3000chassis eliminates the need to allocate internal chassis slots for dedicated multiplexer modules.The pass‐through DWDM input and output ports permit the cascading of all BP‐35M4‐CFx series multiplexers, and facilitate thesequential muxing of multiple individual ITU channels off a single optical fiber.Part #BP-35M4-CF3-1-003-ASbb.New and Used Items:
