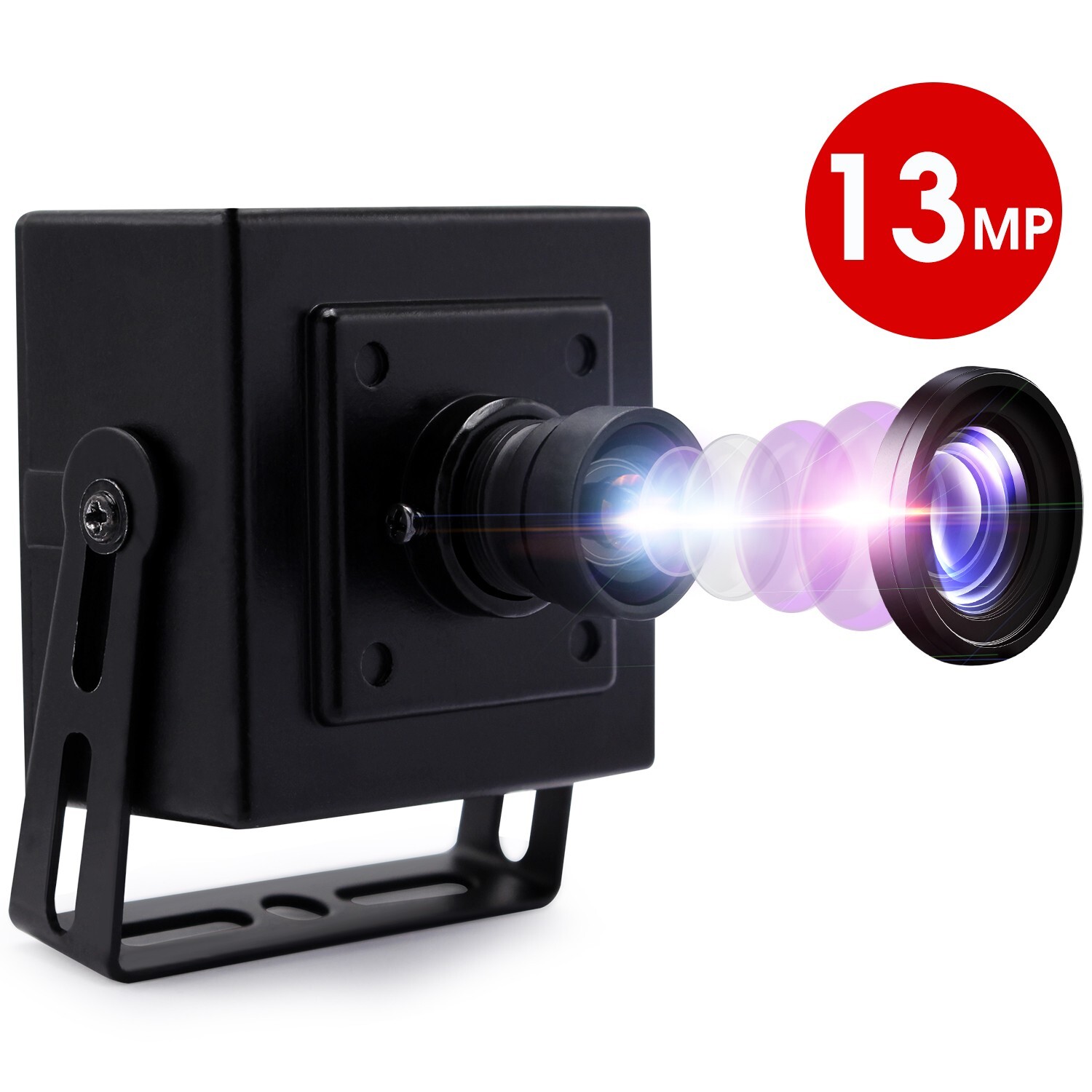

ELP 13MP Webcam USB Camera No distortion lens IMX214 Mini Plug and play free driver usb Camera with MJPEG /YUY2 output
Features:
*13 Megapixel high resolution camera module usb
*HD usb camera
*Camera module with microphone
*13MP USB Camera Module with no distortion lens
*USB2.0 SONY IMX214 CMOS Sensor Camera Module
*Low power consumption – ideal for portable equipment.
*UVC camera for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*4K Camera with UVC.
Specification:
Module No.
ELP-USB13M02-BL100
Sensor
IMX214 (1/3 ) AF
Max. Resolution
3840(H) *2880 (V)
Sensitivity
1000mV/Lux-sec
Image area
6100µmx4524µm
Maximum Image Transfer Rate
3840x2880@10fps MJPEG/ 3264x2448@ 15fps MJPEG
3840x2160@ 15fps MJPEG / 2592x1944@ 20fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG
1280x960@30fps MJPEG/1280x720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
Focus
Fixed lens
Object distance
8CM-100M
Resolution
1000LW/PH (Center)
interface
USB 2.0 High Speed
protocol
USB Video Class（UVC）
S/N Ratio
33dB
Shutter
Rolling shutter/ frame exposure
AGC/AEC/AWB/ABF
Auto
Output Formats
YUYV/MJPEG
Adjustable parameter
Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus
Lens Parameter
Diagonal view angle: 100 degree, FOV: about 80-85 degree
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Operating Voltage
DC5V
Power consumption
220mW
Module Size
38mm × 38mm
Temperature (Operation)
-20°C to 70°C
Temperature (Stable Image)
0°C to 60°C
USB Cable
1M(2M/3M/5M Optional)
Operating system request
Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, Tablet external, evaluator, Medical Equipment, door bell and button system, machinery equipment, all-in-one machine,
simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, Industrial camera, micro HD surveillance, Medical auxiliary equipment, etc.
Effect Image:(Important: The image has a little pink color)
