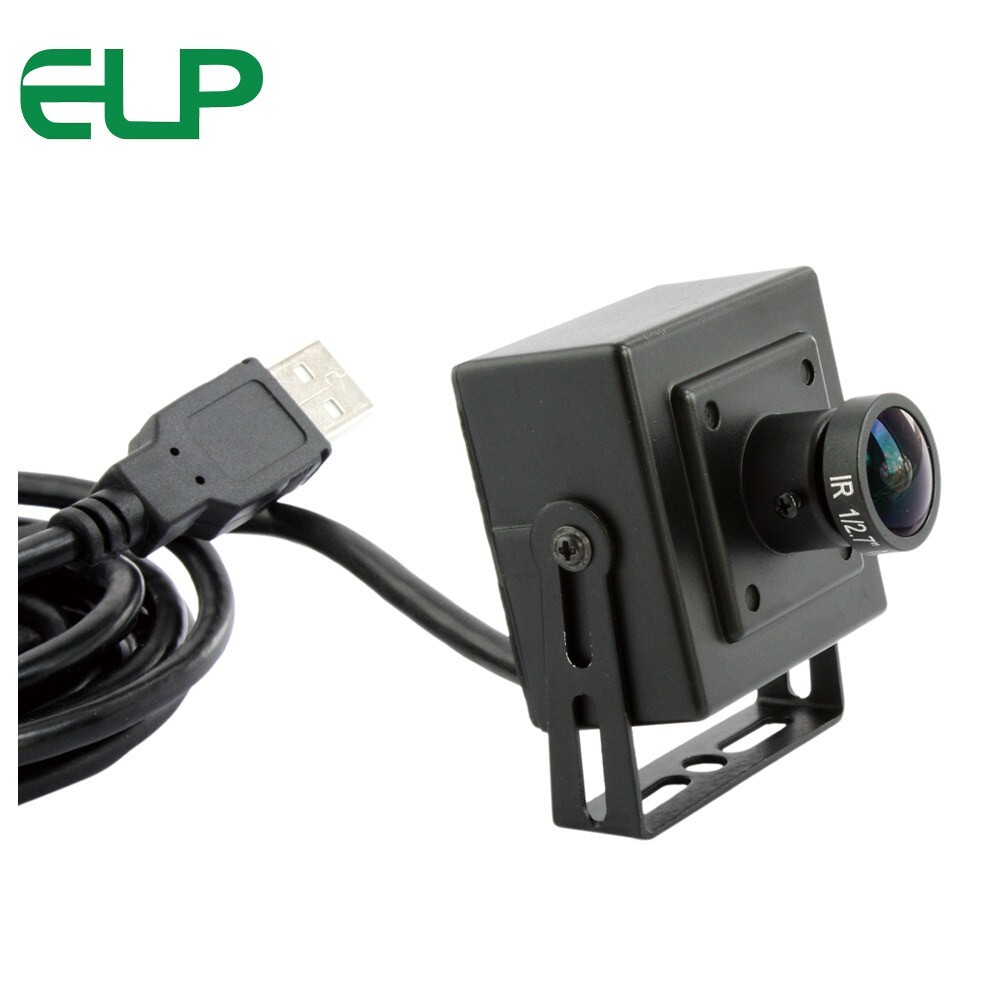

*Super high resolution 13mp 3840x2880 USB camera module*1/3 Sony IMX214 sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline 38*38mm and thin profile for embedded applications.
*High quality lens, true and undistorted color image.
Specification:Module No.ELP-USB13M02-BL170Sensor1/3 Sony IMX214 sensorMax. Resolution3840(H) *2880 (V)Sensitivity1000mV/Lux-secImage area6100µmx4524µmMaximum ImageTransfer Rate3840x2880 @10fps MJPEG / 3264x2448 @15fps MJPEG3840x2160 @15fps MJPEG / 2592x1944 @20fps MJPEG2048x1536 @30fps MJPEG / 1600x1200 @30fps MJPEG1920x1080 @30fps MJPEG / 1280x1024 @30fps MJPEG1280x960 @30fps MJPEG / 1280x720 @30fps MJPEG1024x768 @30fps MJPEG / 800x600 @30fps MJPEG640x480 @30fps MJPEG / 320x240 @30fps MJPEGFocusAutoObject distance8CM-100MResolution1000LW/PH (Center)interfaceUSB 2.0 High SpeedprotocolUSB Video Class（UVC）S/N Ratio33dBShutterRolling shutter/ frame exposureAGC/AEC/AWB/ABFAutoOutput FormatsYUYV/MJPEGAdjustable Balance,Exposure FocusLens ParameterSize: 1/3, FOV: 75Degree
Relative Illumination (Sensor): 70%
IR Filter: 650±10nmLED board power connectorSupport 2P-2.0mm socketPower supplyUSB BUS POWER 4P-2.0mm socketOperating VoltageDC5VPower consumption220mWModule Size38mm*38mmTemperature (Operation)-20°C to 70°CTemperature (Stable Image)0°C to 60°CUSB Cable1M(2M/3M/5M Optional)Operating system requestWin XP/Vista/Win7/Win8 /
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC13Megapixel Webcam 3840x2880 No distortion USB Camera For Linux Windows Mac AndroidApplications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
Product effect show: (The image has a little pink color) Important:
