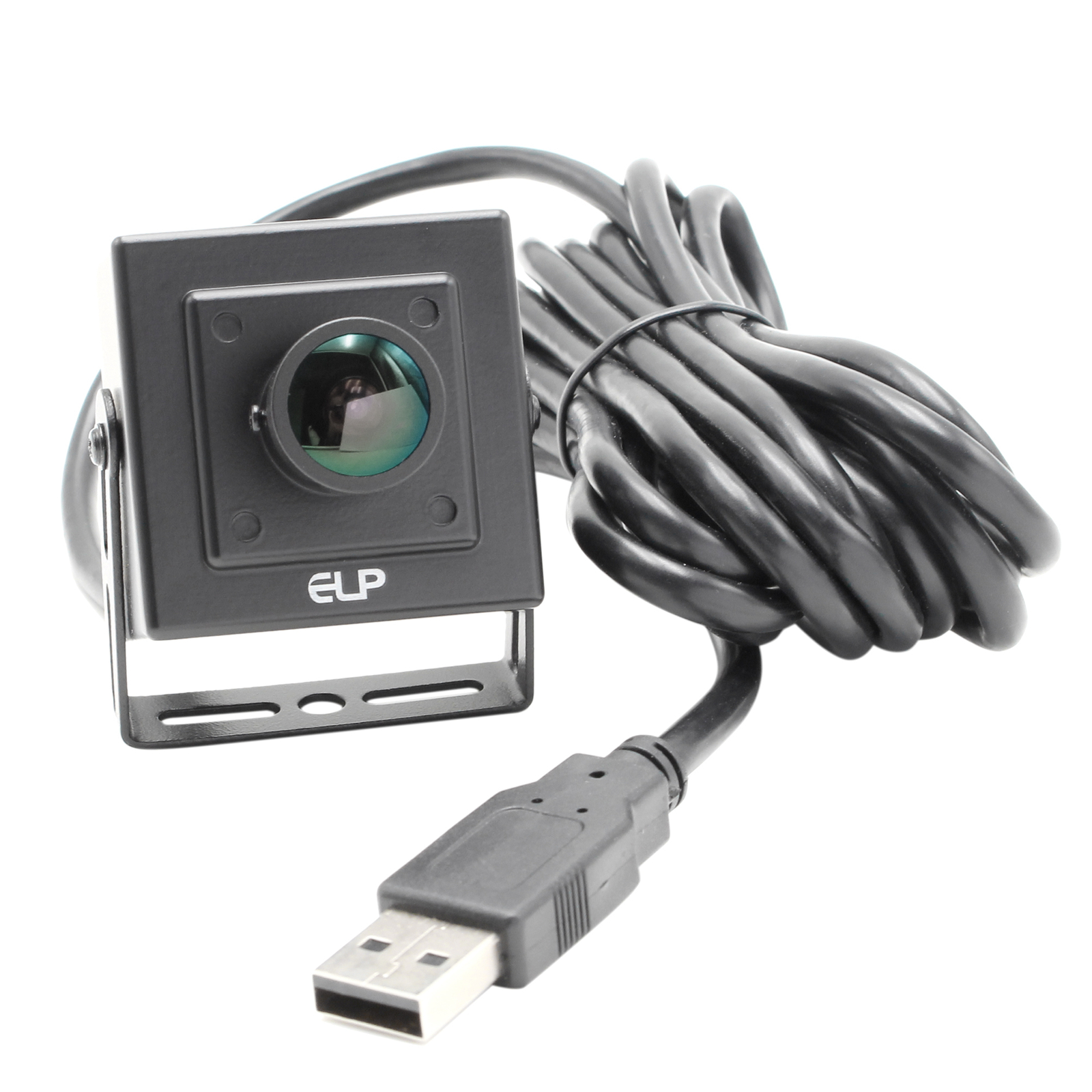

ELP 170degree fisheye Lens Webcam 2.0megapixel H.264 30fps 1080P USB video camera 1/2.9" Sony IMX322 CMOS security system CCTV Camera
The HD 1080P USB CMOS board camera module is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Features:
*1080P USB2.0 SONY IMX322 Low illumination Color CMOS Sensor USB Camera
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver H.264 30 fps in 1920X1080 resolution.
*High quality lens, 2.1/2.8/3.6/6/8/12/16mm optional.
*Low power consumption – ideal for portable equipment.
*Camera with UVC.
Specification:
Model
ELP-USBFHD06H-BL170
Sensor
IMX322
Lens Size
1/2.9 inch
Pixel Size
12.8X11.6 mm
image area
2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution
1080P
Compression format
H264 /MJPEG / YUV2（YUYV）
Resolution & frame
H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio
42dB
Dynamic Range
86dB
Sensitivity
5.0V/lux-sec@550nm
Mini illumination
0. 01 lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class（UVC）
Support OTG Protocol
USB2.0 OTG
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
Standard 3.6mm, optional 2.1/2.5/2.8/6mm/FOV(D)170 Degree/FOV(D)180 Degree
Digital audio
High quality digital MIC, support single, dual channel
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Power supply
DC5V
Operating Voltage
140mA~190mA
Working current
-10～70℃
Working temperature
-20～85℃
Board size /Weight
38X38mm（Compatible 32X32mm）/ about 30g
Cable
Standard 1M / optional 2M,3M,5M
Operating system request
Win7 Win8
Linux 2.6 or above
Android 4.0 or above
Application:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
Used for all kinds of machine as below :
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player,LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc.
