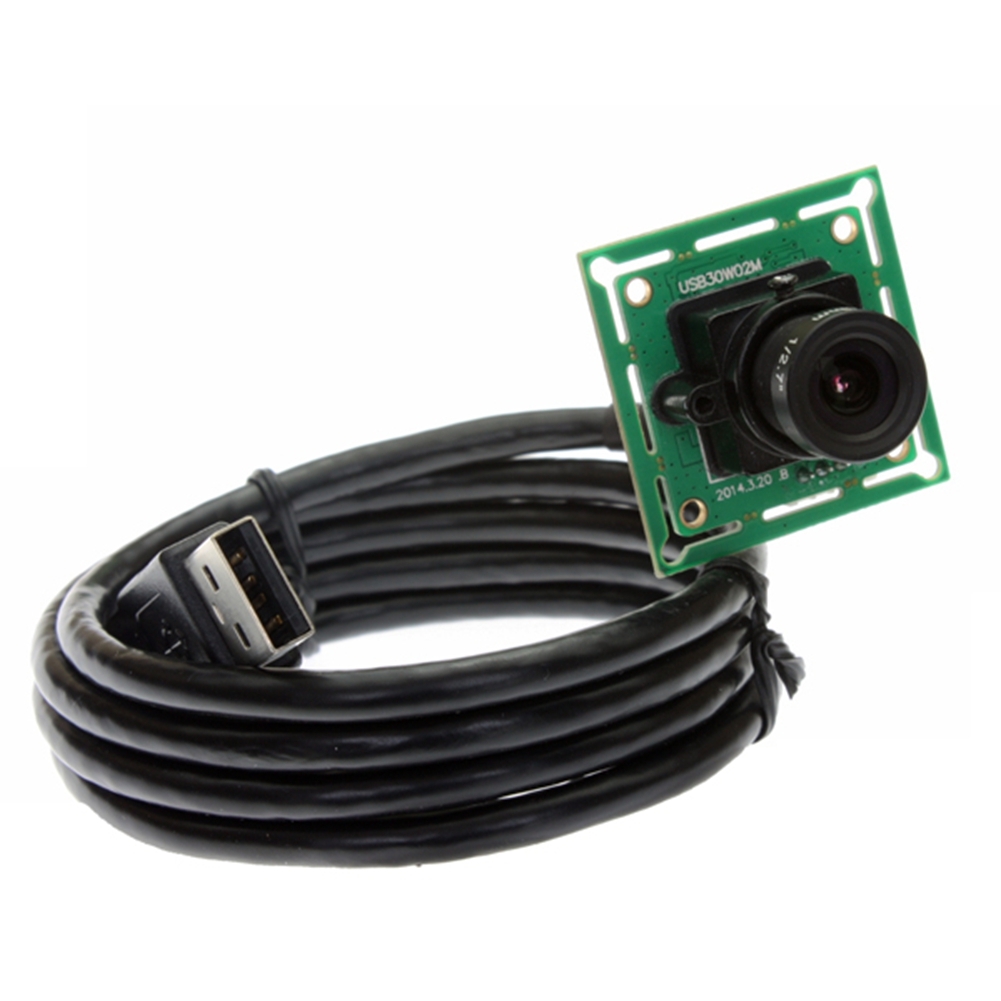

VGA USB Camera module
Main Specifications
Model
ELP-USB30W02M-L36
Sensor
OV7725
Lens Size
1/4 inch
Pixel Size
6.0um X 6.0um
image area
3984 µm x 2952 µm
Max. Resolution
640(H)X480(V)
Compression format
MJPEG / YUV2（YUYV）
Resolution & frame
640X480 MJPEG@ 60fps YUY2@ 30fps/ 480X480 MJPEG@ 30fps YUY2@ 30fps
450X450 MJPEG@30fps YUY2@ 30fps/ 352X288 MJPEG@ 30fps YUY2@ 30fps
320X240 MJPEG@30fps YUY2@ 30fps/ 240X240 MJPEG@ 30fps YUY2@ 30fps
S/N Ratio
50dB
Dynamic Range
60dB
Sensitivity
3.8V/lux-sec@550nm
Mini illumination
0. 2lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class（UVC）
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure
Lens Parameter
Standard 3.6mm, optional 2.1/2.5/2.8/6mm/ FOV(D)170 Degree
Night vision
Need to equipped IR Sensor Lens and IR LED Board
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Power supply
DC5V
Operating Voltage
100mA~160mA
Working current
-10～70℃
Working temperature
-20～85℃
Board size /Weight
32X32mm（Compatible 26X26mm）/ about 30g
Cable
Standard 1M / optional 2M,3M,5M
Operating system request
WinXP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro
HD surveillance, endoscope, Medical auxiliary equipment, etc.
