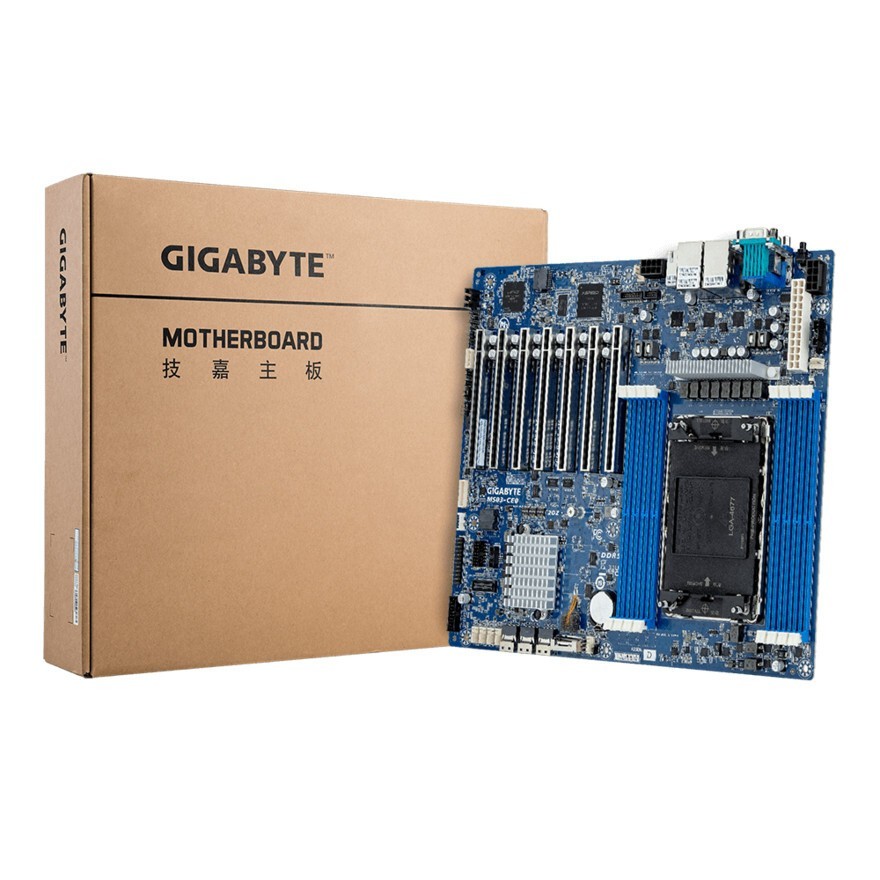

Gigabyte MS03-CE0 Server-Mb (ATX/LGAC4677) Intel Xeon Gold 6421N qs 32c/64T

Product Description

Package include:

1XGIGABYTEMS03-CE0

1x Intel® Xeon® Gold 6421N qs

Motherboard

Board Size

ATX
304.8W x 244D mm

Processor Supported

5th Generation Intel®Xeon®Scalable Processors
4th Generation Intel®Xeon®Scalable Processors
Intel®Xeon®CPU Max Series
Single processor, CPU TDP up to 350W

Socket

1 x LGA 4677
Socket E

Chipset Description

Intel®C741 Chipset

Memory Type

8 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported

5th Gen Intel®Xeon®: Up to 5600MHz
4th Gen Intel®Xeon®: Up to 4800MHz
Intel®Xeon®Max Series: Up to 4800MHz

Integrated Network

2 x 1Gb/s LAN ports (Intel®I210-AT)
NCSI function supported

CPU

Hello! Dear customer

This CPU is the QS version, not the official Collection4th Generation Intel® Xeon® Scalable ProcessorsCode NameProducts formerly Sapphire RapidsVertical SegmentServerProcessor Number6421NLithographyIntel 7Recommended Customer Price$2,368.00Use Specifications
Total Cores32Total Threads64Max Turbo Frequency3.60 GHzProcessor Base Frequency1.80 GHzCache60 MBTDP185 W

Intel® Speed Select Technology - Performance Profile (Intel® SST-PP)

ConfigActive CoresBase Information
Marketing StatusLaunchedLaunch DateQ1'23Servicing StatusBaseline ServicingEmbedded Options AvailableYes

Memory Specifications
Max Memory Size (dependent on memory type)4 TBMemory TypesUp to DDR5 4400 MT/s 1DPC and 2DPCMax # of Memory Channels8ECC Memory Supported‡Yes

Expansion Options
Scalability1S OnlyPCI Express Revision5Max # of PCI Express Lanes80

Package Specifications
Sockets SupportedFCLGA4677Package CarrierE1BDTS Max95 °CTCASE85Package Size77.5mm x 56.5mm

Intel® On Demand Available Upgrades

Activation Model ProductsQATDLBDSAIAASGX512Analytics Suite 11SGX512512

Advanced Technologies
Intel® On Demand Activation ModelYesIntel® Data Streaming Accelerator (DSA)1 default devicesIntel® Speed Select Technology – Core PowerYesIntel® Speed Select Technology – Turbo FrequencyYesIntel® Deep Learning Boost (Intel® DL Boost) on CPUYesIntel® Speed Select Technology - Performance ProfileYesIntel® Resource Director Technology (Intel® RDT)YesIntel® Speed Shift TechnologyYesIntel® Turbo Boost Technology ‡2Intel® Hyper-Threading Technology ‡YesIntel® Transactional Synchronization ExtensionsYesIntel® 64 ‡YesInstruction Set ExtensionsIntel® AMX |Intel® SSE4.2 |Intel® AVX |Intel® AVX2 |Intel® AVX-512# of AVX-512 FMA Units2

Security & Reliability
Intel® Crypto AccelerationYesIntel® QuickAssist Software AccelerationYesIntel® Platform Firmware Resilience SupportYesIntel® Control-Flow Enforcement TechnologyYesIntel® Total Memory EncryptionYesIntel® AES New InstructionsYesIntel® Software Guard Extensions (Intel® SGX)Yes with Intel® SPSDefault Maximum Enclave Page Cache (EPC) Size for Intel® SGX128 GBIntel® OS GuardYesIntel® Trusted Execution Technology ‡YesExecute Disable Bit ‡YesIntel® Boot GuardYesIntel® Run Sure TechnologyYesMode-based Execute Control (MBEC)YesIntel® Virtualization Technology (VT-x) ‡YesIntel® Virtualization Technology for Directed I/O (VT-d) ‡YesIntel® VT-x with Extended Page Tables (EPT) ‡Yes

1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed®AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Integrated Audio Controller

N/A

Integrated SAS Controller

N/A

Integrated SATA Controller

3 x SlimSAS connectors for 12 x SATA 6Gb/s

Support RAID Function

Intel®SATA RAID 0/1/10/5

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_4: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU, shared with Slot_3
Slot_3: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU
Slot_2: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU, shared with Slot_1
Slot_1: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280 cards

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

Rear I/O Connectors

4 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010

OS Driver Supported

Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)

Server Management

Aspeed®AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

·HTML5 KVM

·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

·Sensor Reading History Data

·FRU Information

·SEL Log in Linear Storage / Circular Storage Policy

·Hardware Inventory

·Fan Profile

·System Firewall

·Power Consumption

·Power Control

·Advanced power capping

·LDAP / AD / RADIUS Support

·Backup & Restore Configuration

·Remote BIOS/BMC/CPLD Update

·Event Log Filter

·User Management

·Media Redirection Settings

·PAM Order Settings

·SSL Settings

·SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MS03-CE0
1 x I/O shield
1 x Quick start guide
3 x Carrier clips
1 x SlimSAS to 4 x SATAIII 6Gb/s cable

Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MS03-CE0
10 x I/O shields
30 x Carrier clips

Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MS03CE0MR-000-3*/1*
Bulk: 9MS03CE0NR-000-3*/1*

Part Numbers:

- I/O shield: 12AIO-MS03CE-00R
- SlimSAS to 4 x SATA cable:
