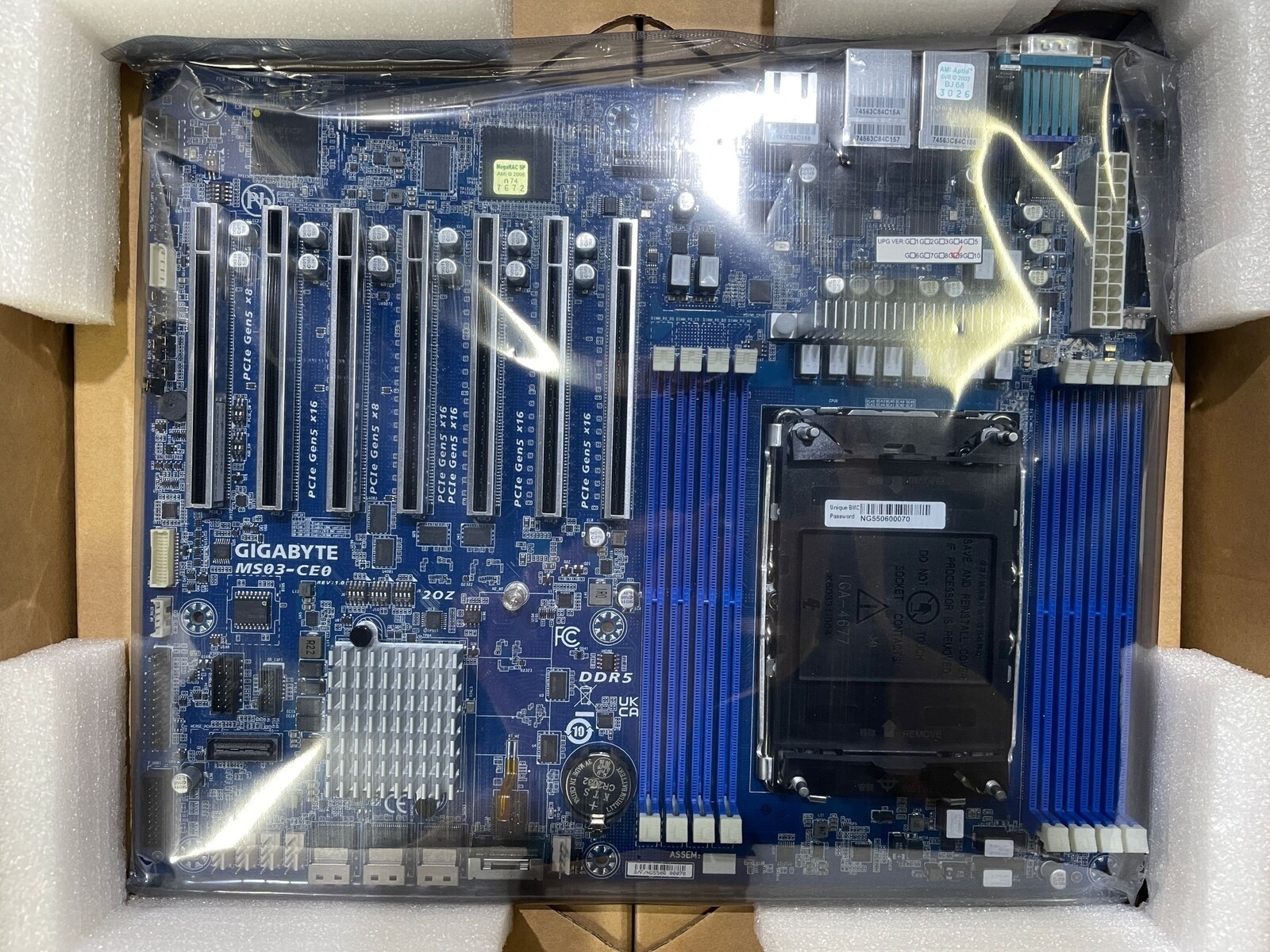

Gigabyte MS03-CE0 Server-Mb (ATX/LGAC4677) Intel Xeon Gold 6421N qs 32c/64T
Product Description
Package include:
1XGIGABYTEMS03-CE0
1x Intel® Xeon® Gold 6421N qs
Motherboard
Board Size
ATX
304.8W x 244D mm
Processor Supported
5th Generation Intel®Xeon®Scalable Processors
4th Generation Intel®Xeon®Scalable Processors
Intel®Xeon®CPU Max Series
Single processor, CPU TDP up to 350W
Socket
1 x LGA 4677
Socket E
Chipset Description
Intel®C741 Chipset
Memory Type
8 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
5th Gen Intel®Xeon®: Up to 5600MHz
4th Gen Intel®Xeon®: Up to 4800MHz
Intel®Xeon®Max Series: Up to 4800MHz
Integrated Network
2 x 1Gb/s LAN ports (Intel®I210-AT)
NCSI function supported
CPU
Hello! Dear customer
This CPU is the QS version, not the official version
EssentialsProduct Collection4th Generation Intel® Xeon® Scalable ProcessorsCode NameProducts formerly Sapphire RapidsVertical SegmentServerProcessor Number6421NLithographyIntel 7Recommended Customer Price$2,368.00Use ConditionsServer/EnterpriseCPU SpecificationsTotal Cores32Total Threads64Max Turbo Frequency3.60 GHzProcessor Base Frequency1.80 GHzCache60 MBTDP185 WIntel® Speed Select Technology - Performance Profile (Intel® SST-PP)ConfigActive CoresBase InformationMarketing StatusLaunchedLaunch DateQ1'23Servicing StatusBaseline ServicingEmbedded Options AvailableYesMemory SpecificationsMax Memory Size (dependent on memory type)4 TBMemory TypesUp to DDR5 4400 MT/s 1DPC and 2DPCMax # of Memory Channels8ECC Memory Supported‡YesExpansion OptionsScalability1S OnlyPCI Express Revision5Max # of PCI Express Lanes80Package SpecificationsSockets SupportedFCLGA4677Package CarrierE1BDTS Max95 °CTCASE85Package Size77.5mm x 56.5mmIntel® On Demand Available UpgradesActivation Model ProductsQATDLBDSAIAASGX512Analytics Suite 11SGX512512Advanced TechnologiesIntel® On Demand Activation ModelYesIntel® Data Streaming Accelerator (DSA)1 default devicesIntel® Speed Select Technology – Core PowerYesIntel® Speed Select Technology – Turbo FrequencyYesIntel® Deep Learning Boost (Intel® DL Boost) on CPUYesIntel® Speed Select Technology - Performance ProfileYesIntel® Resource Director Technology (Intel® RDT)YesIntel® Speed Shift TechnologyYesIntel® Turbo Boost Technology ‡2Intel® Hyper-Threading Technology ‡YesIntel® Transactional Synchronization ExtensionsYesIntel® 64 ‡YesInstruction Set ExtensionsIntel® AMX |Intel® SSE4.2 |Intel® AVX |Intel® AVX2 |Intel® AVX-512# of AVX-512 FMA Units2Security & ReliabilityIntel® Crypto AccelerationYesIntel® QuickAssist Software AccelerationYesIntel® Platform Firmware Resilience SupportYesIntel® Control-Flow Enforcement TechnologyYesIntel® Total Memory EncryptionYesIntel® AES New InstructionsYesIntel® Software Guard Extensions (Intel® SGX)Yes with Intel® SPSDefault Maximum Enclave Page Cache (EPC) Size for Intel® SGX128 GBIntel® OS GuardYesIntel® Trusted Execution Technology ‡YesExecute Disable Bit ‡YesIntel® Boot GuardYesIntel® Run Sure TechnologyYesMode-based Execute Control (MBEC)YesIntel® Virtualization Technology (VT-x) ‡YesIntel® Virtualization Technology for Directed I/O (VT-d) ‡YesIntel® VT-x with Extended Page Tables (EPT) ‡Yes
1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed®AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Integrated Audio Controller
N/A
Integrated SAS Controller
N/A
Integrated SATA Controller
3 x SlimSAS connectors for 12 x SATA 6Gb/s
Support RAID Function
Intel®SATA RAID 0/1/10/5
Expansion Slot
Slot_7: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_4: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU, shared with Slot_3
Slot_3: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU
Slot_2: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU, shared with Slot_1
Slot_1: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280 cards
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Rear I/O Connectors
4 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010
OS Driver Supported
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Server Management
Aspeed®AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
·Dashboard
·HTML5 KVM
·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
·Sensor Reading History Data
·FRU Information
·SEL Log in Linear Storage / Circular Storage Policy
·Hardware Inventory
·Fan Profile
·System Firewall
·Power Consumption
·Power Control
·Advanced power capping
·LDAP / AD / RADIUS Support
·Backup & Restore Configuration
·Remote BIOS/BMC/CPLD Update
·Event Log Filter
·User Management
·Media Redirection Settings
·PAM Order Settings
·SSL Settings
·SMTP Settings
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Bundle
1 x MS03-CE0
1 x I/O shield
1 x Quick start guide
3 x Carrier clips
1 x SlimSAS to 4 x SATAIII 6Gb/s cable
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MS03-CE0
10 x I/O shields
30 x Carrier clips
Carton dimensions: 600 x 473 x 495 mm
Ordering Information
Retail: 9MS03CE0MR-000-3*/1*
Bulk: 9MS03CE0NR-000-3*/1*
Part Numbers:
- I/O shield: 12AIO-MS03CE-00R
- SlimSAS to 4 x SATA cable: 25CFM-600700-A4R
