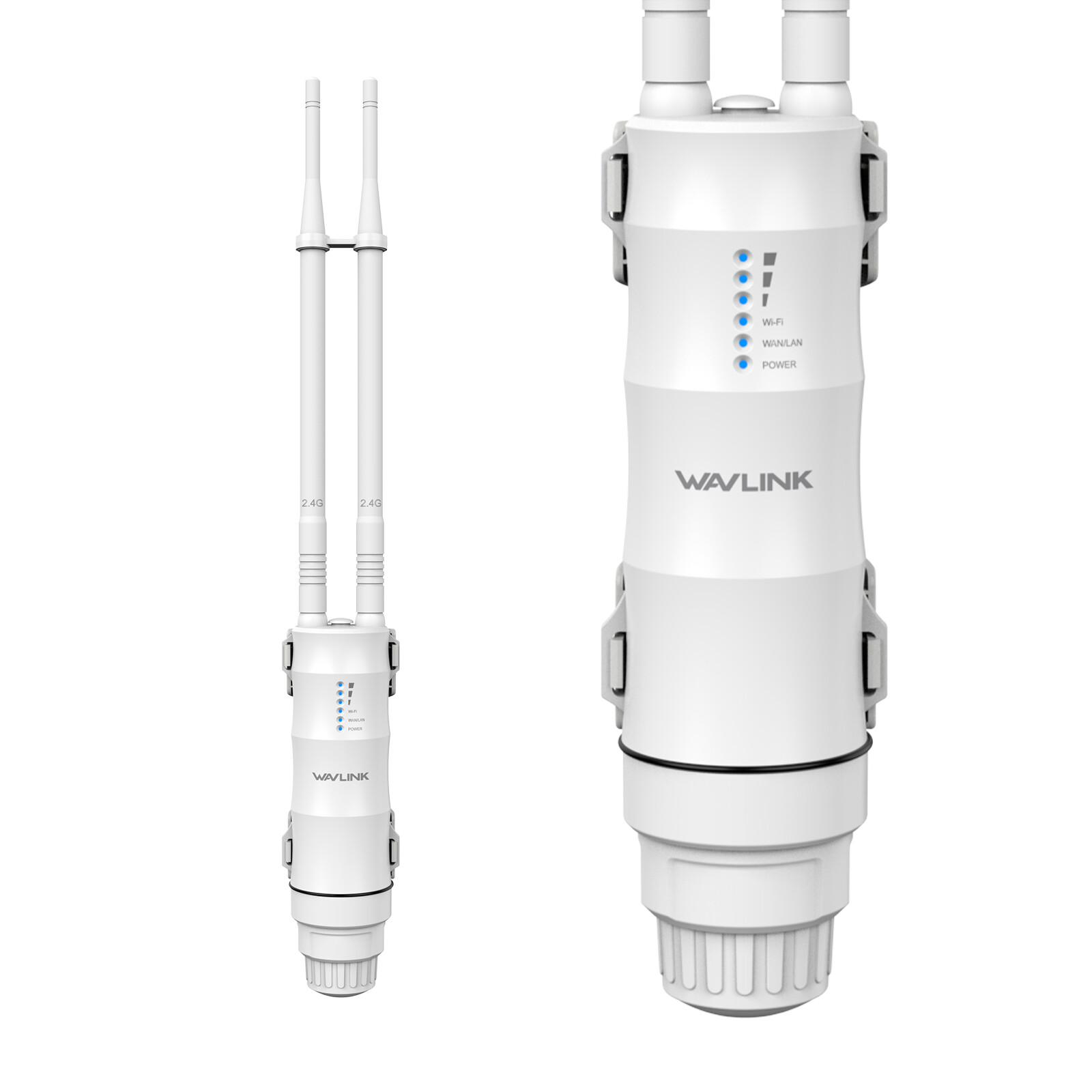

300Mbps, 2.4Ghz WAVLINK N300 Wireless Outdoor Access Point with PoE Powered, WAN/LAN Port, Waterproof,
Outdoor Wi-Fi Extender Long Range with AP/Router/Repeater Modes, 2x7 dBi Directional AntennasPower Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be
consolidated into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with
passive PoE and also supports active PoE. You can use and connect your own active switch.
IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued
operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates.
It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F),
and has 15KV ESD and 6KV lightning protection.
Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage
of an existing wireless network. Router mode creates an instant private wireless network,
enabling multiple devices to share it. AP mode converts a wired network to a wireless one.
AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and
relay the signal from an access point.
Outdoor Access Point: It has a maximum coverage range of 150 meters, supports up to 32 devices,
and provides 2.4GHz, 300Mbps, high-speed, and 100M Ethernet ports. Simple settings enable wireless
optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual environment.)
Single-Band Range Extender: Powered by 802.11n Wi-Fi technology, you can enhance your existing wireless
coverage even in single-band range, providing speeds of up to 300Mbps on the 2.4GHz band.
This allows you to enjoy high-speed downloading of your games, videos, and other files even in public areas.
Specification
1.Model: WL-WN570HN2-B
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 b/g/n
6.Frequency Band/Speed: 2.4GHz(300Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 150m(Change with the Actual Environment)
In the Box
1x N300 Outdoor Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.
1200Mbps, 2.4Ghz+5Ghz
WAVLINK AC1200 Dual Band Outdoor Access Point - Expand Your Wi-Fi Coverage to the Vast Outdoors!
The WAVLINK High-Power Wi-Fi AP/Repeater/Extender is mainly used for providing reliable Wi-Fi service
in large areas such as factories, communities, streets, etc. The AP/Repeater/Extender can take an existing 2.4GHz
or 5GHz wireless signal, repeat it, and extend it to a longer range where it is too far away for the router or
access point to reach. And it supports transmission speeds of up to 300Mbps over 2.4G band and 867Mbps
over 5G band. It has two external antennas, providing even better wireless performance, transmission rates,
and stability. Automatically avoids channel conflicts using its channel selection feature.
Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments.
For example, it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.
Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool,
school, park, playground, or outdoor parking lot.
Waterproof Case Design
The waterproof housing has an IP67 rating for impressive dust and water resistance, allowing it to operate reliably
even when exposed to harsh outdoor conditions or temporary rain.
7dBi Omni Directional Antenna
The AC1200 outdoor access point features two hign-gain 7dBi omni directional antennas, designed to enhance the
WiFi signal equally in all directions, ensuring broader coverage compared to standard directional antennas.
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 200m(Change with the Actual Environment)
Features
- Complies with IEEE 802.11 a/b/g/n/ac standards.
- Simultaneous Dual Band [email protected]+867Mbps@5GHz.
- Easy installation, flexible placement.
- Supports 802.3AT/AF POE and Passive PoE to supply power.
- Supports Router, AP, Repeater modes.
- Support FIT AP with WAVLINK AC manager.
- Supports 128 bit WPA/WPA2(TKIP AES )
- Features 2 x RP-SMA connectors for external antennas.
- Robust weatherproof enclosure design.
- 15KV ESD and 4KV Lightning Protection.
- Features 6 x status LED indicators.
In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
