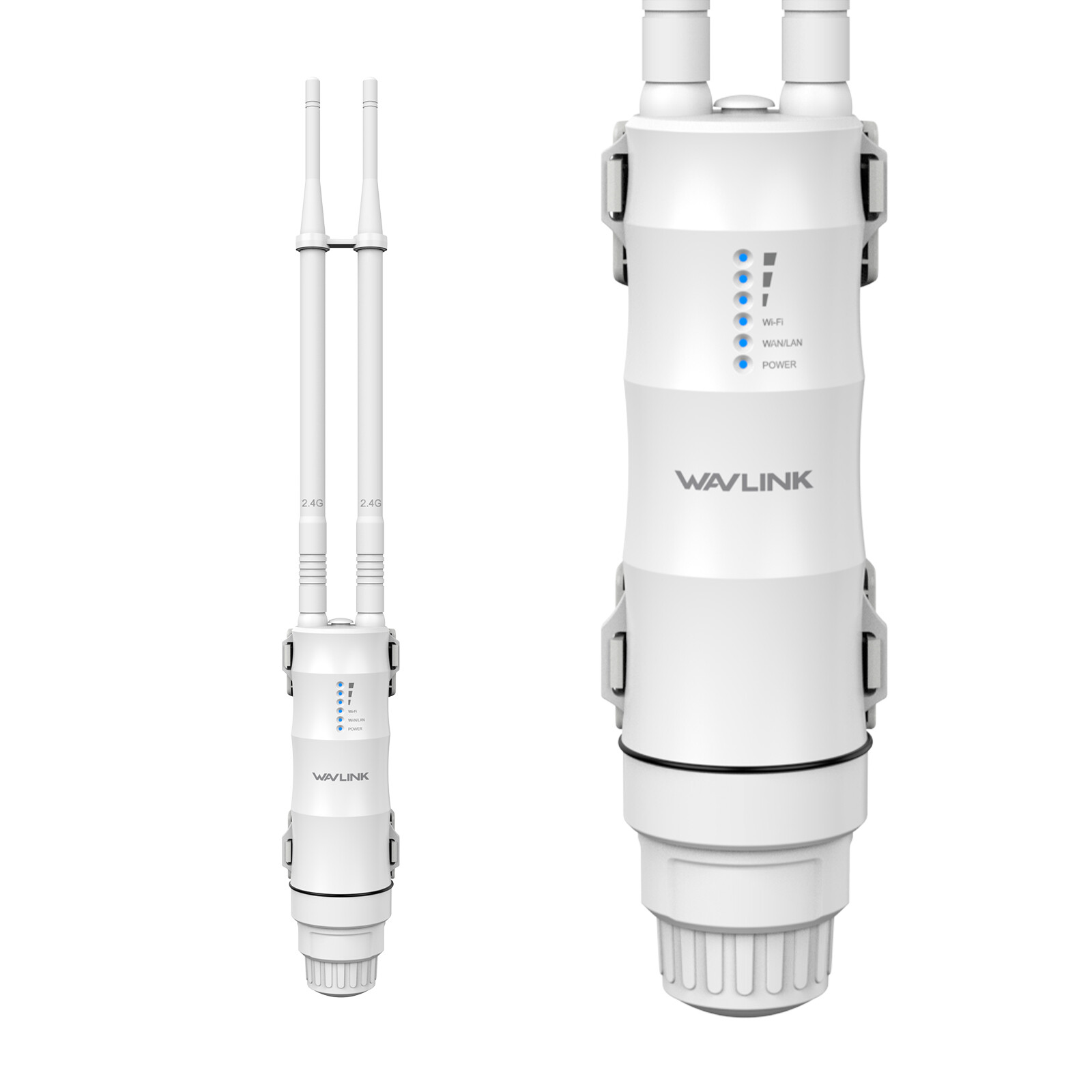

OUTDOOR WIFI SERIESN300VSAC1200 Two weatherproof outdoor access points built for farms, yards, warehouses and remote sites.
Compare the specs side by side, then choose the coverage that fits your project. IP67 & IP65 WEATHERPROOFPoE POWERED15KV ESD PROTECTION📊 Side-by-Side SpecificationsEverything you need to know at a glanceFeatureN300AC1200Wireless StandardIEEE 802.11 b/g/nDual-Band 802.11ac (2.4GHz + 5GHz)Frequency / SpeedSingle-Band 2.4GHz — up to 300Mbps2.4GHz (300Mbps) + 5GHz (867Mbps) — up to 1200MbpsAntennas2 × 7dBi Omni-Directional4 × 7dBi Omni-Directional (2 × 2.4GHz + 2 × 5GHz)Ethernet Ports1 × 10/100Mbps WAN/LAN2 × 10/100/1000Mbps (1 × WAN + 1 × LAN)PoE PowerPassive PoE (DC 54V/0.3A) & Active PoE (DC 48V)Active 802.3AT/AF & Passive PoE (DC 54V) · Adapter 100-240VWorking ModesRepeater / Router / AP / AP+RepeaterRepeater / AP (Fat & Fit) / Mesh Router / Mesh ExtenderMax. CoverageOutdoor 150mOutdoor 300m per unitMax. DevicesUp to 32 devices64–96 devices · Mesh up to 10 nodes (incl. host)Weatherproof RatingIP67 Waterproof & Heat-ResistantIP65 Waterproof & Heat-ResistantSurge Protection15KV ESD & 6KV Lightning Protection15KV ESD & 4KV Lightning ProtectionOperating Temp.-10°C ~ 50°C (-14°F ~ 122°F)-20°C ~ 50°C (-4°F ~ 122°F)Storage Temp.-30°C ~ 70°C (-22°F ~ 158°F)—Wireless SecurityWPA-PSK / WPA2-PSKWPA2-PSK, WPA1-PSK/WPA2-MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise, OpenLED IndicatorsPower × 1, WAN/LAN × 1, WiFi × 1, Signal × 37 × Status LED IndicatorsUnit Size (no antenna)18 × 5 × 5 cm / 7.1 × 2 × 2 in21.5 × 6.2 × 6.2 cm / 8.5 × 2.4 × 2.4 inAntenna Length25cm / 9.8in25cm / 9.8inCable LengthEthernet 100cm / 39.4in · Power Adapter 120cm / 47in—Best ForSimple, budget-friendly 2.4GHz coverage for gardens, small yards & single-building extensionHigh-density, multi-building & enterprise deployments — farms, ranches, resorts, 4K surveillance Coverage distance changes with the actual environment. The PoE converter is not waterproof — please install it indoors. SINGLE-BAND · 2.4GHzN300Model: 300Mbps|IP67|150m Outdoor Coverage⚡ Power Over EthernetIntegrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE — you can use and connect your own active switch.🛡️ IP67 Rated Weatherproof CaseThe IP67-rated weatherproof and heat-resistant enclosure ensures continued operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C / -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.🔄 Multiple Working ModesIt supports four working modes. Repeater mode extends the Wi-Fi coverage of an existing wireless network. Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.📡 Outdoor Access PointIt has a maximum coverage range of 150 meters, supports up to 32 devices, and provides 2.4GHz, 300Mbps, high-speed, and 100M Ethernet ports. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual environment.)📶 Single-Band Range ExtenderPowered by 802.11n Wi-Fi technology, you can enhance your existing wireless coverage even in single-band range, providing speeds of up to 300Mbps on the 2.4GHz band. This allows you to enjoy high-speed downloading of your games, videos, and other files even in public areas.📦 IN THE BOX — N3001 × N300 Outdoor Access Point
2 × 7dBi High-gain Antennas
1 × RJ-45 Ethernet Cable
1 × Power Adapter
1 × PoE Converter
1 × Main Body Holder
2 × Cable Ties
1 × Screw Fitting Kit
1 × Quick Start Guide💡 WARM TIPS 1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance. DUAL-BAND · 2.4GHz + 5GHz · MESHAC1200Model: 1200Mbps|IP65|300m Outdoor Coverage🚀 1200Mbps Dual-Band SpeedUse the WAVLINK WING 12HP to dominate bandwidth-heavy environments with split-scenario optimization. The 5GHz Band (867Mbps) is dedicated to 4K video surveillance feeds, while the 2.4GHz Band (300Mbps) handles 64–96 low-bandwidth IoT devices (smart irrigation sensors, RFID tags, POS systems) without congestion.🕸️ Blanket Every Acre with Mesh NetworkBuild a bulletproof WiFi blanket across vast homesteads with WAVLINK's Everything Mesh Technology. Seamlessly connect your farmhouse, barns, poultry coops, and distant irrigation hubs into one network. As you move from the kitchen to the yard, from the stable to the farm, enjoy uninterrupted connectivity without drops or lags.
Note: Max. 10 nodes supported (including the host device).📡 Industrial-Grade Signal DominancePowered by a high-power chip and 4 × 7dBi antennas (2 × 2.4GHz + 2 × 5GHz), this outdoor WiFi booster expands signal to 300m away per unit (changes with the actual environment), effortlessly linking barns, pastures, and farmhouse basements. Engineered for outdoor scenarios, it juggles 64–96 devices simultaneously — from GPS cattle collars and smart milking systems to 4K yard cams — without throttling.🔌 Dual Gigabit Ports & PoE FreedomEquipped with dual 10/100/1000Mbps Ethernet ports, the outdoor AP enables lightning-fast data transfer rates and provides an extra wired connection possibility for flexible use. 54V Active/Passive PoE allows you to power the device via Ethernet from 100m away, getting rid of risky outdoor wiring.
Note: The PoE converter is not waterproof, please install it indoors.🛡️ Weatherproof Enclosure & Enterprise-Grade SecurityIP65 waterproof & heat-resistant case ensures continued operation in harsh outdoor environments, withstanding broad ranges of temperature (-20°C ~ 50°C), while 15KV ESD / 4KV lightning protection prevents damage in electrical surges. Supporting WPA2/WPA3-MIX and WPA/WPA2-Enterprise, this outdoor router is perfect for businesses, organizations, and individuals requiring high-level security.🧩 Fat/Fit AP Mode FlexibilityUnder Fat AP Mode, the repeater works as a regular wireless AP, ideal for quick deployments without complex configurations. Fit AP Mode unlocks centralized control via a WAVLINK AC Controller (sold separately), allowing large-scale management — imagine updating firmware on multiple routers spanning 5,000-acre cattle ranches or balancing bandwidth for 10-villa eco-resorts from one dashboard.📦 IN THE BOX — AC12001 × AC1200 Wireless Outdoor Access Point
4 × Omni Antennas
1 × RJ-45 Networking Cable
1 × Power Adapter
1 × PoE Converter
1 × Main Body Holder
2 × Cable Ties
1 × Screw Fittings
1 × Quick Start Guide💡 WARM TIPS 1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance.
4. Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
5. Under Mesh Mode, the repeater supports max. 10 nodes (including the host device). Not sure which one fits your project? Choose N300 for straightforward 2.4GHz coverage on a budget — gardens, small yards and single-building extension.
Choose AC1200 for dual-band speed, Mesh scalability and enterprise-grade security — farms, ranches, resorts and multi-camera surveillance. USE THE DROPDOWN ABOVE TO SELECT YOUR MODEL
