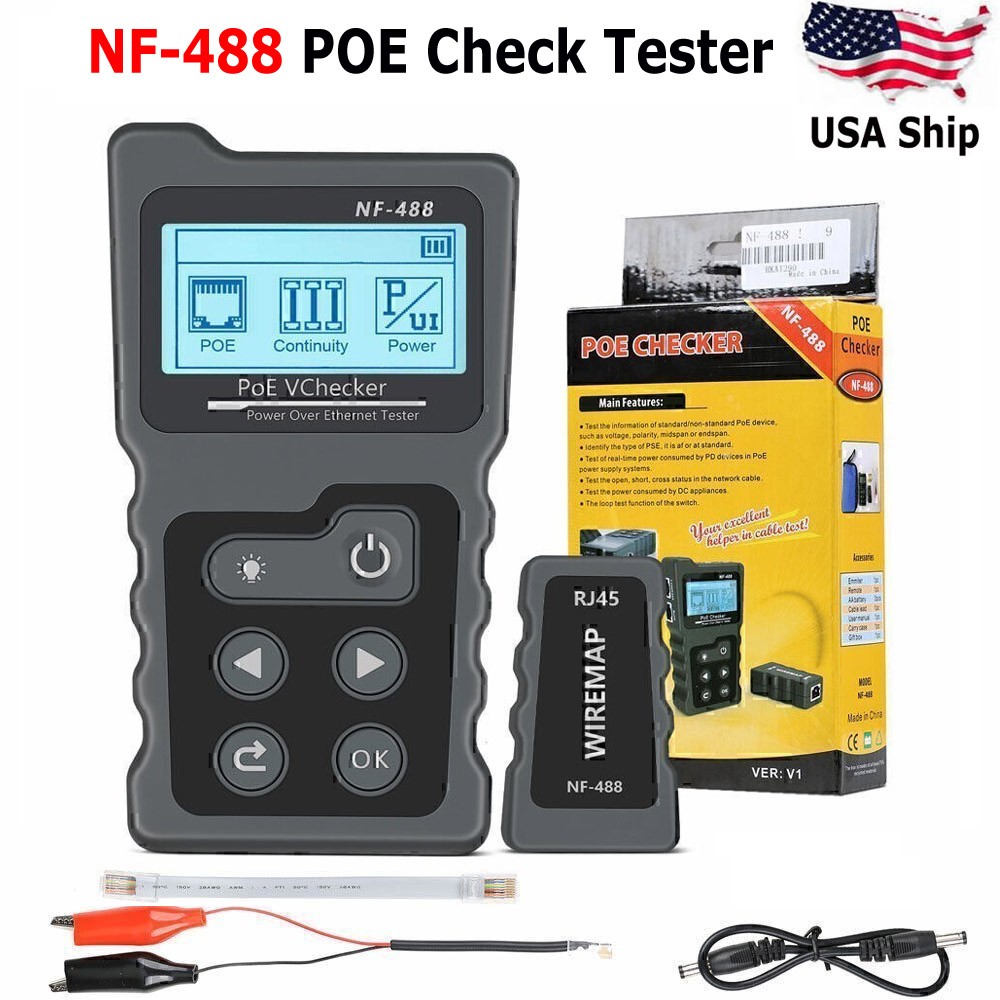

Product Description

Please Note:

If you need to return the item for some reasons, please contact us via message at the first time toget theRMA#,and return addressinstead of sending back directly without permission,thank you!

This itemonly shipped to United States.

Main Functions:

• Test the information of the standard/non-standard PoE device, such as voltage, polarity, mid-span or end-span.

• Test of real-time power consumed by PD devices in PoE power supply systems.

• Test the open, short, cross status in the network cable.

• Test the power consumed by DC appliances.

• The loop test function of the switch

• Test the voltage and current between the power adapter and the powered device, and calculate the power consumed by the powered device

LED lighting

• LED lights can be used at night or in dark environments to meet your testing needs in various Results as Below




  • Figure 1 shows, #12 is short-circuited, #45 is short-circuited

  • Figure 2 shows, #5 broken-circuited, #8 broken-circuited

  • Figure 3 shows, #18 crosses, #56 crosses

  • Figure 4 shows, Good Testing




    • Test the PoE information such as POE voltage, power supply polarity, power supply mode and the type of PSE(af or at standard).

    Loopback Testing




    • Automatically detects and diagnoses loopback issues and switches between 10M/100M/1000M modes

    Cable Continuity Testing




    • Automatically detect the short circuit, crossover and open circuit status of the network cable, which is convenient for accurately locating the line and port







    POE Function:

    Test Range

    DC 5-60V PoE Switch

    Standard Identify

    802.3af/at (Standard/Non-standard)

    Test Range Power

    0-18W

    Voltage Test Range

    DC 0-60V

    Current Test Range

    0-3A

    Power Test Screen, with Backlight

    Input Voltage Protection

    DC 48V, 5mA

    Maximum Working with 10M/100M Switch

    Power Supply

    3 x 1.5V AAA Battery




    Remote Mapping for Network Cable

    Input Voltage Protection

    DC 48V, 5mA

    Features

    Portable, Fine Workmanship, LCD Display

    Screen Size

    128mm x 64mm/5.04" x 2.52" (Approx.)

    Total Size

    14cm x 4cm x 2cm/5.51" x 1.57" x 0.79" (Approx.)




    Package List:

    1pc x emitter

    1pc x remote unit

    1pc x 2 crocodile clips cable with RJ45 plug

    2pcs x Ethernet cables

    1pc x connecting cable with round hole

    3pcs x
