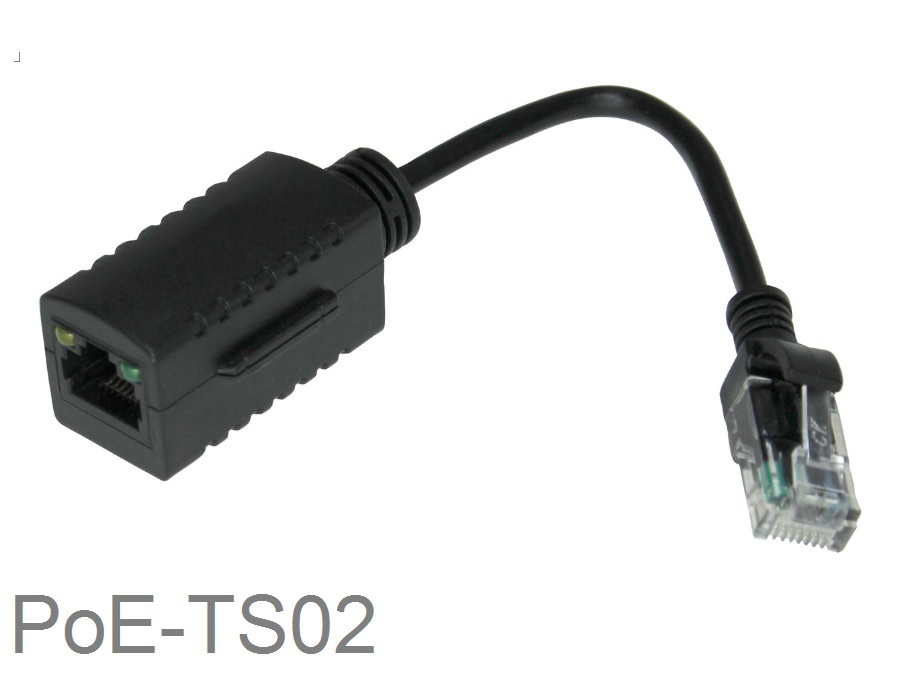

PoE Tester for Mid-Span, End-Span, 802.3af/at and Passive PoE, PoE-TS02
Price: US $11.35

PoE Tester for Mid-Span, End-Span, 802.3af/at and Passive PoE, PoE-TS02

This passively powered and portable PoE tester can differentiate between: mid-span (4/5, 7/8) PoE, end-span (1/2, 3/6 ) PoE, IEEE 802.3af/at PoE and passive PoE.Yellow light indicates End-span PoE (1/2, 3/6)
Green light indicates Mid-span PoE (4/5, 7/8)
Blinking light indicates Standards (802.3af / at) compliant PoE
Solid light indicates Passive PoE

Specifications:

  • Male and female RJ45 connectors for convenient testing
  • Ability to test ports or cables directly
  • Detects DC 24V-60V
  • Supports over-voltage with up to 63V protection
  • Passively powered and Portable


CablesOnline Part Number: POE-TS02
