for All Products ViewZ VZ-PVM-I4B3N 32 inch 1080p IP Public View Monitor / 2MP IP Camera / ONVIF S / IPS Panel Manufacturer:ViewZ SKU:VZ-PVM-I4B3N Condition:New Warranty:3 Years

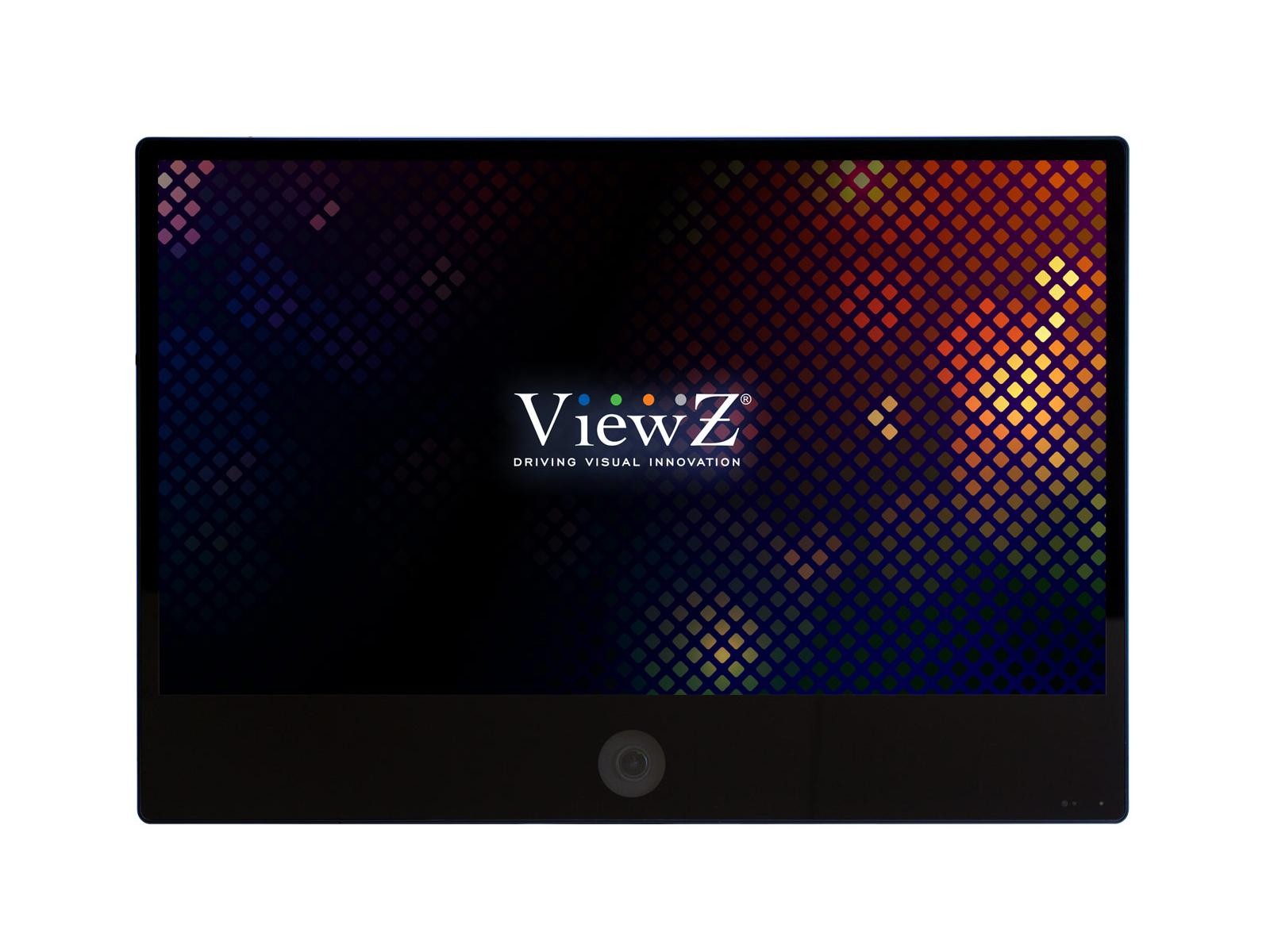

The 32 inch 1080p IP Public View Monitor is a dedicated commercial display combining a Full HD IPS screen and an integrated 2 megapixel IP camera. It is designed to deliver clear video playback and live monitoring in public environments while meeting ONVIF standards for network interoperability. The monitor supports multiple input sources and built-in speakers for complete single-unit deployments.
Key features include ONVIF Profile S compatibility, an IPS panel with wide 178 degree viewing angles, PIP/PBP multi display modes and a built-in 2MP camera with vari-focal lens. The unit offers 300 cd/m2 brightness, 1200:1 contrast ratio and a sub-8 ms response time to present smooth, readable images. Additional controls include camera motion-triggered source switching and auto power/source recovery.
Technical performance is driven by a 1920x1080 at 60Hz display and a SONY IMX322 image sensor paired with an Ambarella S233 encoder. The analog camera output supports up to 600 TV lines while the IP camera provides H.264 and MJPEG compression. Audio is handled by dual 5W speakers and the monitor operates under 50 W typical consumption.
Connectivity covers HDMI, VGA, composite BNC, 10/100 Base-T Ethernet, audio in/out and a DC12V camera power output. The monitor supports SD/SDHC and USB 2.0 external storage for media playback and is compatible with major web browsers and VMS/NVR systems via ONVIF 2.4. Multi-lingual OSD and IR remote control simplify local operation.
Typical applications include retail public view displays, visitor monitoring in lobbies and transit information screens where integrated camera monitoring is required. The unit"s camera motion detection and timed source switching enable automated workflows in high-traffic areas. Its protected glass face and wide viewing angles keep content legible for audiences across a room.
Installation and maintenance are straightforward with a 200mm x 200mm VESA mount, dual voltage support (AC 110-240V and 24V DC) and an included IR remote. The monitor is finished in black, includes protective glass over the IPS panel and is backed by a 3 year parts and labor warranty. These elements make it a practical single-unit solution when display and on-board monitoring must be Size32"Max. Resolution1920x1080 at 60HzPixel Pitch0.36375mm x 0.36375mmBrightness300cd/m2Contrast Ratio1200:1Aspect Ratio16:9Viewing Angle (H/V)178° / 178°Display Color16.7 MillionResponse Time<8 msVideo SystemNTSC/PALFrequency (H) / Frequency (V)30 ~ 84Khz / 50 ~ 75HzINTERFACEAV (Composite) In1Camera (CVBS) Out1HDMI In / VGA In (15Pin D-Sub)1/1Audio In/Out1/1Ethernet 10/1001DC12V Out (Camera Use)1SPECIAL FEATURESMulti Display FunctionPIP/PBPFilter Type3D Comb-filter / De-InterlaceAnalog Video Resolution (MAX)600 TV LineMulti-lingual LanguageEnglish, Spanish, French, Russian, PortugueseAUDIOBuilt in Speaker5Wx2DIMENSIONS & WEIGHTOutline Dimension (W x H x D)28.86" x 20.01" x 2.17"Outline Dimension (W x H x D)733.2mm x 508.3mm x 55.3mmNet Weight /Gross Weight33.06 lbs / 39.68 lbsMOUNTVESA200mm x 200mm / M6 x L8 ScrewsCAMERACamera Type2 Mega Pixel IP CameraImage Sensor / Encoder ChipsetSONY IMX322 / Amba S233LensDC Auto Iris 2.8~12mm Vari-focal LensTotal / Effect Pixel1920(H) x1080p(V) 30fpsVideo CompressionH.264, MJPEG, CBR, VBRVideo Out1ch CVBS (NTSC/PAL) / 1ch RJ-45 outputMotion DetectionSupportEthernet Port10/100 Base-TWeb ApplicationIE 6-11, FirefoxNetwork ProtocolTCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSPIntegration ProtocolONVIF 2.4Function2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog D/N, WDR, AGC, AWBMEDIA CARC ( Optional )External StorageSD/SDHC CARD, USB 2.0 HOSTOutputHDMI 1080p / Audio L/R, HDMIVIDEO FormatRM, RMVB, AVI, DIVX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4VIDEO Resolution1080P at 60HzAUDIO FormatMPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCMImage FormatJPEG, TIF, PNG, BMPVIDEO Play ControlAUTO, REPEAT, ZOOM, RESUME, TIMEGENERALTransmitter - IR Remote ControlYESPower Electrical Ratings ConsumptionAC 110~240V (50/60Hz) | 24V DC / 4A; < 50 WWarranty Parts/ Labor MTBF (Approx.)3 Year/3 Year; 50,000 HoursOperating Temperature32-104°F / 0-40°CRegulationcUL, FCC(A), CECompatible Mounts Wall CeilingWall: VZ-WM50, VZ-AM02 / Ceiling: VZ-CMKiT-01, VZ-CMKiT-02 OUR PERKS Great Prices and
