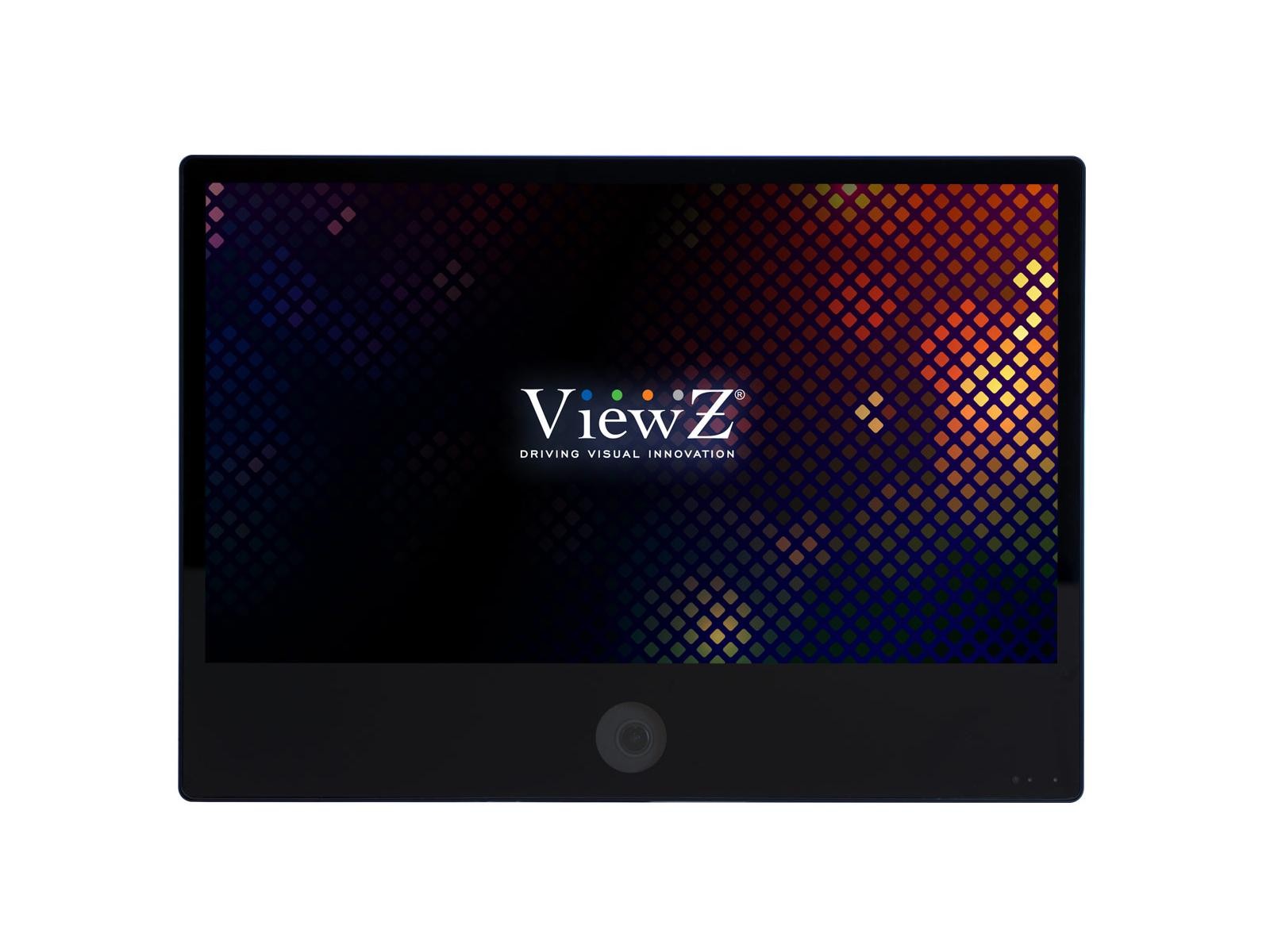

for All Products ViewZ VZ-PVM-I3B3N 27 inch 1920x1080 IP Public View Monitor / 2MP IP Camera / ONVIF Profile S / IPS Manufacturer:ViewZ SKU:VZ-PVM-I3B3N Condition:New Warranty:3 Years
The ViewZ 27 inch IP Public View Monitor combines a full HD 1920x1080 display with an integrated 2 megapixel IP camera to deliver a single, compact solution for public-facing and monitoring applications. This monitor is ONVIF Profile S compliant to ensure interoperability with industry standard NVRs and VMS platforms. The display uses an IPS panel and protective glass to maintain wide viewing angles and durable operation in public environments.
Key features include a native 1080p resolution at 60Hz, an integrated SONY IMX322 sensor camera with vari-focal lens, and multi-display modes such as PIP and PBP for simultaneous source viewing. The unit supports both H.264 and MJPEG compression and provides camera features including motion detection and a variety of image enhancements. A built-in speaker pair and audio I/O deliver local audio capability for announcements or alerts.
Performance specifications include 300 cd/m2 typical brightness, 3000:1 contrast ratio, 16.7 million display colors and a response time under 12 ms. The camera captures 1920(H) 1080p(V) at 30 fps and supports CBR/VBR profiles. Viewing angles are 178° horizontal and 178° vertical for consistent image quality across large crowds or angled installations.
Connectivity covers composite BNC (NTSC/PAL), HDMI, VGA, RJ-45 10/100 network, audio in/out and DC12V camera power out. The monitor offers web application access and supports common network protocols including TCP/IP, RTSP and FTP to integrate with existing infrastructure. External storage options include SD/SDHC and USB 2.0 host for localized media playback.
This PVM is appropriate for retail kiosks, transportation stations, correctional facility public view areas and security reception points where a monitored public display is needed. The integrated camera and ONVIF support reduce cabling and simplify system architecture while maintaining centralized recording options. Dual voltage support and auto power/source recovery help maintain continuous operation in mission-critical deployments.
Installation is simplified with compatible wall and ceiling mount options and an IR remote for local control. The unit supports AC 110~240V and 24V DC input and consumes under 46 W in normal operation. ViewZ backs the monitor with a 3 year parts and labor warranty and an approximate MTBF of 50,000 hours for long-term Size27"Max. Resolution1920x1080 at 60HzPixel Pitch0.31125 mm x 0.31125 mmBrightness300 cd/m2 (Typical)Contrast Ratio3000:1Aspect Ratio16:9Viewing Angle (H/V)178° / 178°Display Color16.7 MillionResponse Time<12 msVideo ~ 84 kHz / 50 ~ 75 HzINTERFACEAV (Composite) In1Camera (CVBS) Out1HDMI In / VGA In (15Pin D-Sub)1 / 1Audio In/Out1 / 1Ethernet 10/1001DC12V Out (Camera Use)1SPECIAL FEATURESMulti Display FunctionPIP / PBPFilter Type3D Comb-filter, De-InterlaceAnalog Video Resolution (MAX)600 TV LineMulti-lingual LanguageEnglish, Spanish, French, Russian, PortugueseAUDIOBuilt in Speaker5W x 2DIMENSIONS & WEIGHTOutline Dimension (W x H x D)25.07" x 17.93" x 2.17"636.8mm x 455.60mm x 55.3mmNet Weight /Gross Weight28.66 lbs / 33.06 lbsCAMERACamera Type2 Mega Pixel IP CameraImage Sensor / Encoder ChipsetSONY IMX322 / Amba S233LensDC Auto Iris 2.8~12mm Vari-focal LensTotal / Effect Pixel1920(H) xl080p(V) 30fpsVideo CompressionH.264, MJPEG, CBR, VBRVideo OutIch CVBS (NTSC/PAL) / Ich RJ-45 outputMotion DetectionSupportEthernet Port10/100 Base-TWeb ApplicationIE 6" 11, FirefoxNetwork ProtocolTCP/IP, UDP, SMTP, HTTP, FTP, PPPOE DHCP, DNS, DDNS, UPNP, RTP, RTSPIntegration ProtocolONVIF 2.4 (supported)Function2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog D/N, WDR, AGC, AWBMEDIA CARC ( Optional )External StorageSupport SD/SDHC CARD, USB 2.0 HOSTOutputVIDEO - HDMI(1080p) / AUDIO - L/R, HDMIVIDEO FormatRM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4VIDEO Resolution1080P at 60HzAUDIO FormatMPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCMImage FormatJPEG, TIF, PNG, BMPVIDEO Play ControlAUTO, REPEAT, ZOOM, RESUME, TIMEGENERALTransmitter - IR Remote ControlYESPower Electrical Ratings ConsumptionAC 110~240V (50/60Hz) | 24V DC / 3A | <46 WWarranty Parts/ Labor MTBF (Approx.)3 Year/3 Year, 50,000 HoursOperating Temperature32-104°F / 0-40°CRegulationcUL, FCC(A), CECompatible Mounts Wall CeilingVZ-WM50, VZ-AM02 VZ-CMKiT-01, VZ-CMKiT-02 OUR PERKS Great Prices and
