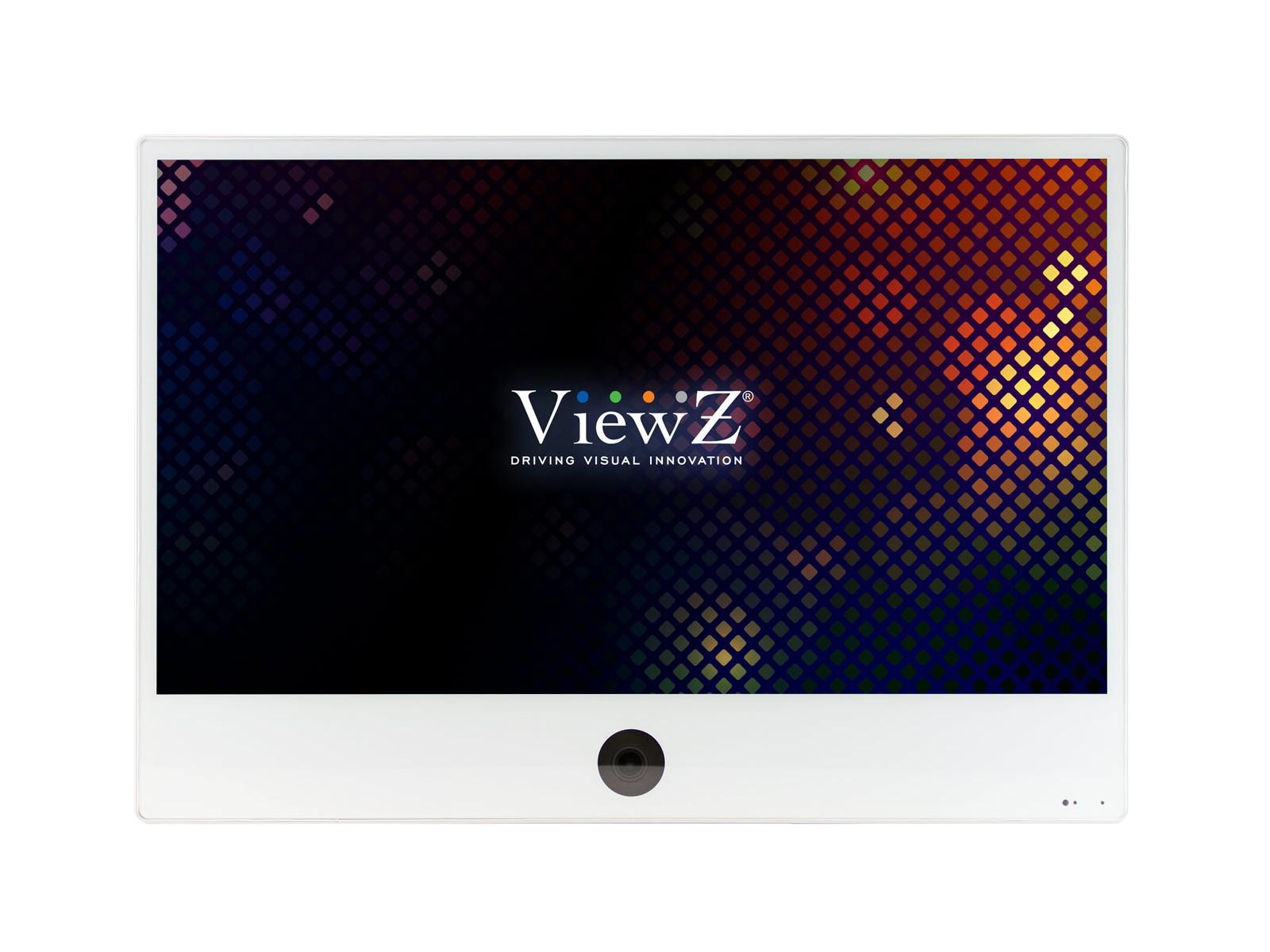

for All Products ViewZ VZ-PVM-I4W3N 32 inch 1920x1080 IP Public View Monitor / 2MP IP Camera / IPS / HDMI / RJ45 Manufacturer:ViewZ SKU:VZ-PVM-I4W3N Condition:New Warranty:3 Years
The 32 inch 1920x1080 IP Public View Monitor is a full HD display that combines a commercial-grade IPS panel and an integrated 2 megapixel IP camera. It is designed to provide clear public-view monitoring and evidence capture in a single enclosure. The unit supports ONVIF Profile S ensuring compatibility with industry VMS and NVR platforms.
Key features include a 1920x1080 at 60Hz resolution, 300 cd/m2 typical brightness and a 1200:1 contrast ratio for natural images. The built-in SONY IMX322 image sensor and Amba S233 encoder deliver 2MP IP streaming and support H.264 and MJPEG compression. The monitor also supports PIP and PBP multi-display presentation and analog video up to 600 TV lines.
Performance highlights include an IPS panel with 178°/178° viewing angles, <8 ms response time and 16.7 million display colors for accurate color reproduction. The integrated camera offers a DC auto-iris 2.8~12mm vari-focal lens and motion detection for automated scene switching. Video functions include 2D/3D noise reduction, WDR, HLC/BLC, defog and advanced gain and white balance controls.
Connectivity covers HDMI, VGA, composite BNC, RJ-45 10/100 Ethernet, audio in/out and a DC12V camera power output. The monitor supports network protocols including TCP/IP, RTSP, RTP, HTTP, FTP and DDNS and integrates via ONVIF 2.4. It also supports external storage via SD/SDHC card or USB 2.0 host and offers HDMI output for external recording or display.
Typical applications include retail public view monitoring, queuing and service counters, transportation kiosks and reception areas where discreet on-screen capture and display are required. The monitor’s protective front glass and commercial grade LED panel are suitable for continuous operation in public-facing environments. Multilingual OSD and on-screen controls simplify local configuration and operation.
Installation is straightforward - the display supports VESA 200mm x 200mm mounting and dual-voltage power operation from AC 110~240V or 24V DC. Auto power and source recovery reduce maintenance after outages and the unit ships with a 3 year parts and labor warranty. The white enclosure and slim 55.3mm depth allow for neat integration into counters or wall mounts while maintaining professional build Size32"Max. Resolution1920x1080 at 60HzPixel Pitch0.36375mm x Ratio1200:1Aspect Ratio16:9Viewing Angle (H/V)178° /178°Display Color16.7 MillionResponse Time<8 msVideo SystemNTSC/PALFrequency (H) / Frequency (V)30 ~ 84Khz / 50 ~ 75HzINTERFACEAV (Composite) In1Camera (CVBS) Out1HDMI In / VGA In (15Pin D-Sub)1/1Audio In/Out1/1Ethernet 10/1001DC12V Out (Camera Use)1SPECIAL FEATURESMulti Display FunctionPIP/PBPFilter Type3D Comb-filter / De-InterlaceAnalog Video Resolution (MAX)600 TV LineMulti-lingual LanguageEnglish, Spanish, French, Russian, PortugueseAUDIOBuilt in Speaker5Wx2DIMENSIONS & WEIGHTOutline Dimension (W x H x D)28.86" x 20.01" x 2.17"Outline Dimension (W x H x D) (mm)733.2mm x 508.3mm x 55.3mmNet Weight /Gross Weight33.06 lbs ( 15.00 kg ) / 39.68 lbs ( 18.0 kg )MOUNTVESA200mm x 200mm / M6 x L8 ScrewsCAMERACamera Type2 Mega Pixel IP CameraImage Sensor / Encoder ChipsetSONY IMX322 / Amba S233LensDC Auto Iris 2.8~12mm Vari-focal LensTotal / Effect Pixel1920(H) xl080p(V) 30fpsVideo CompressionH.264, MJPEG, CBR, VBR supportVideo OutIch CVBS (NTSC/PAL) / Ich RJ-45 outputMotion DetectionSupportEthernet Port10/100 Base-TWeb ApplicationIE 6" 11, FirefoxNetwork ProtocolTCP/IP, UDP, SMTP, HTTP, FTP, PPPOE DHCP, DNS, DDNS, UPNP, RTP, RTSPIntegration ProtocolONVIF 2.4 (supported)Function2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog D/N, WDR, AGC, AWBMEDIA CARC ( Optional )External StorageSupport SD/SDHC CARD, USB 2.0 HOSTOutputVIDEO - HDMI(1080p) / AUDIO - L/R, HDMIVIDEO FormatRM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4VIDEO Resolution1080P at 60HzAUDIO FormatMPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCMImage FormatJPEG, TIF, PNG, BMPVIDEO Play ControlAUTO, REPEAT, ZOOM, RESUME, TIMEGENERALTransmitter - IR Remote ControlYESPower Electrical Ratings ConsumptionAC 110~240V (50/60Hz) | 24V DC / 4A | < 50 WWarranty Parts/ Labor MTBF (Approx.)3 Year/3 Year, 50,000 HoursOperating FCC(A), CECompatible Mounts Wall CeilingVZ-WM50, VZ-AM02, VZ-CMKiT-01, VZ-CMKiT-02 OUR PERKS Great Prices and
